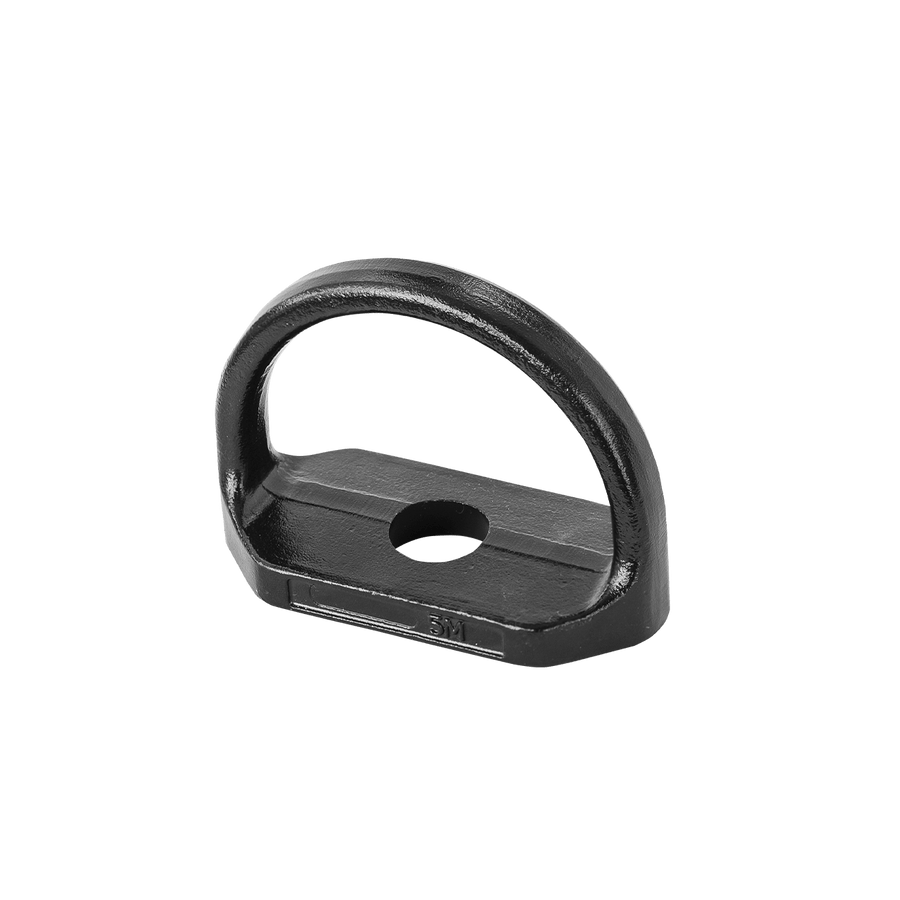

Ironworkers Bolt-on D-Ring Anchor with 13/16" Hole, 20/pk

Name: Fall Tech
Address: 1306 S. Alameda St., Compton, CA 90221, Compton, CA, 90221, US
Telephone: (800) 719-4619

Contact Sales

Built for steel erection and ironwork applications, this forged D-ring anchor delivers a durable temporary or permanent tie-off solution for structural steel connections.

Downloads

Instruction Manual

Declaration of Conformity (ANSI)

Spec Sheet

Compliant With:

ANSI Z359.18-2017

OSHA 1926.502 and 1910.140

SKU:: 7439A20
UPC:: 848013030610
Relevant Standards 1:: ANSI Z359.18-2017
Filter - OSHA:: OSHA Compliant
Performance 2 Detail:: 130 to 310 lb max.
Descriptor 1:: Bolt-on Installation
Filter - Application:: Reusable
Product Type:: Fixed D-ring
Filter - Primary Material:: Plated Alloy Steel
Relevant Standards 2:: OSHA 1926.502 and 1910.140
Performance 3 Detail:: 130 to 425 lb max.
Other Items You May Need:: 8354LEYSS3D, 8144QC, 8143, 620060R
Performance 2 Header:: ANSI User Capacity
Performance 1 Header:: Static Strength
Filter - ANSI:: ANSI Compliant
category tier 2:: Steel
Performance 3 Header:: OSHA User Capacity
1st Bullet:: Features large 2-1/4" x 3-1/4" internal dimension for easy connection
Filter - Anchor Type:: Bolt-on/Weld-on
Family Group:: Ironworkers Bolt-on D-Ring Anchor
5th Bullet:: Sold as 20-pack only
Similar Solutions:: 74946, 7414, 7435, 7408
Descriptor 2:: For steel structures
Material 1 Header:: Bolt-on Anchor

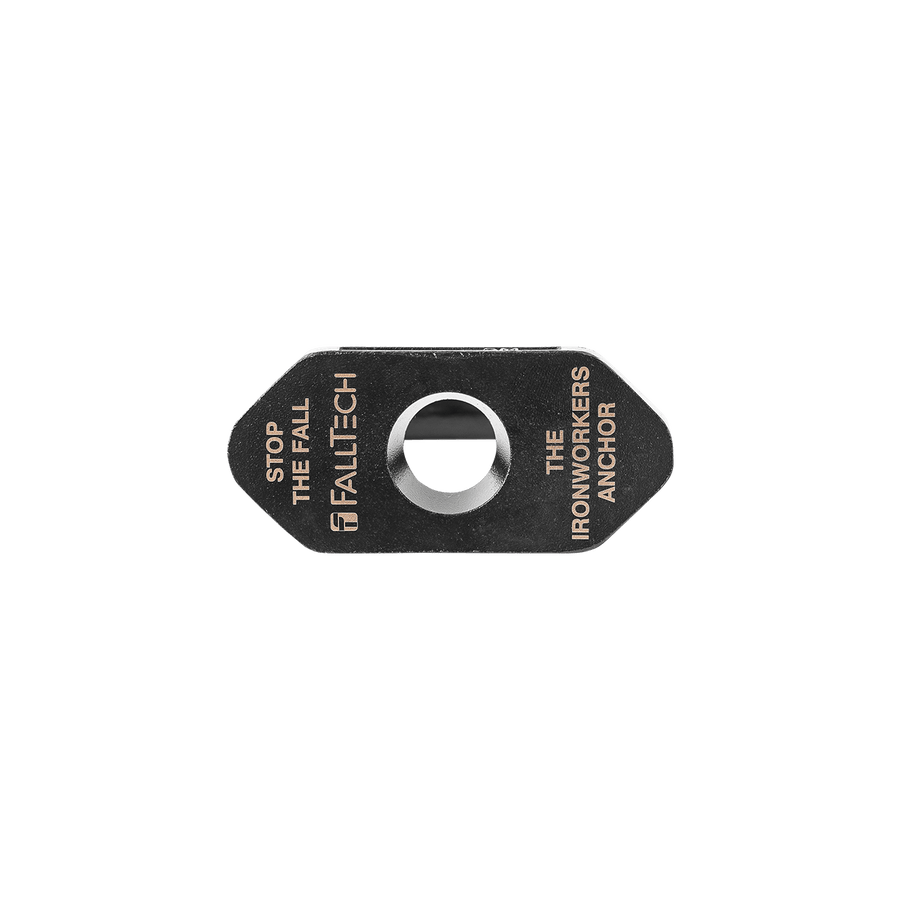

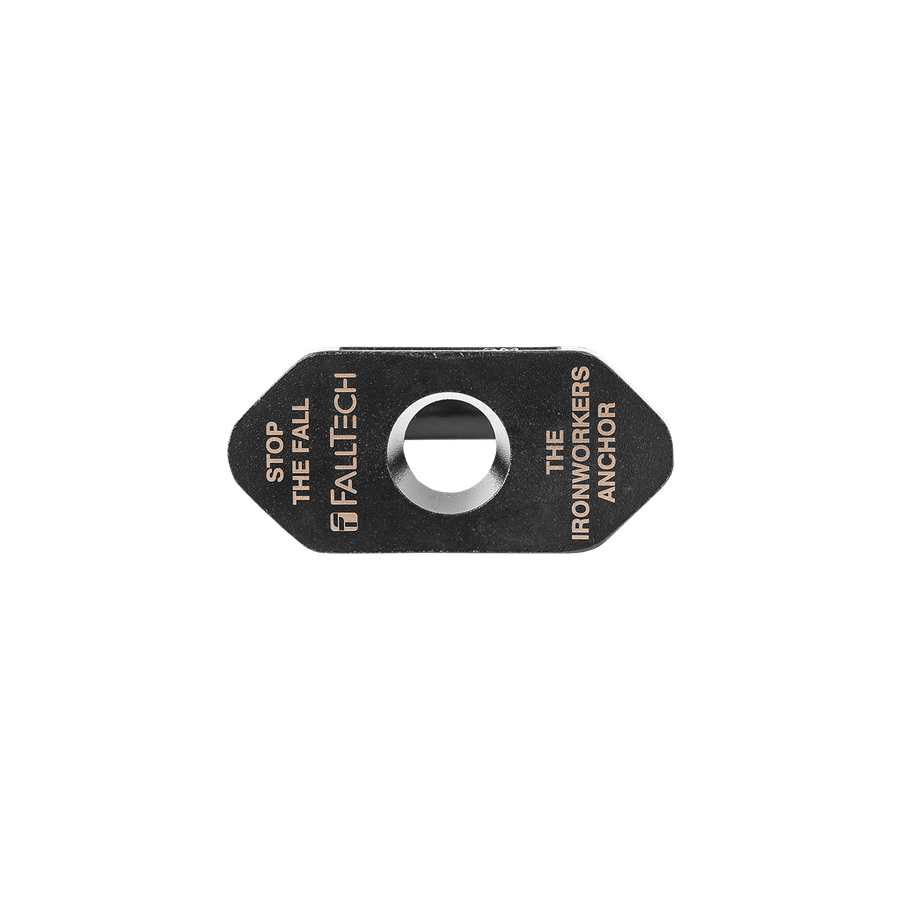

2nd Bullet:: Solid one-piece forged construction with 13/16" countersunk bolt hole
4th Bullet:: Complies with ANSI Z359.18-2017
Material 1 Detail:: Plated alloy steel
3rd Bullet:: For temporary or permanent installation to steel structures with user-supplied fasteners
Performance 1 Detail:: 5,000 lb min.
