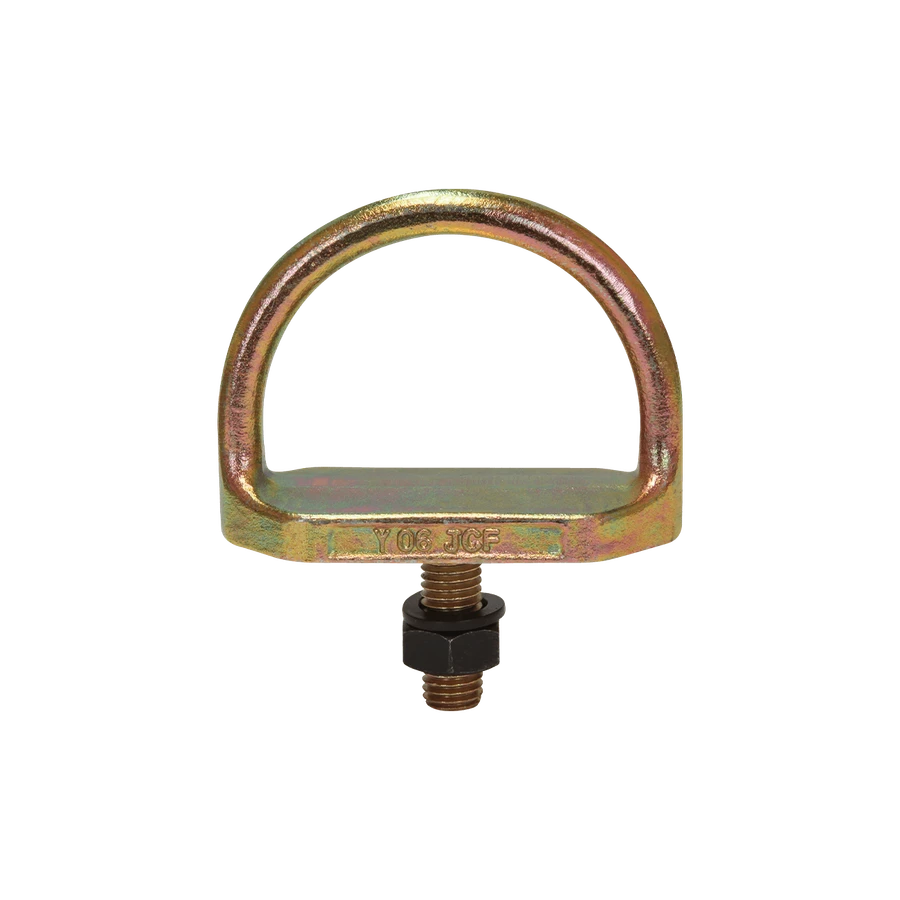

Bolt-on D-ring Anchor with Stud and Nut

Name: Fall Tech
Address: 1306 S. Alameda St., Compton, CA 90221, Compton, CA, 90221, US
Telephone: (800) 719-4619

Contact Sales

This forged D-ring anchor provides a durable permanent tie-off point for steel structures, delivering reliable connection performance across a wide range of fall protection applications.

Downloads

Instruction Manual

Declaration of Conformity (ANSI)

Spec Sheet

Compliant With:

ANSI Z359.18-2017

OSHA 1926.502 and 1910.66

SKU:: 7435
UPC:: 848013081919
Filter - Application:: Permanent
Performance 2 Header:: ANSI User Capacity
Similar Solutions:: 7435H, 7414, 7393S
Performance 3 Header:: OSHA User Capacity
2nd Bullet:: Solid one-piece forged construction with threaded stud and Grade 8 nut.
Performance 1 Detail:: 5,000 lb min.
Performance 1 Header:: Static Strength
Filter - Primary Material:: Plated Alloy Steel
Other Items You May Need:: 7082B, 8366, 82710SC1
Performance 2 Detail:: 130 to 310 lb max.
Filter - ANSI:: ANSI Compliant
Performance 3 Detail:: 130 to 425 lb max.
Relevant Standards 1:: ANSI Z359.18-2017
Descriptor 1:: Bolt-on Installation
Material 1 Header:: Bolt-on Anchor
Family Group:: Steel Anchorage
Relevant Standards 2:: OSHA 1926.502 and 1910.66
Material 1 Detail:: Plated alloy steel
1st Bullet:: Features large 2-1/4" x 3-1/4" internal dimension for easy connection
Descriptor 2:: For steel structures
Filter - Anchor Type:: Bolt-on/Weld-on
category tier 2:: Steel
3rd Bullet:: For permanent installation to steel structures with 7/8" max. thickness
4th Bullet:: Complies with ANSI Z359.18-2017
Product Type:: Fixed D-ring
Filter - OSHA:: OSHA Compliant
Instruction Manual:: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/instruction_manuals/MANC06.1_112213.pdf
Declaration of Conformity (ANSI):: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/declarations_of_conformity/A1217040a_DOC.pdf
BC Status:: Yes
Related Products:: 7435H,7414,7393S,7082B,8366,82710SC1
BC Category:: 126
