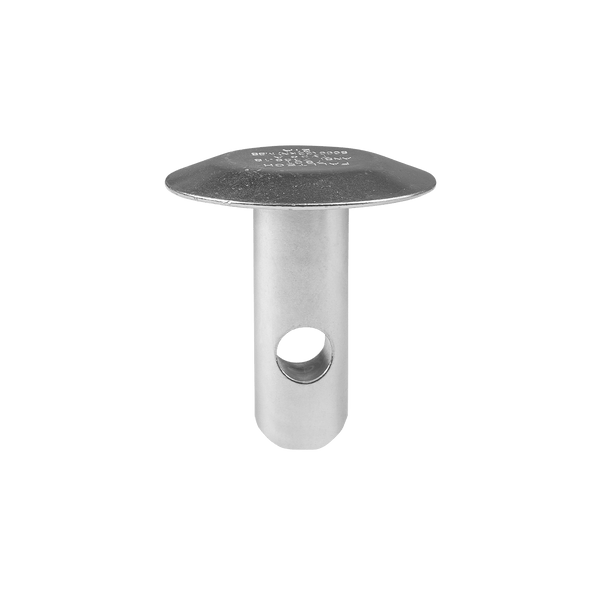

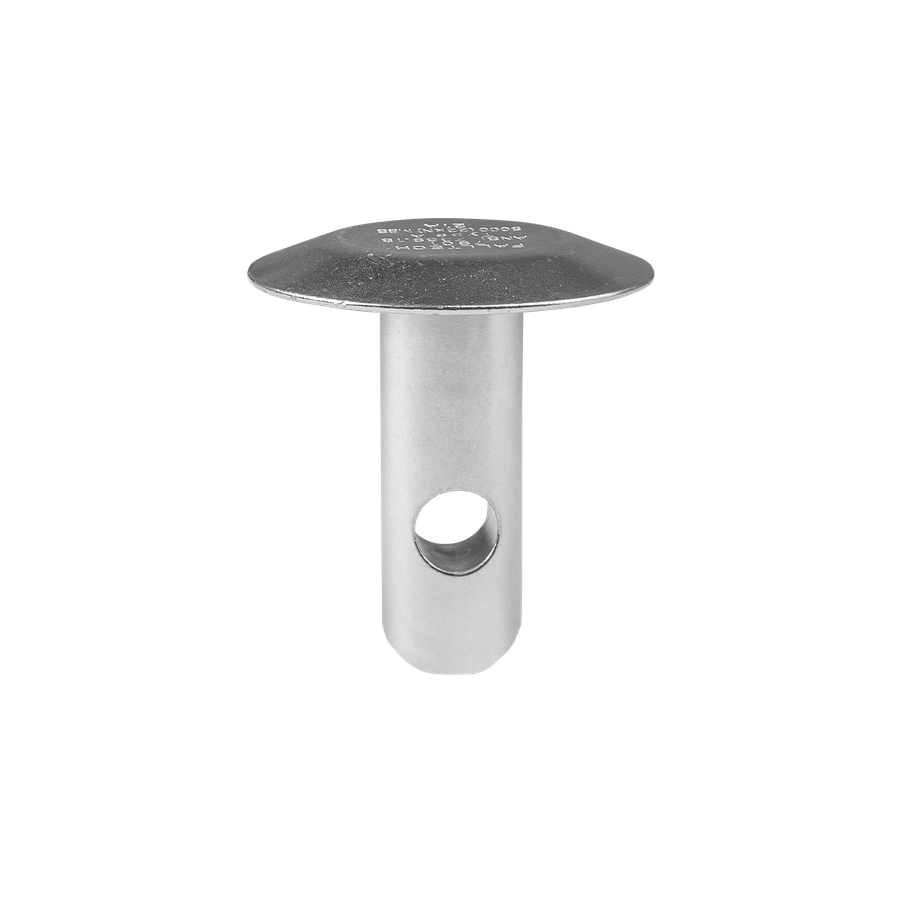

Drop-In Anchor for Steel, 30/pk

Name: Fall Tech
Address: 1306 S. Alameda St., Compton, CA 90221, Compton, CA, 90221, US
Telephone: (800) 719-4619

Contact Sales

This reusable steel anchor provides a fast temporary tie-off solution for steel structures and overhead anchorage applications, including horizontal lifeline system setups.

Product Overview

Downloads

Instruction Manual

Declaration of Conformity (ANSI)

Spec Sheet

Compliant With

ANSI Z359.18-2017

OSHA 1926.502 and 1910.66

SKU:: 790130
UPC:: 848013095749
Filter - Application:: Reusable
Filter - OSHA:: OSHA Compliant
Performance 2 Header:: OSHA User Capacity
Similar Solutions:: 74946, 7414, 7435, 7408
Performance 3 Header:: ANSI User Capacity
2nd Bullet:: Requires 1" +/- 1/16" hole diameter
Performance 1 Detail:: 5,000 lb min.
Performance 1 Header:: Static Strength
1st Bullet:: Features forged eye connection point for 7/16" size shackle
Other Items You May Need:: 8354LEYSS3D, 8144QC, 8143, 620060R
Performance 2 Detail:: 130 to 425 lb max.
Filter - ANSI:: ANSI Compliant
Performance 3 Detail:: 130 to 310 lb max.
Relevant Standards 1:: ANSI Z359.18-2017
Descriptor 1:: Drop-through Installation
Material 1 Header:: Plated forged alloy steel
Relevant Standards 2:: OSHA 1926.502 and 1910.66
Material 1 Detail:: Drop-In Anchor
Descriptor 2:: For steel structures
Product Type:: Drop-In Anchor
Family Group:: Steel Anchorage
Filter - Anchor Type:: Drop-through
4th Bullet:: For temporary use in steel structures, including I-beams for catenary line anchorage systems
category tier 2:: Steel
3rd Bullet:: Zinc plated forged alloy steel construction
5th Bullet:: Complies with ANSI Z359.18-2017
