100' Temporary Rope HLL System; 2-person with Kernmantle Rope

Name: Fall Tech
Address: 1306 S. Alameda St., Compton, CA 90221, Compton, CA, 90221, US
Telephone: (800) 719-4619

Contact Sales

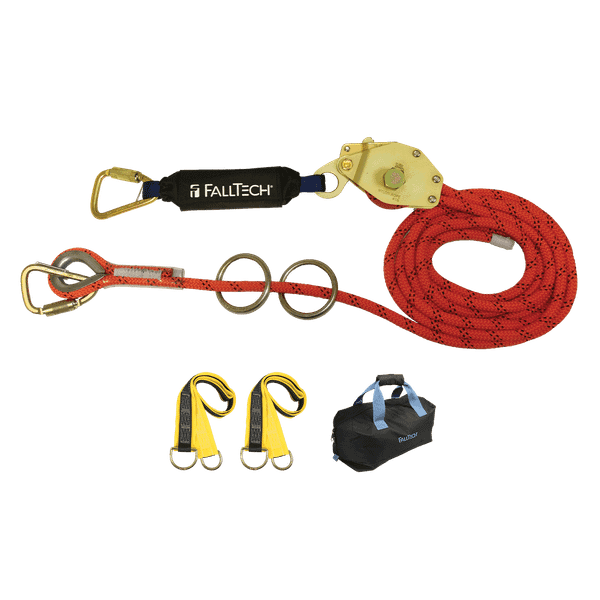

This temporary horizontal lifeline system provides fast, dependable fall protection for two workers. The kernmantle rope and included anchors, connectors, and tensioner support quick setup across a wide range of temporary work areas.

Product Overview

Downloads

Instruction Manual

Declaration of Conformity (OSHA)

Sell Sheet

Spec Sheet

Compliant With

OSHA 1926.502 and 1910.66

SKU:: 771002K
UPC:: 848013078988
Material 2 Detail:: Polyester webbing with plated alloy steel D-rings; 5,000 lb min. static strength
Filter - Length:: 100'
Similar Solutions:: 77302K, 77602K, 772030, 770003, 770006, 770001
Material 2 Header:: Sling Anchors
2nd Bullet:: Plated steel line tensioner features integrated energy absorber with carabiner.
Family Group:: Rope HLL
Performance 1 Header:: Static Strength
3rd Bullet:: Also includes 2 pass-through anchors, 2 connecting rings, additional carabiner and storage bag
1st Bullet:: Features 11/16" solid-core nylon kernmantle rope with one sewn and thimbled end-termination
Other Items You May Need:: 7493A, 7432, 7035QC, 7081, 8240, 8259
Performance 2 Detail:: 310 lb max. per user; 2 users max.
Filter - OSHA:: OSHA Compliant
Material 5 Header:: Energy Absorber
Material 5 Detail:: Polyester tear-away
Material 3 Header:: Carabiners
Relevant Standards 1:: OSHA 1926.502 and 1910.66
parent part number:: 77302K
Descriptor 1:: 100' Nylon kernmantle rope
Material 1 Header:: Rope
Filter - Lifeline Material:: Synthetic Rope
Material 1 Detail:: 11/16" braided 32-strand solid-core nylon kernmantle; 5,000 lb min.
Material 3 Detail:: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
Descriptor 2:: Includes sling anchors
Product Type:: 2-Person System
category tier 2:: Horizontal Lifelines
Performance 1 Detail:: 5,000 lb min.
4th Bullet:: Meets OSHA 1926.502 and 1910.66 regulations
Material 4 Detail:: Plated alloy steel; 5,000 lb min. static strength
Performance 2 Header:: OSHA User Capacity
Material 4 Header:: Tensioner and Connecting Rings
Instruction Manual:: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/instruction_manuals/MHLL04_Rev_D_021623_EN_ES.pdf
Declaration of Conformity (OSHA):: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/declarations_of_conformity/104b98aa3ea62dfc9a7752b557e9737a50cd7b3c.pdf
Sell Sheet:: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/sell_sheets/Kernmantle_HLL_Sell_Sheet_2017.pdf
Size 1:: 77302K - 30'
Size 2:: 77602K - 60'
Size 3:: 771002K - 100'
BC Status:: Yes
Related Products:: 77302K,77602K,772030,770003,770006,770001,7493A,7432,7035QC,7081,8240,8259
BC Category:: 126
