100' Temporary Rope HLL System; 2-person Hollow-core Polyester Rope

Name: Fall Tech
Address: 1306 S. Alameda St., Compton, CA 90221, Compton, CA, 90221, US
Telephone: (800) 719-4619

Contact Sales

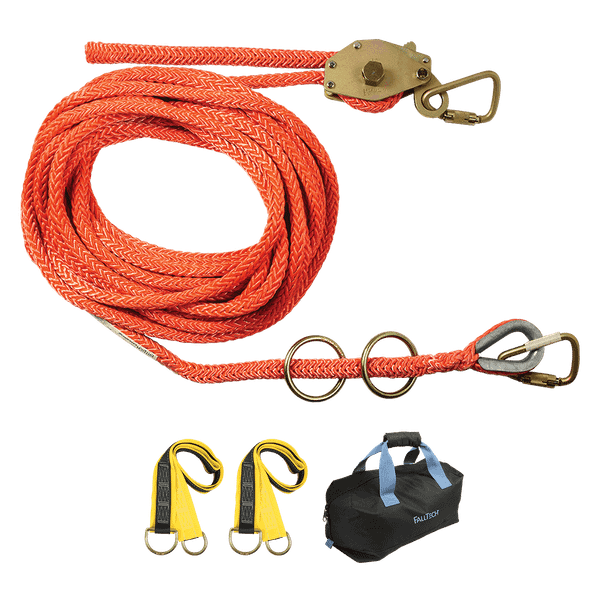

This temporary horizontal lifeline system provides fast, dependable fall protection for two workers. The low-stretch hollow-core rope and included anchors, connectors, and tensioner support quick setup across a wide range of temporary work areas.

Product Overview

Downloads

Instruction Manual

Spec Sheet

Compliant With

OSHA 1926.502 and 1910.66

SKU:: 770001
UPC:: 848013049902
Material 2 Detail:: Polyester webbing with plated alloy steel D-rings; 5,000 lb min. static strength
Filter - Length:: 100'
Performance 2 Header:: OSHA User Capacity
Similar Solutions:: 772030, 77302K, 770006, 770001, 77602K, 771002K
Material 2 Header:: Sling Anchors
2nd Bullet:: Includes plated steel line tensioner and 2 installation carabiners.
Performance 1 Detail:: 5,000 lb min.
Performance 1 Header:: Static Strength
1st Bullet:: Features 5/8" low-stretch hollow-core polyester rope with one braided and thimbled end-termination
Material 4 Header:: Tensioner and Connecting Rings
Filter - Lifeline Material:: Synthetic Rope
Product Type:: 2-Person System
Relevant Standards 1:: OSHA 1926.502 and 1910.66
parent part number:: 770003
Descriptor 1:: 100' Polyester hollow-core rope
category tier 2:: Horizontal Lifelines
Material 1 Header:: Rope
Performance 2 Detail:: 310 lb max. per user; 2 users max.
Other Items You May Need:: 7035QC, 7081, 8240, 8259, 7493A, 7432
Material 1 Detail:: 5/8" braided 12-strand hollow-core polyester; 5,000 lb min.
Material 4 Detail:: Plated alloy steel; 5,000 lb min. static strength
Descriptor 2:: Includes sling anchors
Material 3 Header:: Carabiners
Family Group:: Rope HLL
3rd Bullet:: Also includes 2 pass-through anchors and 2 connecting rings
4th Bullet:: Meets OSHA 1926.502 and 1910.66 regulations
Filter - OSHA:: OSHA Compliant
Material 3 Detail:: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
Instruction Manual:: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/instruction_manuals/2_Person_HLL_Manual.pdf
BC Status:: Yes
Related Products:: 772030,77302K,770006,770003,77602K,771002K,7035QC,7081,8240,8259,7493A,7432
Size 1:: 770003 - 30'
Size 3:: 770001 - 100'
BC Category:: 126
