Rotating SRL Cradle Anchor

Name: Fall Tech
Address: 1306 S. Alameda St., Compton, CA 90221, Compton, CA, 90221, US
Telephone: (800) 719-4619

Contact Sales

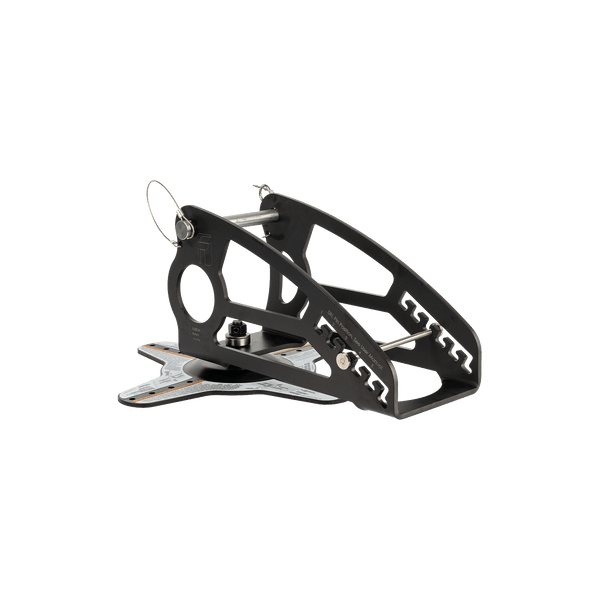

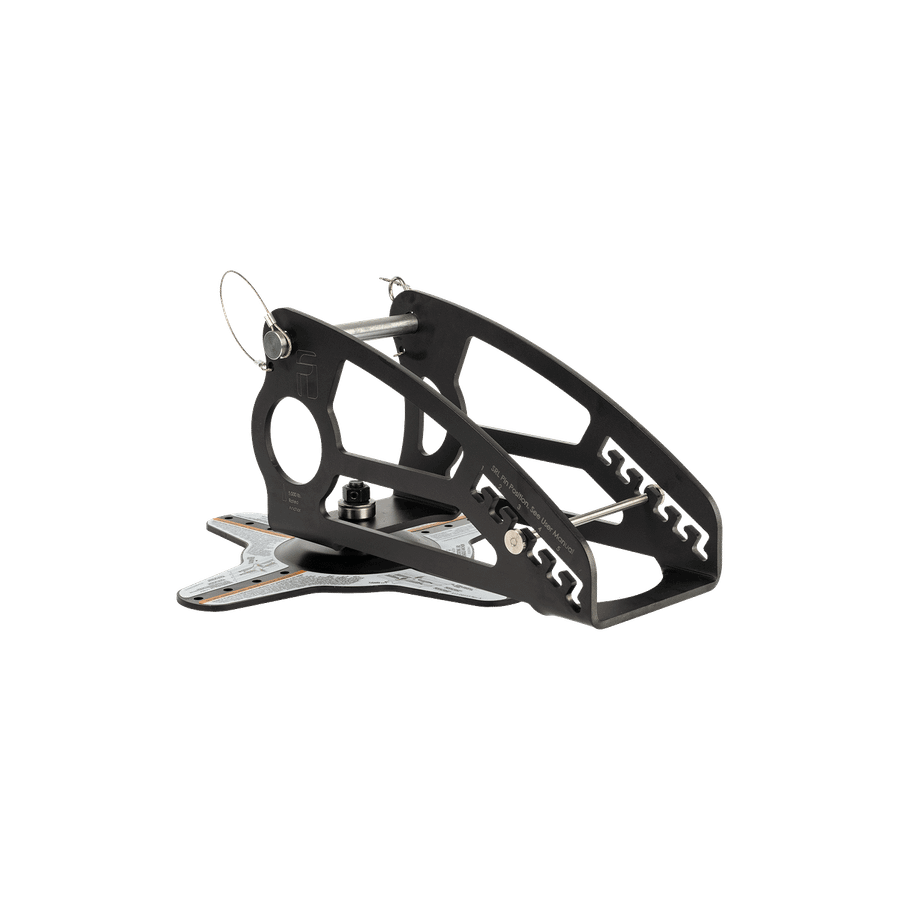

This permanent anchor features a 360° rotating SRL cradle that improves worker mobility and reduces lifeline twisting. Its low-profile design installs easily on wood, steel decking, and metal roofing while supporting a wide range of compatible SRLs.

Downloads

Instruction Manual

Declaration of Conformity (ANSI)

Sell Sheet

Spec Sheet

Compliant With:

SKU:: 7396
UPC:
Filter - Application:: Reusable
Material 1 Detail:: Plated Alloy Steel
1st Bullet:: 10" x 10" anchoring base plate with adjustable cradle that gives you a solid connection point and secure installation.
Filter - Anchor Type:: Rotating SRL
Descriptor 1:: Reusable for wood and steel
Family Group:: Rotating SRL Cradle Anchor
5th Bullet:: Installs easily on wood roofs, steel decking, and Z-purlins.
Material 2 Detail:: Plated Alloy Steel

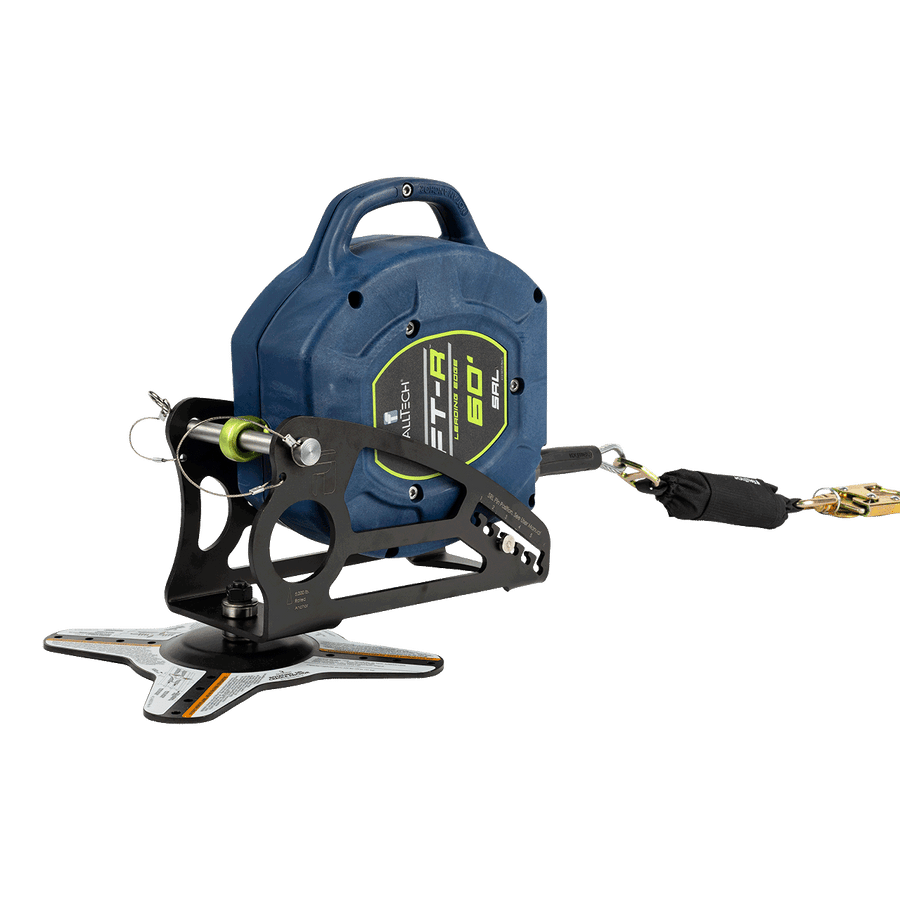

7th Bullet:: Fully compatible with all FallTech Class 2 SRLs
6th Bullet:: Rated to support workers up to 310 lbs.
category tier 2:: Roofing
8th Bullet:: Includes 16 screws for installation.
Material 1 Header:: Base Plate
3rd Bullet:: Integrated secondary D-ring attachment point functions as a standalone anchor, offering additional flexibility for personal fall arrest when an SRL isn’t in place.
Filter - Primary Material:: Plated Alloy Steel
Filter - OSHA:: OSHA Compliant
2nd Bullet:: 360-degree swivel rotation allows the lifeline to track with the worker, delivering full freedom of movement without tangling.
Material 3 Header:: D-Ring
Material 2 Header:: SRL Cradle
Material 3 Detail:: Plated Alloy steel; 3,600 lb min. static strength
9th Bullet:: Complies with ANSI Z359.18-2017, OSHA 1910.140, and OSHA 1926.502.
4th Bullet:: Rugged, low-profile build with sealed bearings resists corrosion, reduces leverage forces, and extends SRL lifespan.
Descriptor 2:: Compatible with all FallTech SRLs
Instruction Manual:: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/instruction_manuals/MANC41_Rev_A_061025_EN_BOOKLET.pdf
Sell Sheet:: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/sell_sheets/Cradle Anchor_Sell_Sheet_012026.pdf
BC Status:: Yes
Declaration of Conformity (ANSI):: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/declarations_of_conformity/A0527076_DOC.pdf
BC Category:: 328
