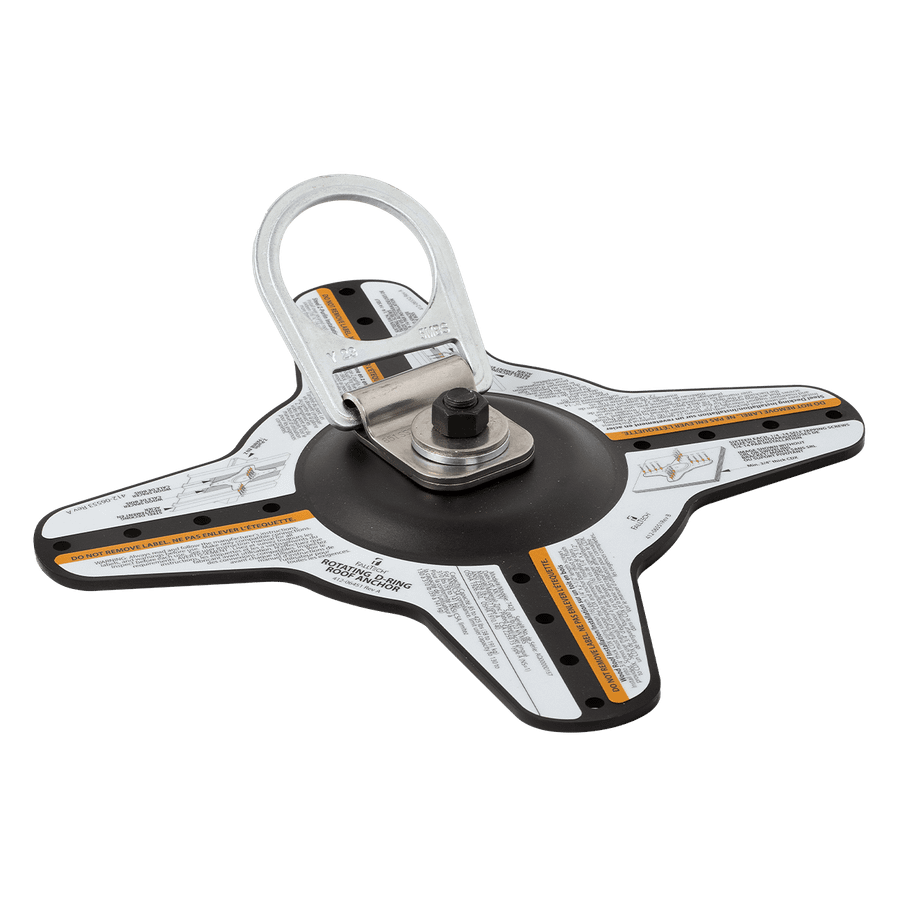

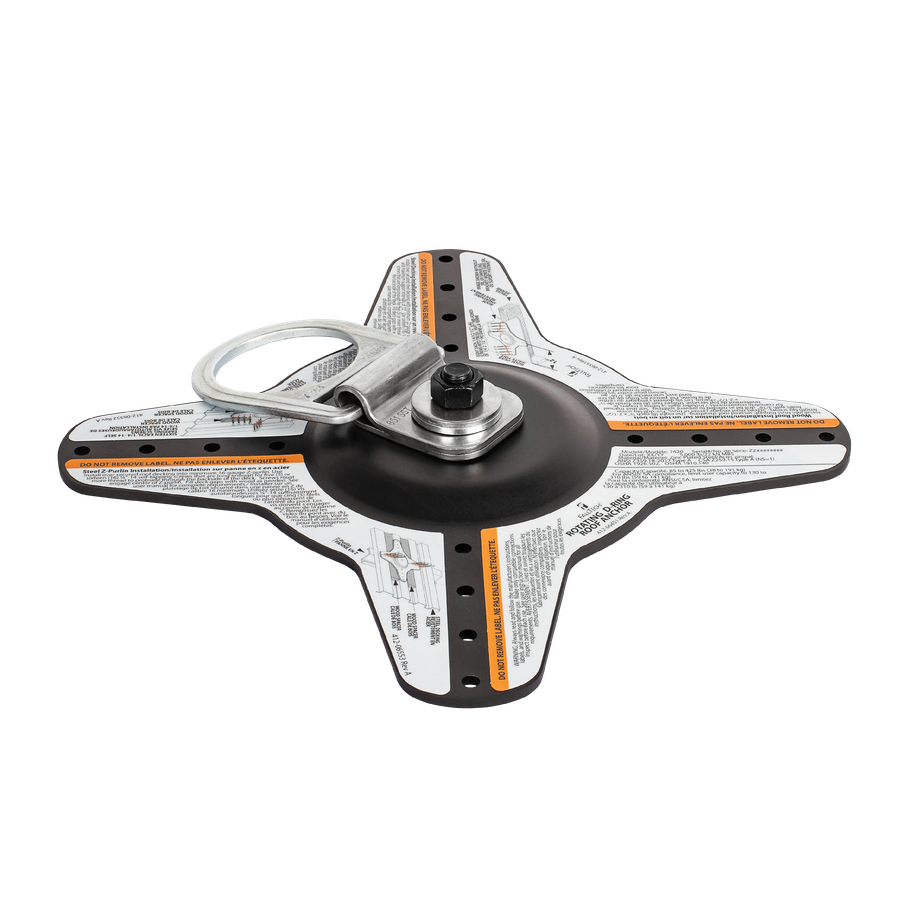

Rotating D-Ring Anchor

Name: Fall Tech
Address: 1306 S. Alameda St., Compton, CA 90221, Compton, CA, 90221, US
Telephone: (800) 719-4619

Contact Sales

Built for roof and deck anchorage applications, this rotating D-ring anchor improves worker range of motion while providing a durable permanent tie-off point for fall protection systems.

Downloads

Instruction Manual

Declaration of Conformity (OSHA)

Sell Sheet

Rotating D-ring Anchor Sell Sheet

Spec Sheet

Compliant With:

OSHA 1926.502 and 1910.140

ANSI Z359.18-2017

SKU:: 7420
UPC:: 848013032836
white cap - package weight uom:: Pound|LBR
Material 2 Header:: D-ring
Filter - OSHA:: OSHA Compliant
Performance 2 Detail:: 130 to 310 lb max.
Descriptor 1:: Reusable; multiple substrates
document name 2:: Declaration of Conformity
Filter - Application:: Reusable
white cap - selling uom:: EA - Each|EA
document file 2:: declarations_of_conformity/A0224075_DOC.pdf
white cap - gtin:: 00848013032836
Product Type:: Reusable Roof Anchor
white cap - total shelf life:: 10000
white cap - package width uom:: Inches|INH
document file 3:: sell_sheets/Rotating_D_Ring_Anchor_Sell_Sheet_052025.pdf
Filter - Primary Material:: Plated Alloy Steel
white cap - country of origin:: 840
white cap - package depth uom:: Inches|INH
Performance 3 Detail:: 130 to 425 lb max.
Other Items You May Need:: 8127B, 721530LEC, 84108TP3, 82808TP1
Performance 2 Header:: ANSI User Capacity
Material 2 Detail:: Plated alloy steel; 5,000 lb min. static strength
white cap - package height uom:: Inches|INH
Performance 1 Header:: Static Strength
Filter - ANSI:: ANSI Compliant
Similar Solutions:: 7410, 7410M, 7434, 790130
category tier 2:: Roofing
2nd Bullet:: 360 degree Swivel D-ring allows for greater movement and worker range
Performance 3 Header:: OSHA User Capacity
1st Bullet:: Features 10" x 10" anchoring base plate with 2-1/4" connecting D-ring
Filter - Anchor Type:: Screw/Nail-down
Family Group:: Rotating D-Ring Anchor
5th Bullet:: Meets OSHA 1926.502 and 1910.140 regulations
6th Bullet:: Complies with ANSI Z359.18-2017 Type A
Material 1 Detail:: Plated Alloy Steel
document name 1:: Instruction Manual
Material 1 Header:: Base Plate
document name 3:: Rotating D-ring Anchor Sell Sheet
4th Bullet:: Suitable for use with appropriately rated horizontal lifelines
document file 1:: instruction_manuals/MANC40_Rev_B_061025_EN_BOOKLET.pdf
3rd Bullet:: Includes 16 screws for installation into wood, metal deck, steel roof, or Z-Purlin structures
Performance 1 Detail:: 5,000 lb min.
Instruction Manual:: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/instruction_manuals/MANC40_Rev_B_061025_EN_BOOKLET.pdf
Declaration of Conformity (OSHA):: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/declarations_of_conformity/52e20c6f79772fb755c33f4c051bb5955f59db8b.pdf
Sell Sheet:: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/sell_sheets/Rotating_D_Ring_Anchor_Sell_Sheet_052025.pdf
BC Status:: Yes
Related Products:: 7410, 7410M, 7434, 790130
Relevant Standards 1:: OSHA 1926.502 and 1910.140
Relevant Standards 2:: ANSI Z359.18-2017
BC Category:: 126
