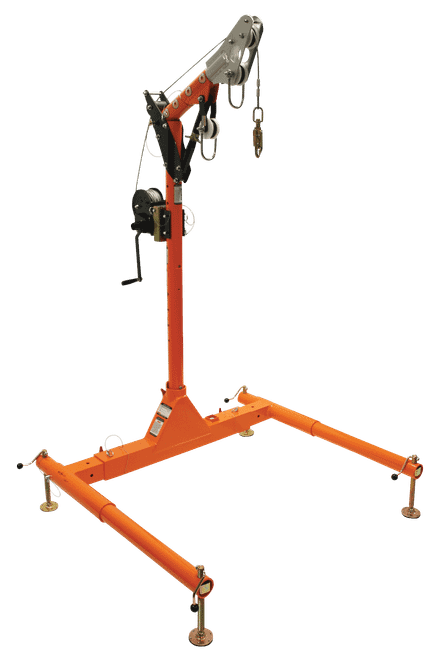

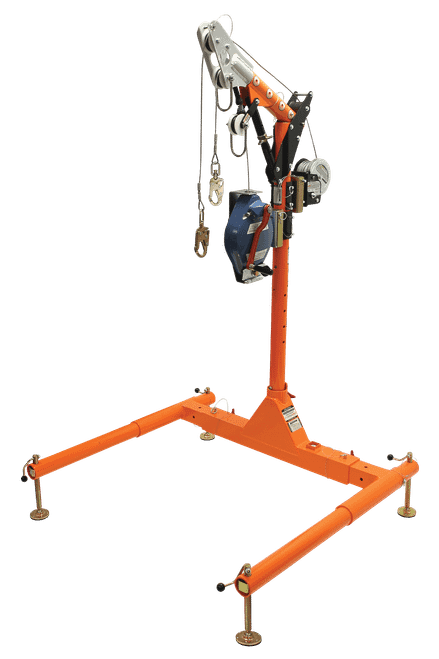

5pc Confined Space Davit System with 12" to 29" Offset Davit Arm and SRL-R

Name: Fall Tech
Address: 1306 S. Alameda St., Compton, CA 90221, Compton, CA, 90221, US
Telephone: (800) 719-4619

Contact Sales

Designed for confined space entry, rescue, and retrieval, this portable davit system combines an adjustable offset arm with an SRL-R for dependable fall protection and retrieval capability. Lightweight components support fast setup and efficient operation.

Downloads

Instruction Manual

Declaration of Conformity (OSHA)

Brochure

Spec Sheet

Compliant With:

OSHA 1926.502 and 1910.66

SKU:: 6050328R
UPC:: 848013090928
Filter - OSHA:: OSHA Compliant
Performance 2 Header:: Entry/Egress Static Strength
Similar Solutions:: 6050428WR, 6050128, 6050228W
Performance 3 Header:: Rescue User Capacity
2nd Bullet:: Base width adjusts from 38" to 65" and fits a wide range of openings.
Performance 4 Detail:: 1 user, 310 lb max.
Performance 1 Detail:: 5,000 lb min.
Performance 1 Header:: Rescue Static Strength

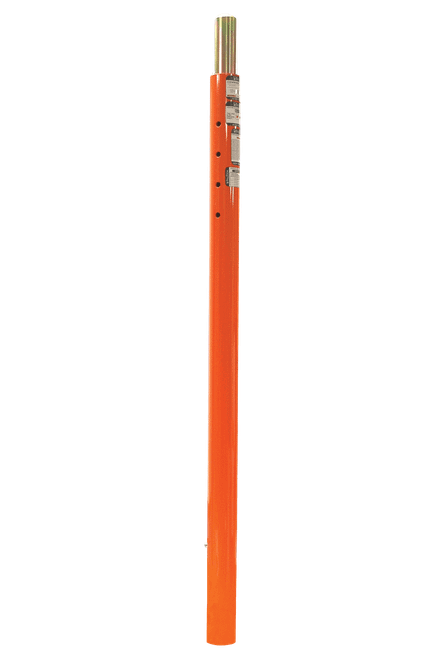

3rd Bullet:: 5pc system features 33" lower mast extension and device receiver bracket
1st Bullet:: Davit arm adjusts from 12" to 29" offset reach to keep lifelines centered over access locations
Other Items You May Need:: 6501528, 6500657, 7281DS, 7297
Performance 2 Detail:: 1,800 lb min.
Performance 4 Header:: Entry/Egress Capacity
Performance 3 Detail:: 2 users, 310 lb max. for each person
Material 1 Header:: Davit System
Relevant Standards 1:: OSHA 1926.502 and 1910.66
Descriptor 1:: Includes arm, 3pc base and mast
8th Bullet:: Davit System meets OSHA 1926.502 and 1910.66 regulations
Filter - Davit Systems and Base:: Davit System Kits
Material 1 Detail:: Powder coated 6061 aluminum and plated steel
category tier 2:: Davit Systems and Bases
Family Group:: Complete Davit System
Product Type:: 5pc System with 3-way SRL-R
7th Bullet:: Lightweight powder coated aluminum combined with alloy steel for longer life and durability
9th Bullet:: SRL-R complies with ANSI Z359.14-2014

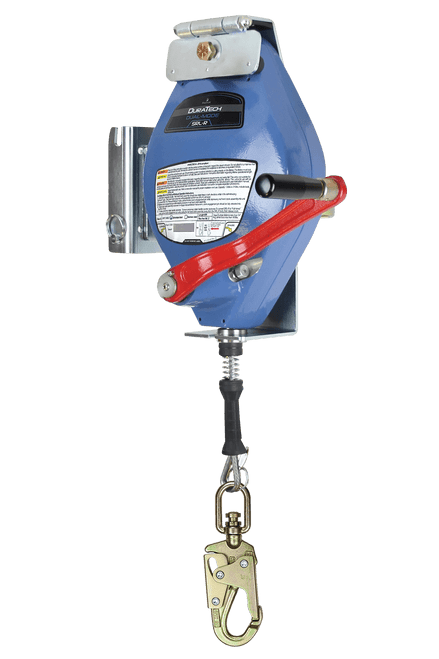

4th Bullet:: Includes 60' galvanized cable SRL-R
6th Bullet:: 3pc base includes integral bullseye level and tool-free height adjustment
5th Bullet:: Offset davit arm features two pulleys and secondary 5,000 lb anchor point
