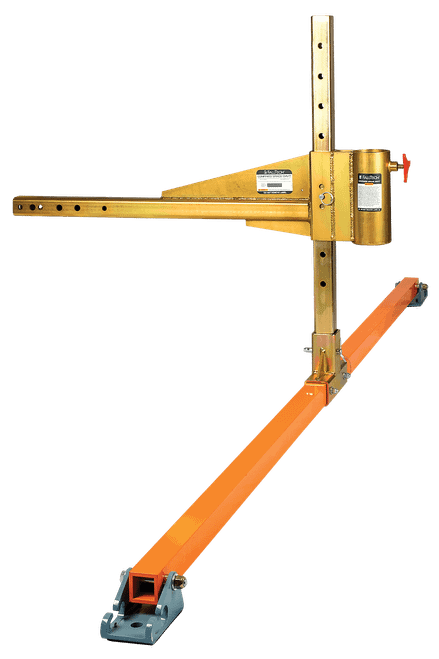

3pc Vehicle Hitch-mount Base for 12" to 29" Systems

Name: Fall Tech
Address: 1306 S. Alameda St., Compton, CA 90221, Compton, CA, 90221, US
Telephone: (800) 719-4619

Contact Sales

Designed for vehicle-mounted confined space operations, this hitch base provides a portable anchorage solution for compatible davit systems. Its rugged steel construction supports fast setup and dependable performance in the field.

Downloads

Instruction Manual

Declaration of Conformity (OSHA)

Brochure

Spec Sheet

Compliant With:

OSHA 1926.502 and 1910.66 when used in a complete system

SKU:: 6501528
UPC:: 848013090179
Filter - OSHA:: OSHA Compliant
Performance 2 Header:: Entry/Egress Static Strength
Similar Solutions:: 6501644
Material 2 Header:: Sleeve Insert
Performance 3 Header:: Rescue User Capacity
2nd Bullet:: Steel hitch bar features PVC mast sleeve insert and mast securing handscrew.
Performance 4 Detail:: 1 user, 310 lb max.
Performance 1 Detail:: 5,000 lb min.
Performance 1 Header:: Rescue Static Strength
3rd Bullet:: Horizontal foot bar incudes two pivoting feet and vertical T-bar bracket for improved stability
1st Bullet:: Installs to Class 3 minimum vehicle trailer hitch with 2" square receiver
Other Items You May Need:: 6500128, 6500433, 6500545
Performance 2 Detail:: 1,800 lb min.
Performance 4 Header:: Entry/Egress Capacity
Performance 3 Detail:: 2 users, 310 lb max. for each person
Relevant Standards 1:: OSHA 1926.502 and 1910.66 when used in a complete system
Material 2 Detail:: PVC pipe
Descriptor 1:: Fits all masts and 12" to 29" offset arm
Filter - Davit Systems and Base:: Fixed and Portable Davit Bases
Material 1 Detail:: Powder coated 6061 aluminum and plated steel
category tier 2:: Davit Systems and Bases
Material 1 Header:: Vehicle Hitch-mount Base
Product Type:: 3pc Vehicle Hitch-mount Base
7th Bullet:: Meets OSHA 1926.502 and 1910.66 regulations only when used with offset davit arms and mast extensions
Family Group:: Vehicle Hitch Davit Base
4th Bullet:: Two detent pins quickly connect foot bar, vertical post and hitch bar
6th Bullet:: Constructed with lightweight powder coated aluminum and plated alloy steel components
5th Bullet:: 11" to 36" height adjustment range provided in 3" increments
Instruction Manual:: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/instruction_manuals/MCS31_Rev_B_020819.pdf
Declaration of Conformity (OSHA):: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/declarations_of_conformity/4a5e9565615c4f13150e2c458950bc40683d6691.pdf
Brochure:: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/sell_sheets/Confined_Space_Brochure_09112020.pdf
BC Status:: Yes
Related Products:: 6501644,6500128,6500433,6500545
BC Category:: 126
