Why Steel Erectors Must Use Fall Protection: Facing the Risk of Hazards, Systems, and Compliance

Steel erection is not “general construction at height.” Crews build on open members before floors, walls, or overhead anchorage exist, and they move constantly while connecting, decking, and bolting up. That combination of open edges, frequent transitions, and limited tie-off options means fall protection for steel erectors must be designed as a system, not a single piece of gear.

Steel Erection Work and Jobsite Realities

Steel erection includes placing members, setting joists, installing decking, and moving across columns and beams as the structure rises. On “high steel,” workers climb, rotate, and traverse laterally with few barriers and often without practical overhead tie-off during early phases. These conditions create swing fall hazard exposure, sharp-edge contact risk, and the potential for extended free fall when workers tie off below the dorsal D-ring.

Connecting Operations

Connecting operations involve the initial placement and securing of structural members. Risk increases because connectors work near open edges and incomplete decking while repositioning frequently. In practice, they spend more time moving than standing still. Fall protection approaches designed for static work can break down quickly in the field.

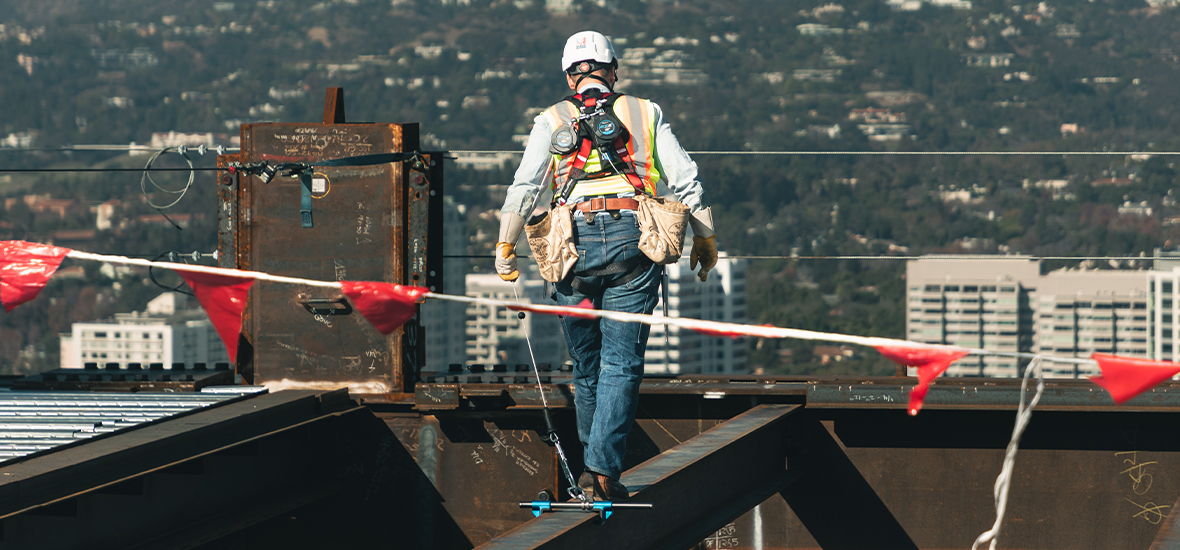

Working at Elevation on Structural Steel

Structural steel work requires both vertical progression, such as columns, ladders, and member-to-member transitions, and lateral travel across beams and bays.

With limited overhead options, crews often face foot-level anchorage or below-D-ring tie-off conditions and must account for fall clearance calculation early, before the first connector steps onto open steel.

OSHA Steel Erection Fall Protection Requirements

OSHA treats steel erection as a distinct scope under Subpart R steel erection, which is why the rule framework differs from general construction language. The standard focuses on task-based triggers such as connecting versus decking, the realities of open steel work, and how site practices influence exposure.

OSHA 1926.760 Overview

The purpose of OSHA 1926.760 requirements is to define when fall protection must be used during steel erection and address conditions unique to open steel environments. The key takeaway for safety teams is simple. Interpret the rule through the sequence of erection, because exposure changes as soon as steel goes up.

Fall Protection Thresholds and Exceptions

Steel erection rules include thresholds, triggers, and limited exceptions tied to task and location, especially around the Controlled Decking Zone (CDZ). A CDZ is a limited-access area used during initial decking work, typically between 15 and 30 feet, where only trained decking workers may enter.

From a systems perspective, the greater issue is behavioral. When crews treat the 15-foot tie-off threshold or the 30 feet or two stories rule as permission to delay protection, they increase the risk of early exposure incidents. These incidents occur precisely when anchorage options are most limited.

For fall protection for steel erectors, plan for 100% tie-off wherever the work sequence allows. Treat exception language as a last resort rather than the default.



Systems and Gear Selection for Steel Erection

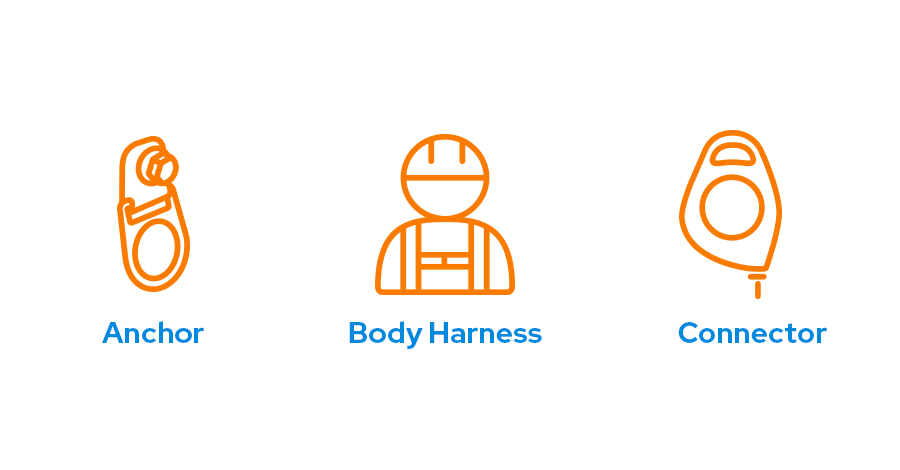

Steel erection safety improves when equipment is chosen based on exposure conditions rather than product categories. Start with the personal fall arrest system components, which include the harness, connecting device (SRL or lanyard), and anchorage. Then evaluate how the system behaves during real movement such as climbing, transitioning, reaching, and lateral travel.

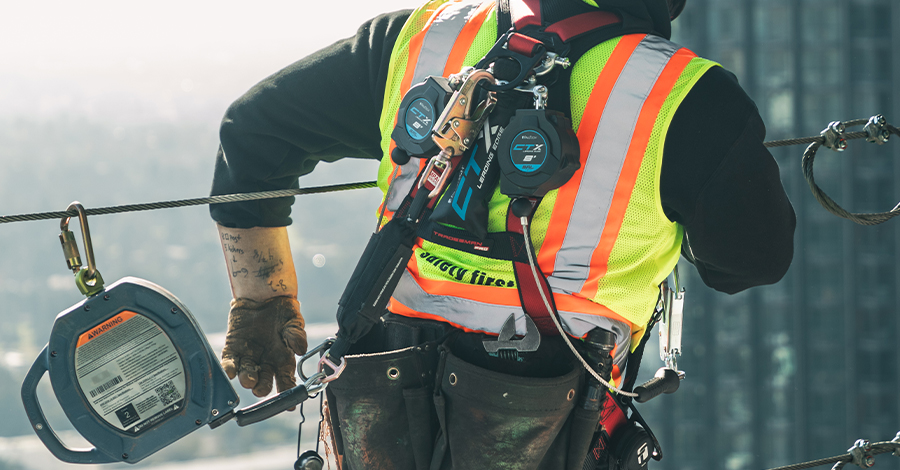

Class 2 SRLs

Class 2 SRLs are common in steel erection because open steel often forces low tie-off and edge proximity. Crews typically choose them when leading-edge contact is possible or when the tie-off location sits below the worker’s D-ring and requires tighter control of fall performance. All Class 2 SRLs are rated for leading-edge exposure.

Leading Edge SRLs

Leading edge SRLs address a harsh reality. Steel edges can damage lifelines and increase fall severity. Treat every flange edge, decking transition, and weld area as a potential hazard and evaluate whether sharp-edge protection is needed along the lifeline path. When workers move horizontally near exposed edges, a leading-edge SRL often becomes the safer baseline.

Ironworker Harnesses

Ironworker harnesses must support long wear, frequent climbing, and heavy abrasion.

Reinforced wear areas, glove-friendly hardware, and designs that reduce hang-up points all matter because steel work punishes equipment quickly. A harness that performs well in light-duty construction can fail early in high-steel environments if it cannot withstand repeated abrasion and movement.

Anchorage and Horizontal Systems on Structural Steel

Anchorage is where many systems succeed or fail. Even a strong device can perform poorly if the anchor location creates poor alignment, sharp routing paths, or increased free fall. In steel erection, anchorage planning should be built into the erection sequence so workers can tie off predictably as the structure develops.

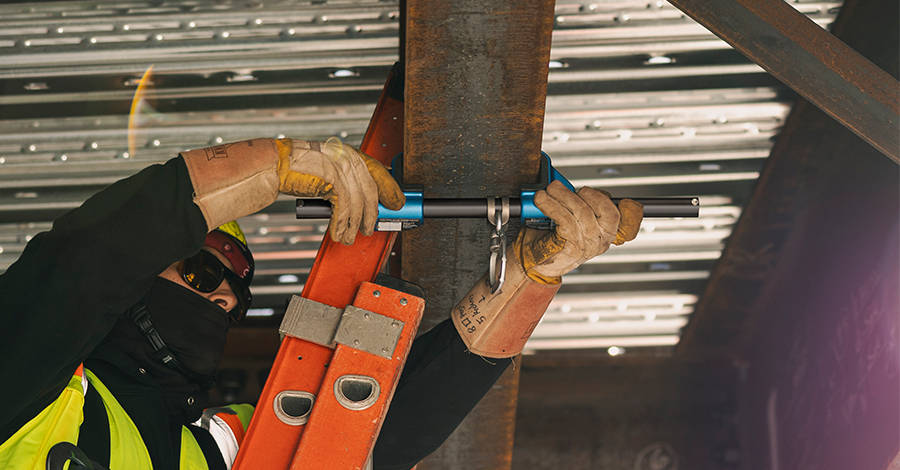

Beam Clamps and Beam Anchors

Teams commonly use beam clamps and beam anchors as temporary anchorage points on steel members. Selection depends on load direction, member geometry, and worker movement. Raising the anchor location reduces free-fall potential and can simplify a rescue plan after fall arrest. This also lowers impact risk and improves access during retrieval.

It is also critical to account for structural steel anchorage strength as a system requirement rather than an assumption. Because workers move constantly, load directions change. Systems should be designed for those real vectors rather than ideal straight-line loading.

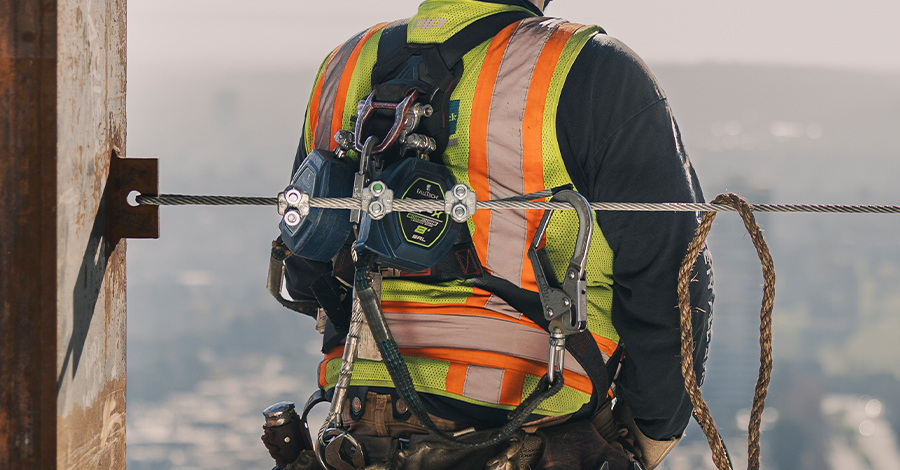

Horizontal Lifelines

Horizontal lifelines are common during decking because they expand the work zone and reduce constant reconnecting. That flexibility comes with design considerations. Deflection, anchor spacing, and connector compatibility all influence total arrest distance and system behavior under load.

Whenever horizontal systems are used, fall clearance calculation must be treated as a requirement rather than an estimate. Small miscalculations grow quickly when sag and dynamic movement are introduced.

Steel Erection Use Cases and Scenarios

This is where fall protection for steel erectors becomes practical. Systems must match the task so workers can move efficiently without increasing exposure.

Decking and Perimeter Work

Decking work creates large leading edges and sustained perimeter exposure. Crews may rely on horizontal systems and integrate perimeter safety cables where possible to reduce exposure at boundaries. When steel edges dominate the environment, equipment selection and routing should minimize lifeline contact and protect high-wear areas.

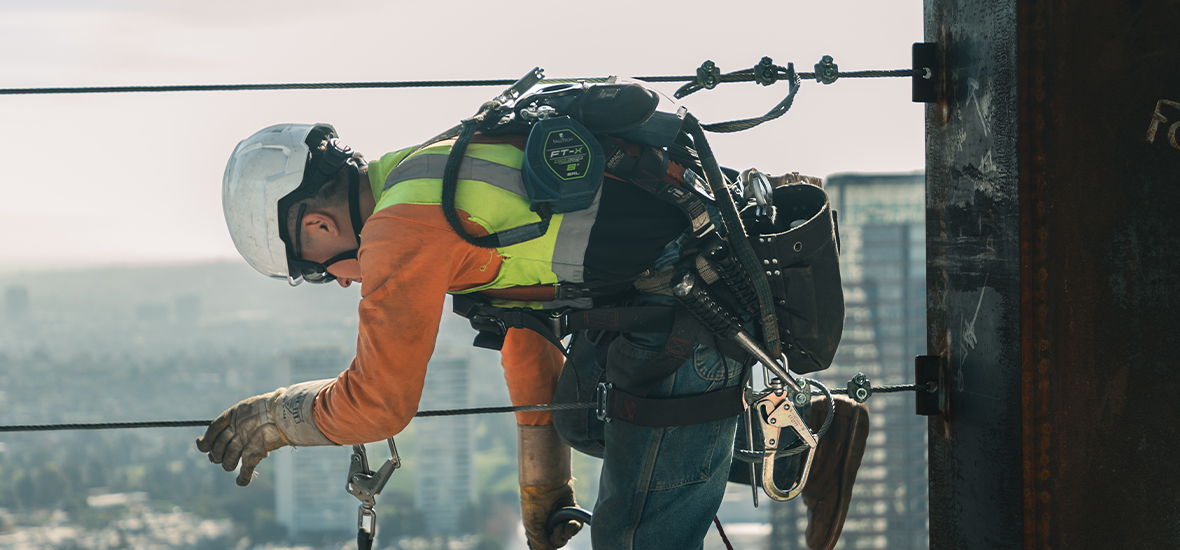

Columns, Beams, and Vertical Progression

Column walking, joist traversal, and member-to-member transitions increase lateral movement, and the risk of a pendulum-like swing-fall. Placing anchors high and aligned with travel paths helps reduce swing and lowers the chance of striking steel during arrest.

Procedures, Inspection, and System Compatibility

Steel erection accelerates equipment wear. Maintaining readiness requires proper configuration, frequent inspection, and consistent documentation.

Pre-Use Inspection

A pre-use inspection before each shift should focus on damage common to high steel environments. These include edge abrasion, welding burns, bent connectors, cracked housings, and SRL lock-up performance. Users noticing equipment with major webbing damage, deformed hardware, or failed lock-up should be removed from service immediately.

Competent Person inspection oversight is essential because damage in steel work can progress quickly and unpredictably. A Competent Person also supports defensible decisions by documenting equipment condition, actions taken, and adherence to manufacturer instructions at least annually.

Connector Compatibility

Connector compatibility is more than simply attaching components together. The harness, SRL or lanyard, anchorage connector, and anchor must function as a complete system. Incompatible setups can cause misalignment, gate loading, unexpected release, extended free-fall during movement, or insufficient energy absorption.

Rescue planning should also account for suspension time. A clear rescue plan after fall arrest reduces delays and helps address suspension trauma risk considerations if a fall occurs.

Risks and Common Failure Points in Steel Erection

Leading Edge and Swing Fall Hazards

Leading edges can damage lifelines and increase fall severity. Lateral travel raises swing fall risk when the anchor sits far from the worker’s path. Systems that ignore these realities may appear compliant on paper but fail under real movement.

Improper Anchorage Selection

Anchorage failures often begin with poor planning. Examples include anchors placed off path, lifelines routed over sharp edges, or connectors selected without considering movement vectors. The result can be longer free falls, higher impact risk, and more complicated rescue.

In steel erection, anchorage is never static. It evolves with the structure and must be planned accordingly. Always elevate anchors when possible.

Designing Fall Protection Systems for Steel Erection Work

Steel erection demands specialized system design, not generic construction-at-height assumptions. Systems should account for leading edges, low tie-off points, and constant lateral movement.

When fall protection aligns with real jobsite behavior, crews can maintain productivity while staying protected. That balance defines effective fall protection for steel erectors.
