What is an Anchorage Point in Fall Protection?

“Looks strong” isn’t enough when you’re choosing where to tie off. That tie-off location is commonly called an anchorage point, where your personal fall protection system connects to a supporting structure, often through an anchorage connector.

Before you clip in, the structure and equipment must be confirmed suitable for the job. Strength, installation, compatibility, and location all matter. Here’s what to check and who should confirm it.

Anchorage, Anchor Points, and Connectors

You’ll hear these terms used interchangeably on jobsites. To choose and install equipment correctly, it helps to understand what each means.

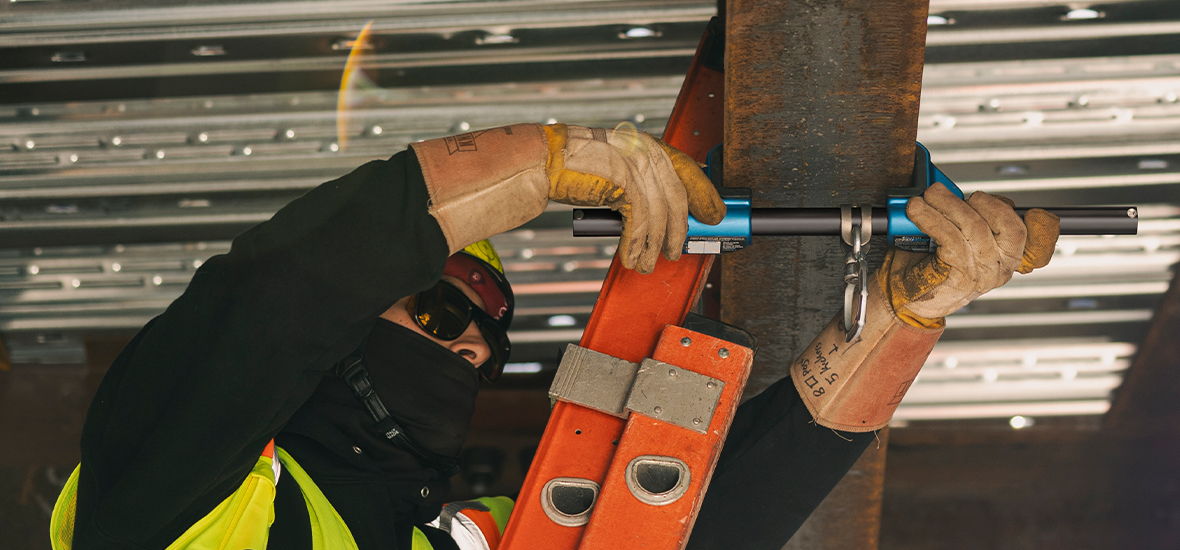

For example, a beam clamp’s rating doesn’t establish the beam’s strength. Both the anchorage connector and supporting structure must be suitable for the intended use.

Our guide to anchor points explains equipment types, selection, and inspection in more detail.

What Makes an Anchorage Suitable?

A suitable anchorage must match your system, equipment, and work area. Check these three factors before use.

Strength and Number of Users

Confirm that the anchorage can support the intended system and every attached worker. Fall arrest, fall restraint, and a work positioning system place different demands on it. Don’t assume approval for one use covers another.

Installation and Equipment Compatibility

Follow the anchorage connector’s instructions for the supporting material, fasteners, installation, and loading direction. Hooks and carabiners must fit the attachment point and close and lock fully. A connection that could force the gate open isn’t compatible.

Location, Fall Clearance, and Swing-Falls

Position the anchorage to limit free fall and swing-falls where feasible. Moving sideways from it can create a pendulum effect during a fall. Follow the equipment’s instructions to confirm sufficient clearance from lower levels and obstructions for the actual setup.

What Does OSHA Require for Anchorages?

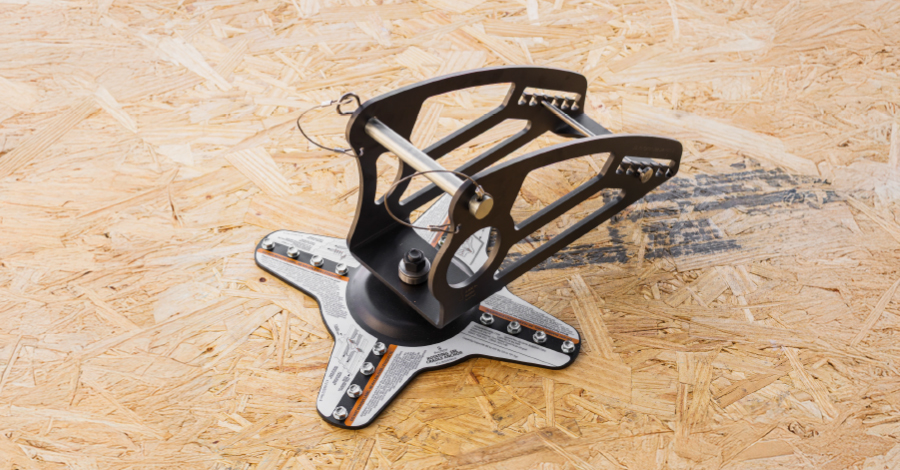

For personal fall arrest systems, the Occupational Safety and Health Administration (OSHA) provides two anchorage strength options:

• Support at least 5,000 pounds per attached worker.
• Use a complete system with a safety factor of at least two. (A Qualified Person must supervise its design, installation, and use.)

For construction, these requirements appear in the OSHA fall protection systems criteria, Section 1926.502(d)(15), Subpart M. General-industry requirements appear in OSHA’s fall arrest anchorage framework, Section 1910.140(c)(13), Subpart I.

Both standards also require the fall protection anchorage to be independent of anchorages used to support or suspend work platforms. Meeting the strength requirement alone doesn’t establish that the setup is suitable.

Who Selects and Approves Anchorages?

Competent Person Responsibilities

The appropriate Competent Person identifies fall hazards and has authority to correct unsafe conditions. They can evaluate field setups and select suitable anchorages within their training and the applicable requirements.

Qualified Person Responsibilities

A Qualified Person provides the technical design and analysis required for engineered systems. Their supervision is required for the safety-factor alternative described above and for the design, installation, and use of a horizontal lifeline.

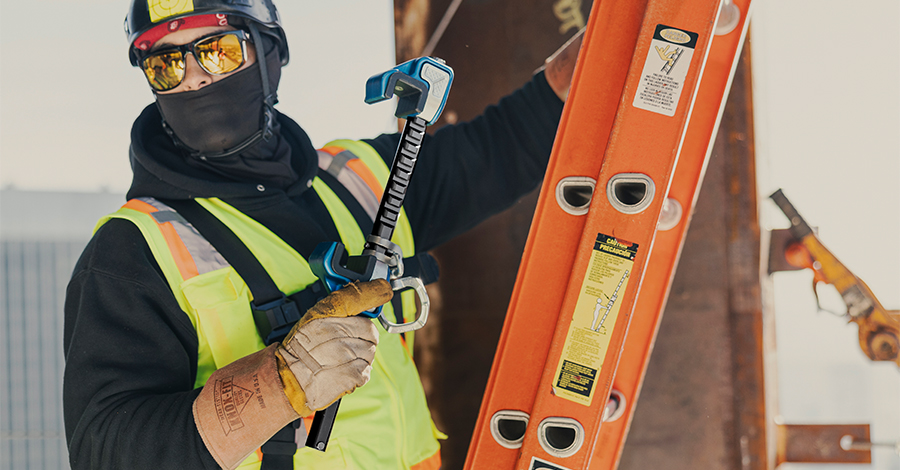

A Competent Person’s field review doesn’t replace Qualified Person oversight where it’s required. If you’re unsure whether a tie-off location is suitable, don’t use it until it’s evaluated.

Common Anchorage Mistakes to Avoid

• Clipping Onto Guardrails: For construction covered by Subpart M, OSHA Section 1926.502(d)(23) prohibits attaching personal fall arrest systems to guardrail systems. A lift’s designated anchorage is different from its railing.
• Improvising Tie-Off Connections: Don’t wrap a lanyard around a beam and clip it back to itself unless the manufacturer permits that use for the specific equipment and setup.
• Skipping Inspection: Check the anchorage connector, its installation, and the supporting structure before use. Don’t use damaged equipment or a questionable connection; have it evaluated and follow the manufacturer’s instructions.

Anchorage Point FAQs

Is an anchorage point the same as an anchorage?

The terms can overlap. OSHA uses “anchorage” for a secure attachment point. “Anchor point” and “anchorage point” are common field terms, so confirm what they mean in your setup.

Must every fall arrest anchorage support 5,000 pounds?

No. OSHA also permits a complete system that maintains a safety factor of at least two, with a Qualified Person supervising its design, installation, and use.

Can multiple workers share one anchorage?

Only if the anchorage and complete system can support that number of users. A 5,000-pound rating alone doesn’t establish suitability for multiple workers.
