Fall Protection Mobility: How Range of Motion Affects Safety and Performance

Fall protection is often judged by compliance, ratings, and inspections. But real performance at height depends on something more dynamic. It depends on mobility.

Mobility is how a worker moves while staying connected. This includes climbing, reaching, turning, stepping, and repositioning. If equipment limits natural movement, it can reduce safety, increase fatigue, and slow work.

The goal is not just to stop a fall. The system must also support how work happens.

Range of Motion in Real Work

Range of motion means the ability to move freely while staying tied off to a rated anchor. This includes climbing ladders, reaching overhead, stepping around obstacles, and changing elevation.

When movement is limited, workers adjust. These adjustments change posture, balance, and connector loading. Over time, this can reduce both safety and productivity.

Real work conditions reveal how a system performs.

During movement:

• SRLs extend and retract
• Anchor angles change
• Tie-off height shifts
• Clearance margins change

A basic fit check cannot show this. Only real movement can confirm if a system manages fall distance and supports efficient work.

Harness Fit and Functional Mobility

A full-body harness can fit correctly and still limit movement. Proper harness fit means straps are adjusted as needed and hardware is in its right place. Functional mobility means the worker can move naturally without restriction.

Key Design Factors

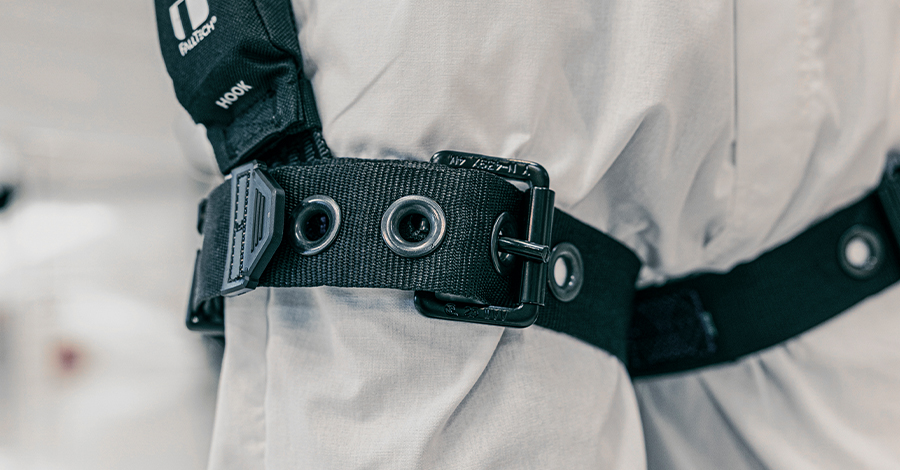

Adjustability and Articulation
Hardware should move with the body without binding. Adjusters must hold position without limiting motion.

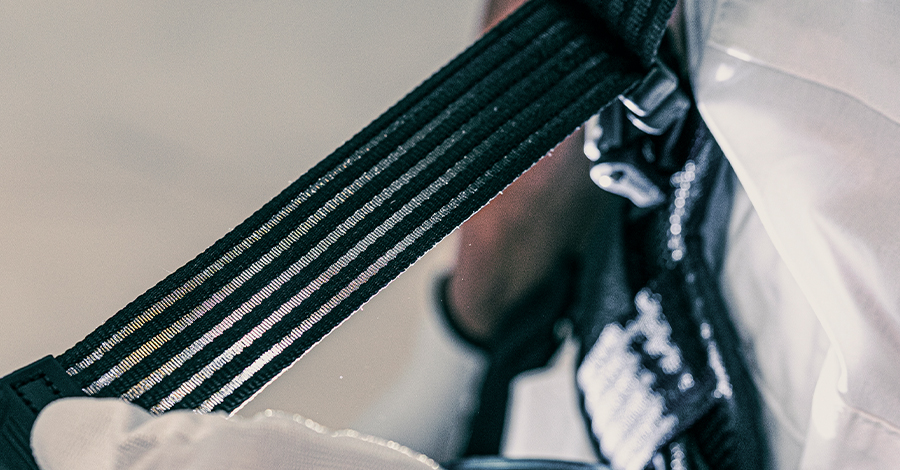

Webbing and Strap Layout
Strap angles affect how easily a worker can lift their legs and move their hips. Poor layout can restrict climbing and force extra effort.

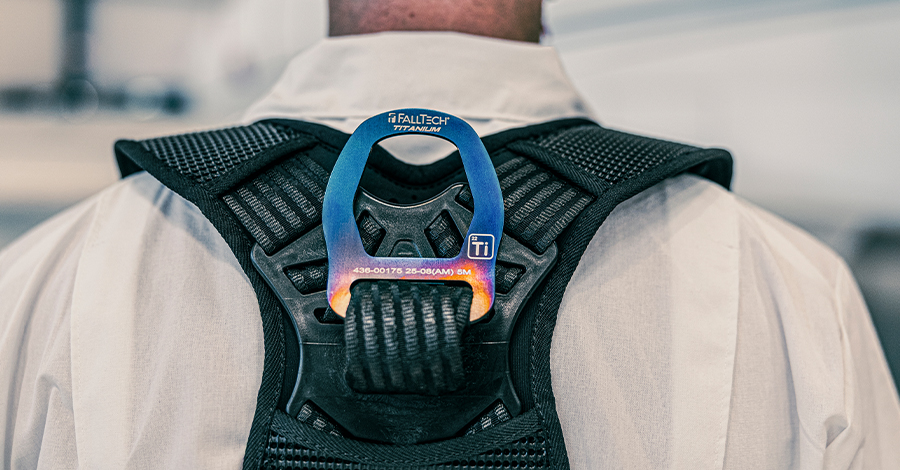

D-Ring Position
The dorsal D-ring must stay in place. If it shifts downward, it can increase torque and affect suspension after a fall.

Harness Attachment Points and Use

Attachment points affect posture and system behavior:

• Dorsal D-ring supports fall arrest
• Front attachment can help with climbing and balance
• Side D-rings support work positioning

Each point should match the task. Poor placement can cause discomfort and unsafe loading angles.

Connectors: SRLs and Lanyards

Connectors play a major role in mobility.

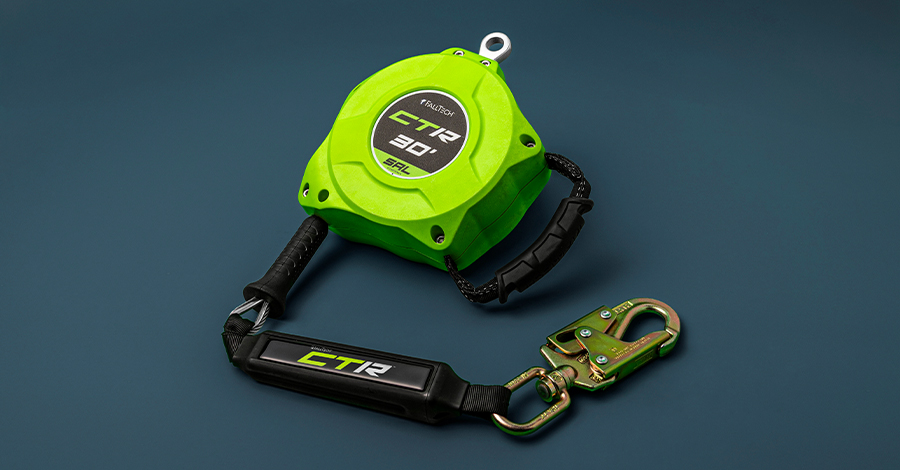

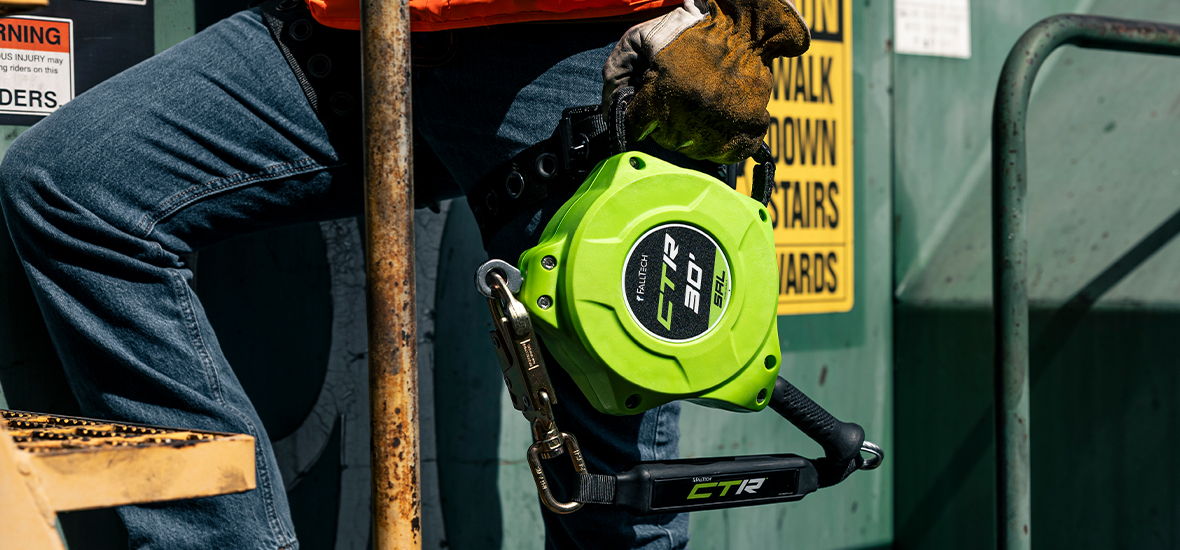

Self-Retracting Lifelines (SRLs)

SRLs extend and retract as the worker moves. This reduces slack and trip hazards. It also allows smoother movement during climbing and repositioning. The two most common devices are standard “block” SRLs that support long lengths (typically 20 feet and longer) and compact personal SRLs that attach onto the worker’s harness.

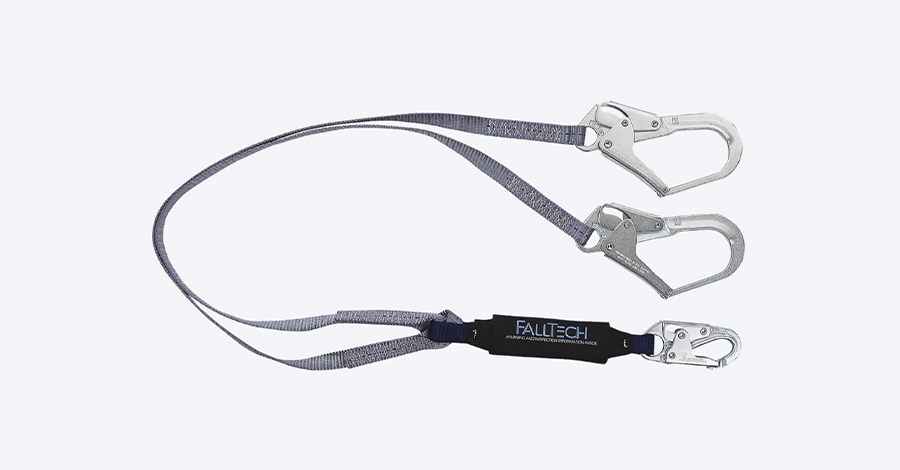

Energy-Absorbing Lanyards (EALs)

Like SRLs, EALs include an energy absorber (“shock pack”) that deploys when there’s a fall. Some use elastic material for an adjustable length, giving workers some degree of flexibility when moving.

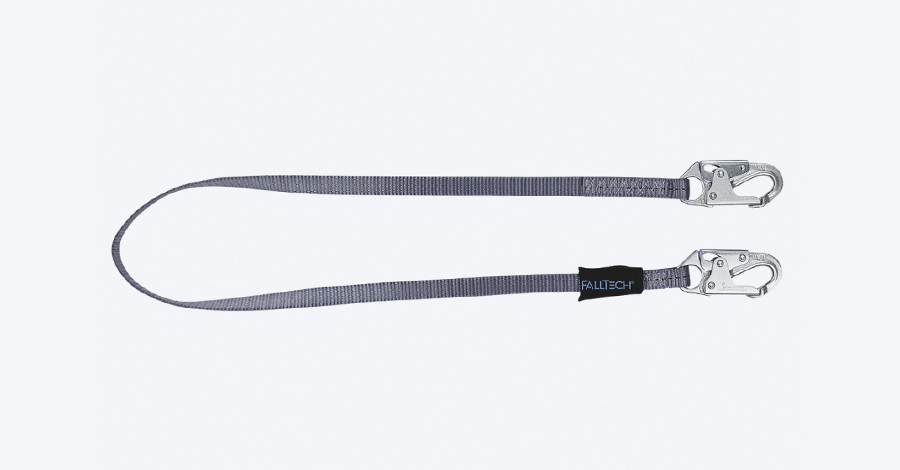

Fall-Restraint Lanyards

Fall-restraint lanyards stop workers from reaching a fall hazard. This improves safety but limits movement. Choosing restraint depends on the task and work area.

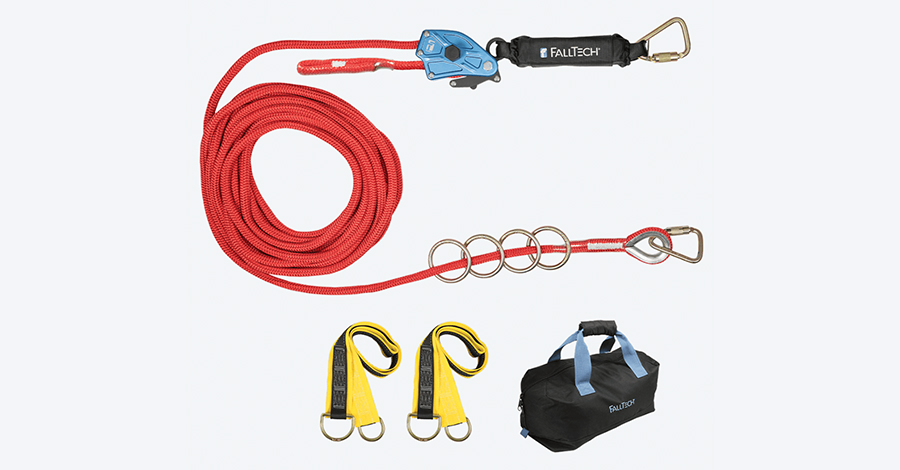

Horizontal Lifelines (HLLs)

HLLs can improve mobility across a wide area. However, they can increase required fall clearance due to line deflection and span.

Anchor Location and Tie-Off Strategy

Anchor placement shapes how the system performs.

Tie-Off Height

Higher anchors reduce free-fall distance and simplify clearance planning. Lower anchors increase fall distance and force.

Movement and Swing-Fall

As workers move sideways, swing-fall risk increases. The worker will move toward the anchor point during a fall. Obstructions can increase injury risk. Anchor placement should match real travel paths, not just static positions.

Fatigue, Pressure, and Sustained Work

Comfort affects safety over time. Poor pressure distribution creates hot spots on the body. This can lead to fatigue and distraction.

Workers may adjust gear in unsafe ways to relieve discomfort. Climbing puts stress on hips and shoulders. Leaning during positioning work increases pressure over time.

Good harness design spreads load evenly and support natural posture.

Movement During Tasks

Different tasks place different demands on the system.

Climbing Tasks
Require good hip movement and effective connector retraction.

Positioning Tasks
Require stability and even pressure distribution during long periods of leaning.

Equipment should support both movement and stability without reducing protection.

Safe Use and System Reliability

Mobility depends on proper use and system condition.

• Inspect equipment before each use
• Remove damaged or worn gear
• Ensure all components are compatible
• Follow manufacturer instructions

Every system also needs a rescue plan. Quick rescue reduces suspension time and lowers risk after a fall.

Designing for Real Work

Effective fall protection supports how workers move.

Watch how workers climb, reach, and reposition. Identify movement patterns. Then choose equipment that matches those needs. Systems that support natural movement reduce fatigue, improve posture, and increase productivity.

Choose equipment that works with the job, not against it.
