Fall Clearance 101: How to Calculate Safe Distances
By Andrew Montiveo
Content Manager
Before tying off, every worker should know one number: their Minimum Required Fall Clearance (MRFC).
Understanding the Basics of Fall Clearance
Fall clearance is the minimum space your fall-arrest system needs to catch you before you hit the level below.
It’s measured from the anchor point, or the walking-working surface, to where your feet would be after a fall. Every worker and safety manager should know this distance ahead of time to make sure there’s enough room for a fall-arrest system to stop a fall safely.
Factors for Calculating Fall Clearance
The factors used to calculate fall clearance depend on the type of connector. A fixed-length lanyard behaves differently from a modern self-retracting device, and not all factors apply in every situation.
| Deceleration Distance | Vertical distance traveled while the energy absorber deploys and stops the fall. Applies to both Energy-Absorbing Lanyards (EALs) and Self-Retracting Lifelines (SRLs). |
| Activation Distance | Distance fallen before an SRL activates and locks. Sudden movement can also trigger the lock. |
| Arrest Distance | Total vertical distance fallen from start of the fall to a complete stop (SRLs only). |
| D-Ring Height | Height of the dorsal D-ring, typically about 1 foot less than worker height (about 5 feet standard for calculations). |
| Free-Fall | Distance fallen before the system begins slowing the fall. Longer free-fall increases arrest distance. |
| Harness Stretch | Minor stretch or shifting of the harness as it absorbs fall forces (sometimes combined with D-ring shift). |
| Safety Factor | Extra clearance (typically 1½ feet) added to account for real-world variables such as worker height or harness fit. |
| Swing-Fall | Sideways pendulum motion when working away from the anchor, increasing impact risk and clearance needs. |
| Anchor Location | Anchoring above the D-ring reduces free-fall; anchoring below it increases free-fall. |
OSHA and ANSI Compliance for Fall Clearance
The US Occupational Safety and Health Administration (OSHA) and the American National Standards Institute (ANSI) offer guidance on fall clearance. They set rules for certain parts of a fall-arrest system, yet only ANSI offers detailed criteria and examples for how to calculate fall clearance.
Fall Protection Gear That Impacts Fall Clearance
Your fall clearance depends on many factors, but none more than the connector you use. The type of lanyard and where you anchor it can change your required clearance from as little as 7 feet to more than 20. That difference determines where you can safely work at height.

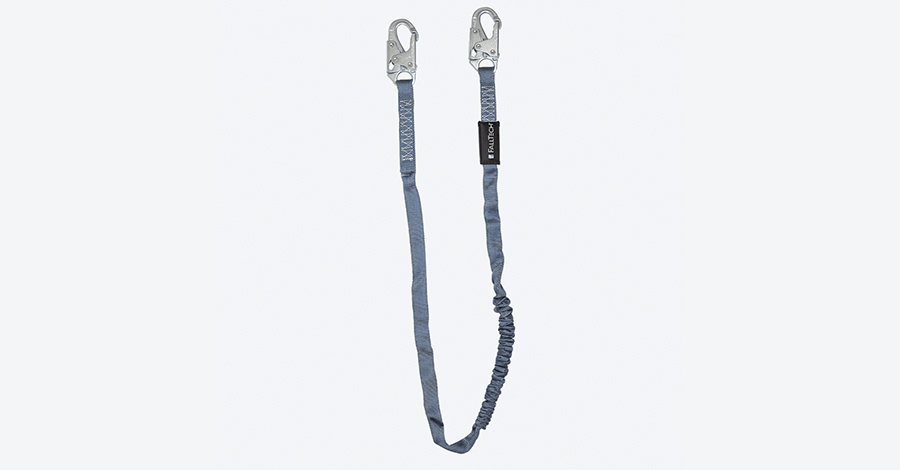

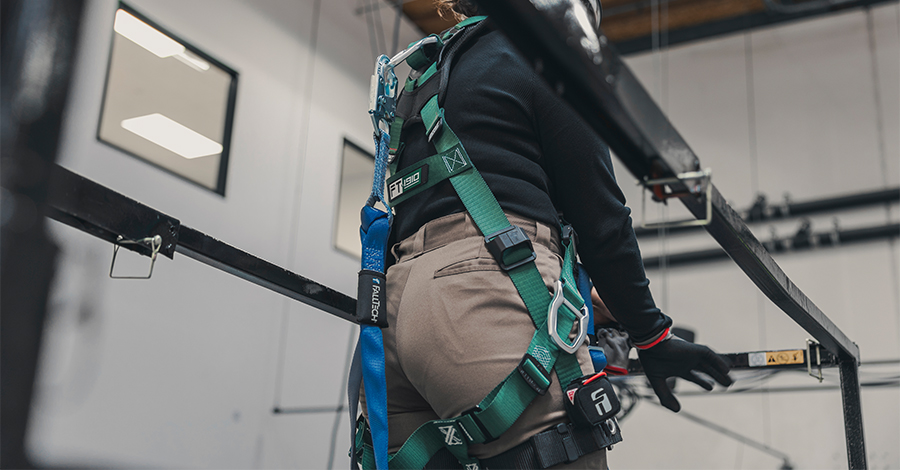

Energy-Absorbing Lanyard: An EAL is a simple connector linking the worker to the anchor. Its fixed length often requires more fall clearance because it increases free fall. The advantage is predictability: Fixed length reduces swing-fall variables. Always check manufacturer data, not just lanyard length, to confirm required clearance.

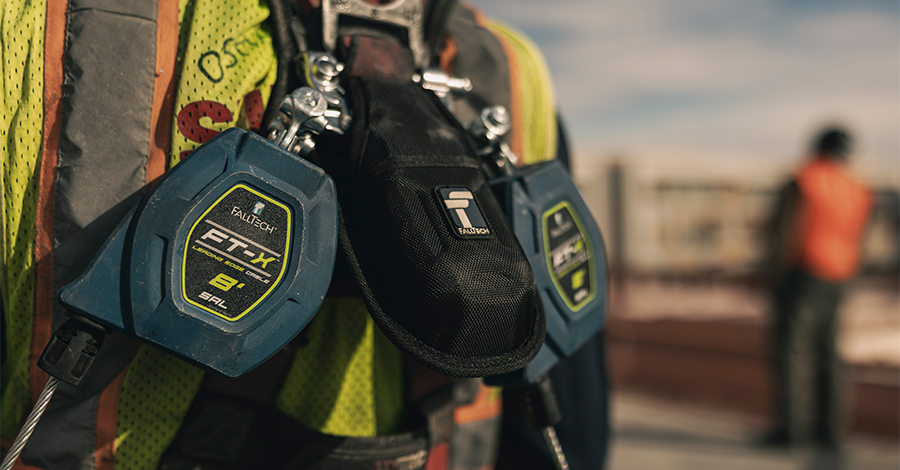

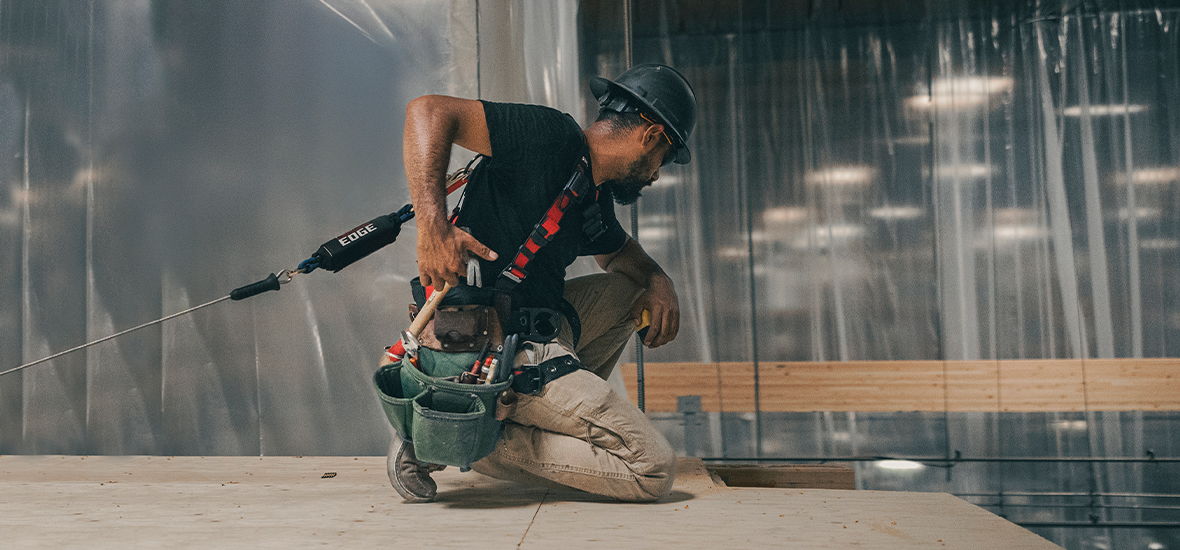

Self-Retracting Lifeline: An SRL is a mechanical connector that extends and retracts with worker movement. It locks when it senses sudden acceleration from a fall, greatly reducing fall clearance—especially when anchored at or above the D-ring. Higher-quality SRLs allow smooth movement while locking reliably during an actual fall.
Leading-Edge SRL: Leading-edge SRLs use lifelines designed to withstand falls over edges. ANSI classifies these as Class 2 devices. Non-leading-edge SRLs are Class 1.
Horizontal Lifeline (HLL): HLL systems add complexity to clearance calculations. Line sag can increase fall distance by several feet depending on span and design. Always review the manufacturer’s HLL and SRL instructions when calculating total clearance.
Comparisons and Use Cases: How the Math Changes
The connector you use and where you anchor it have a major impact on your fall clearance. Here are sample calculations that use the factors discussed above.
Sample Calculation with an Energy-Absorbing Lanyard Anchored Overhead
A lanyard presents a problem of freefall that correlates to its fixed length. Due to the fixed length, we measure fall clearance for EALs from the connected anchor point.
Let’s create a sample calculation with a 6-foot-tall worker using a 6-foot-long EAL. This calculation will have five factors and a formula of A + B + C + D + E = F.
| A | Lanyard Length | 6 ft. |
| B | Deceleration Distance | 3½ ft. |
| C | Harness Stretch | 1 ft. |
| D | D-Ring Height | 5 ft. |
| E | Safety Factor | 1½ ft. |
| F | MRFC | 17 ft. |
Our minimum required fall clearance comes to 17 feet. For perspective, a typical residential floor is about 10 feet tall, and a commercial floor is usually 10 to 15 feet.
Sample Calculation with an SRL Anchored Overhead
An SRL has a variable lifeline that can lock quickly to arrest a fall. When anchored overhead or at D-ring level, this fast lock-up greatly reduces the fall clearance you need. Due to the variable length, we measure fall clearances from the walking-working surface. (Think where the feet start to where the feet end up after a fall.)
Because an SRL works differently than an EAL, the factors you consider also change. There’s no fixed lanyard length to include, but swing-fall becomes a key risk (no more than 4 feet) if the worker is offset from the anchor. You also use the SRL’s arrest distance instead of a lanyard’s deceleration distance.
| A | Arrest Distance | 3½ ft. |
| B | Harness Stretch | 1 ft. |
| C | Safety Factor | 1½ ft. |
| D | Swing-Fall | 4 ft. |
| E | MRFC | 10 ft. |
Our overhead SRL calculation is 7 feet lower than the EAL calculation. This setup is ideal because it greatly reduces fall-clearance risk.
Sample Calculation with an SRL Anchored Foot-Level
Anchoring an SRL below the D-ring may be convenient for some applications, but it greatly increases the fall clearance required.
It also adds another factor to your calculation: worker D-ring height, which increases the distance the SRL must cover before it can fully arrest the fall.
| A | Arrest Distance | 8½ ft. |
| B | Harness Stretch | 1 ft. |
| C | Safety Factor | 1½ ft. |
| D | D-Ring Height | 5 ft. |
| E | Swing-Fall | 4 ft. |
| F | MRFC | 19 ft. |
Our total fall clearance has almost doubled compared to the overhead anchor setup, increasing from 10 feet to 19 feet.

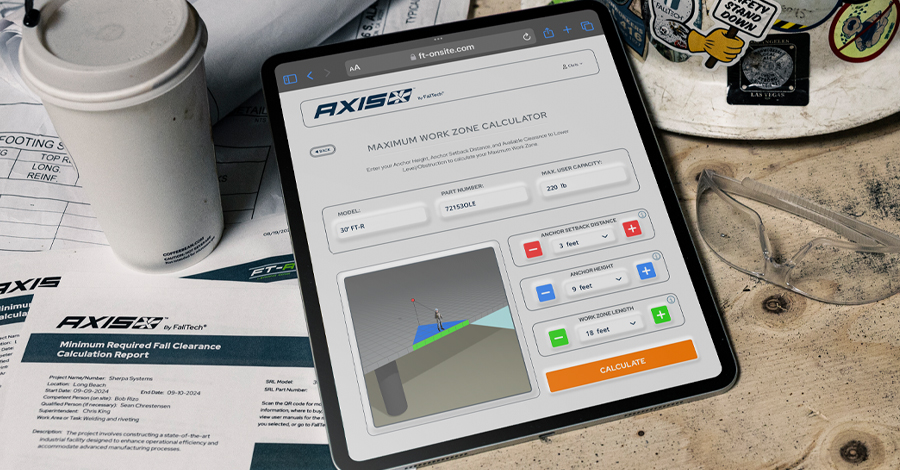

Using the AXIS Fall Clearance Calculator
Digital fall clearance calculators have made the math easier, but most are still very general. Fall clearance is a three-dimensional problem, yet many tools reduce it to a flat, two-dimensional estimate. The AXIS fall distance calculator removes this guesswork. Built into FallTech premium Class 2 SRLs, AXIS calculates in full 3D and delivers inch-level accuracy for any anchor height or worker weight.
Field Checks to Reduce Fall Clearance Errors
Measure Anchor Height and Record D-Ring Height
Always measure the anchor height from the worker’s feet and record the D-ring height before calculating.
Use Manufacturer Clearance Charts When Required
Manufacturer charts show the recommended clearances. When you’re not using AXIS, refer to these charts to confirm the total required clearance.
Confirm Swing Risk Before You Start Work
Offset tie-offs can create swing fall—a dangerous pendulum effect. Before starting work, check the anchor position, confirm the swing angle (no more than 30 degrees), and use AXIS to verify the risk or reference your manufacturer’s user manual.
Always Verify Your Fall Clearance Number Before Every Job
Every fall protection plan starts with one question: Do we have enough clearance?
- Understand the math.
- Choose the right gear.
- Confirm clearance before anyone starts work.
Use the FallTech AXIS fall distance calculator or check the clearance charts for your system. For leading-edge SRLs and other self-retracting devices, confirming the right distance helps ensure the system can arrest a fall and allow for a timely rescue.
