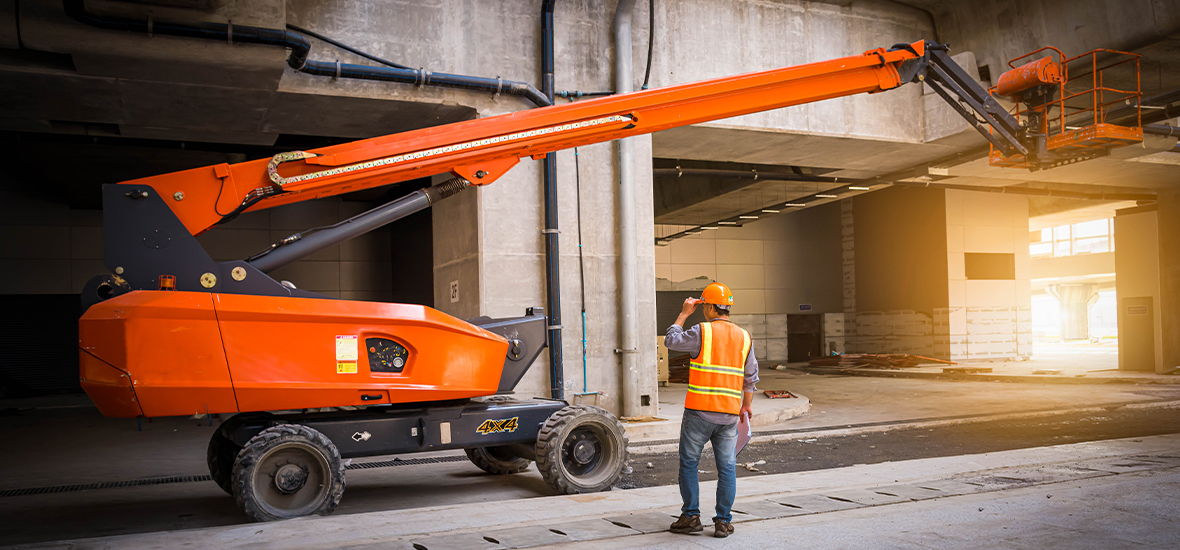

Aerial Lift Safety: How to Select the Right SRL for Fall Protection

Choosing the right Self-Retracting Lifeline (SRL) in an aerial lift isn’t as simple as “tie off and go.” Anyone who’s spent time around boom lifts or bucket trucks has seen how the wrong device can create swing fall hazards, clearance problems, or anchor compatibility issues. That’s why aerial lift safety starts with understanding what problem you’re trying to solve.

In some lifts, restraint is the best option because it prevents an ejection altogether. In others, fall arrest may be acceptable—but only if the equipment, anchors, and clearance all line up.

This article breaks down SRL behavior, classes, and anchor configurations in plain language so you can make informed decisions about aerial lift fall protection before you ever step into the platform.

What Self-Retracting Lifelines Do in Aerial Lifts

Inside an aerial lift, an SRL is meant to manage movement and arrest a fall if one occurs. Unlike fixed-length lanyards, SRLs pay out and retract as the worker moves, then lock quickly when a fall starts. In theory, that mobility makes work easier in boom lifts, scissor lifts, and bucket trucks.

In practice, performance details matter. Fast lockup is critical because it may help limit ejection distance. Smooth braking helps reduce peak forces on the worker, the anchor, and even the lift itself. Poor braking or nuisance lockups can increase risk by throwing a worker off balance.

Preventing Swing Fall Hazards in Boom and Scissor Lifts

Swing fall risk increases anytime a worker moves laterally away from the anchor. In a lift platform, the anchor is rarely centered over the worker’s fall path. If a worker goes over a rail, they won’t drop straight down—they’ll swing back toward the anchor, often across the platform opening or gate.

Platform geometry and gate placement matter. A narrow gate opening or offset anchor can change the fall arc, increasing the chance of striking the lift structure during arrest.

Fall Clearance Distance with Overhead and Platform Anchors

Anchor height has a direct impact on total fall distance. In lifts, anchors are typically at or below the worker’s dorsal D-ring. That means activation distance, deceleration distance, and worker height all stack up quickly.

This is why fall clearance calculation is so critical. If a worker is tied off at mid-rail height and gets ejected, the rail effectively becomes the anchor height. Without enough clearance below the platform, arresting the fall may not prevent ground contact.

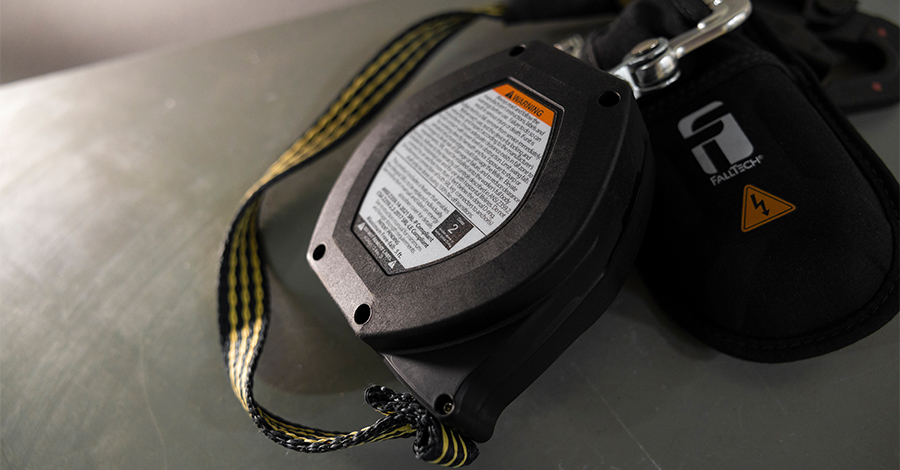

Understanding Class 1 and Class 2 SRLs for Aerial Lifts

ANSI Z359.14 defines two SRL classes based on how they perform relative to anchor location. A Class 1 SRL is optimized for overhead anchorage. A Class 2 SRL is tested for use at or below the dorsal D-ring, including leading-edge scenarios.

Because most aerial lift anchors are not overhead, lifts often fall squarely into Class 2 territory—even if that reality creates cost and selection challenges.

How Class 1 SRLs Perform on Overhead Anchors

A Class 1 SRL can perform well when used exactly as designed: overhead, with minimal lateral movement.

In lifts, true overhead anchorage rarely exists. That’s why Class 1 devices should only be used in lifts when the manufacturer explicitly allows it, and the anchorage meets the required geometry.

When Class 2 SRLs are Needed for Utility and Maintenance Work

Edge exposure, bucket rims, platform gates, and anchor variability make Class 2 SRL devices the safer default in many lift applications.



If a worker goes over a rail, the energy absorber must be on the correct side of the system (the one closer to the worker) to function properly. Class 2 designs account for that reality.

How SRL-P Units Activate in Confined Lift Platforms

A personal SRL (SRL-P) is built compact, attaches onto the harness, with shorter lifeline lengths and faster activation.

In tight platforms, that reduced payout helps limit fall distance and improves compatibility with platform-level anchors. These devices are often easier to manage inside the basket without excessive slack.

Choosing the Right Leading Edge SRL for Lift Applications

Inside a lift, leading edges are everywhere—bucket rims, gate frames, rail intersections, and sharp metal components. Even if an edge isn’t razor sharp, abrasion and edge loading still matter.

A leading edge SRL is tested for below D-ring anchorage and edge exposure. Cut resistance and abrasion performance become critical when the lifeline may contact the platform structure during a fall. In many lift scenarios, a leading edge self-retracting lifeline is simply the safer choice.

Correct Anchor Point Tie-Off in Aerial Lifts

Not all steel is an anchor. Guardrails are designed to hold 200 pounds—not to arrest a fall. Proper anchor point tie-off means using only manufacturer-designated anchor locations.

Manufacturer Designated Anchor Points and Labeling

OEM anchors should be clearly marked and rated. Workers should verify that the anchor is approved for fall protection and compatible with the chosen SRL and connector.

How to Perform an Anchor Point Inspection Before Use

Inspect lift anchors for cracks, corrosion, deformation, loose fasteners, and unreadable labels. If the anchor looks questionable, don’t use it. Tie-off is only as strong as what you’re tied to.

Full-Body Harness Selection for Lift Operators

A properly fitted full-body harness affects both comfort and safety. Poor fit can restrict movement, pull awkwardly during normal work, or increase injury risk in a fall.

Harness Features That Improve Mobility in Lift Platforms

Low-profile designs, good adjustability, comfortable leg straps, and stand-up D-rings all help in tight baskets. Hip D-rings can also support restraint configurations that reduce pull on the upper body.

Arc Flash Harness Options for Bucket Trucks

In energized environments, an arc flash harness may be required.

These harnesses must be paired with compatible SRLs to support bucket truck fall protection without introducing electrical hazards.

Fall Clearance Calculation for Aerial Lift Setups

Clearance must be evaluated for every lift position—not just the final working height. During travel, setup, or repositioning, clearance can change quickly.

How Anchor Height Changes Required Clearance

Anchoring above, at, or below the D-ring changes free fall distance and total clearance. Lower anchors always require more clearance.

Clearance Requirements for SRL-P Devices

SRL-P units reduce clearance demands, but they still require correct anchor placement and an understanding of activation distance.

Bucket Truck and Utility Specific SRL Needs

Boom flex, platform movement, and electrical exposure all influence SRL selection. Utility buckets often demand arc-rated, leading-edge-capable devices that differ from standard construction lifts.

FallTech SRLs for Aerial Lift Applications

FallTech offers several personal SRLs for lift use, including the FT-X EdgeCore SRL and its arc-rated counterparts.

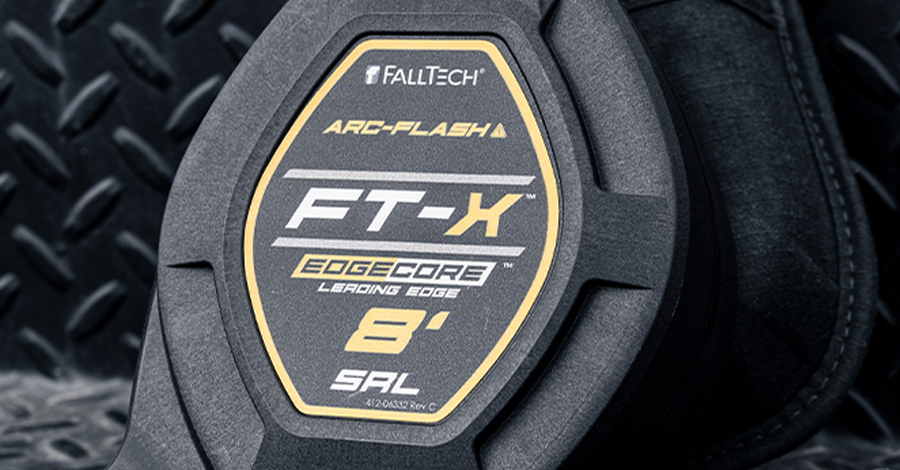

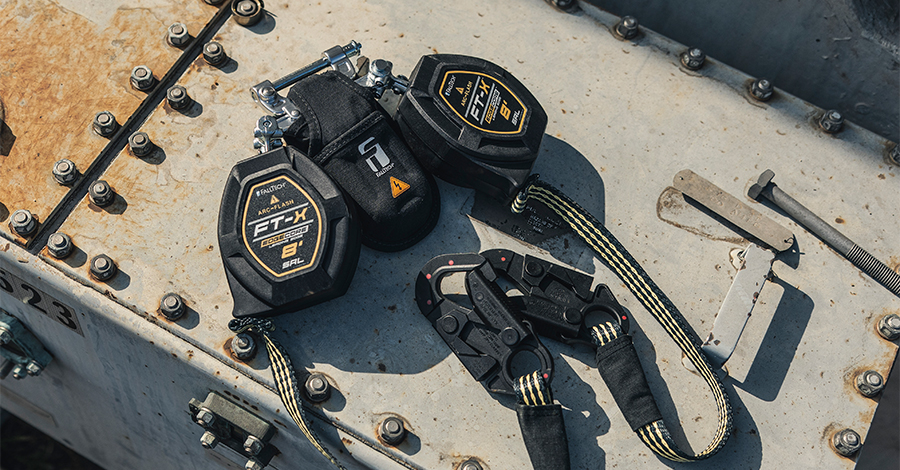

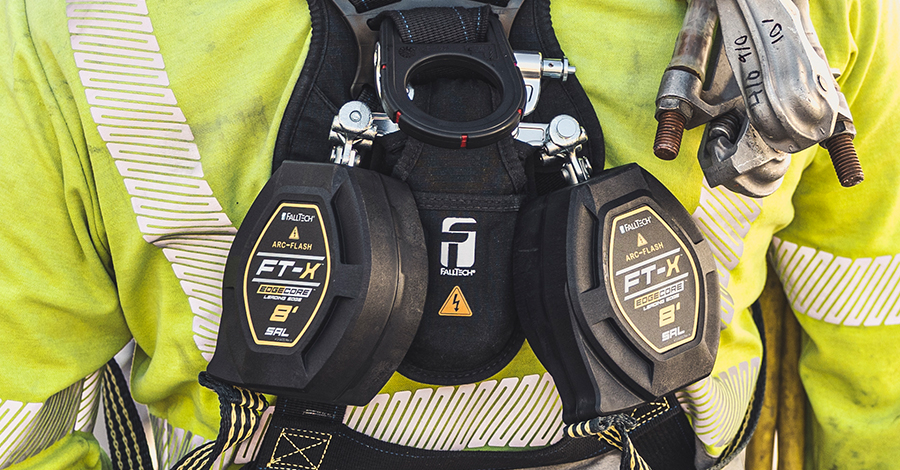

FT-X EdgeCore SRL-P for Leading Edge Conditions

The FT-X EdgeCore SRL uses a durable synthetic, Kevlar-reinforced lifeline with fast lockup, making it well suited for bucket rims and platform edges.

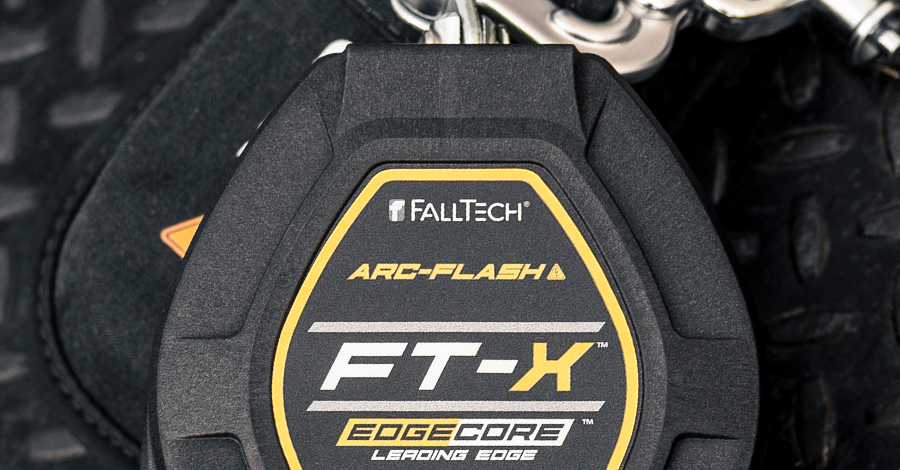

Arc Flash-Rated SRLs for Utility Crews

The FT-X EdgeCore Arc Flash SRL is an arc-rated SRL-P that uses a Kevlar® lifeline for enhanced heat resistance. When combined with an arc-rated harness, such as the FT-Arc Flash, this provides enhanced support for energized work environments.

Inspection, Storage, and Removal from Service

Inspect SRLs for:

• proper retraction
• smooth braking
• connector condition
• housing damage

Store devices properly inside lift compartments.

Rescue and Retrieval Planning for Lift Operations

Rescue enforcement is required after an SRL arrest. Suspension risk, limited access, and lift-specific constraints must be addressed.

When to Remove an SRL from Service

Remove SRLs immediately if lockup fails, webbing is damaged, corrosion is present, or activation indicators are deployed.

Choose the Right SRL Before You Enter the Platform

The right choice in SRL fall protection comes down to restraint first, proper anchorage, correct SRL class, and realistic clearance evaluation. Make those decisions before the lift goes up—and you’ll avoid learning hard lessons the dangerous way.
