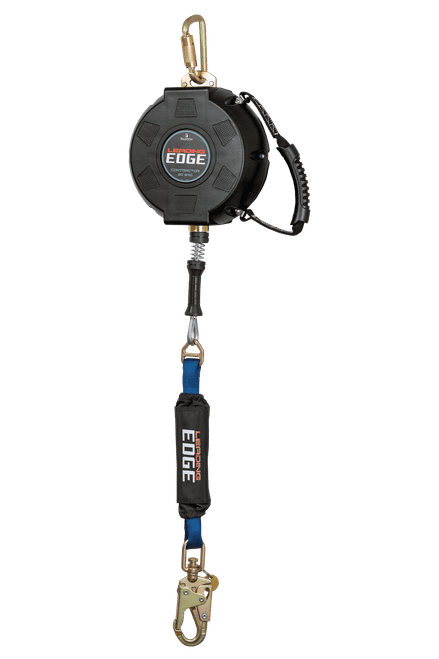

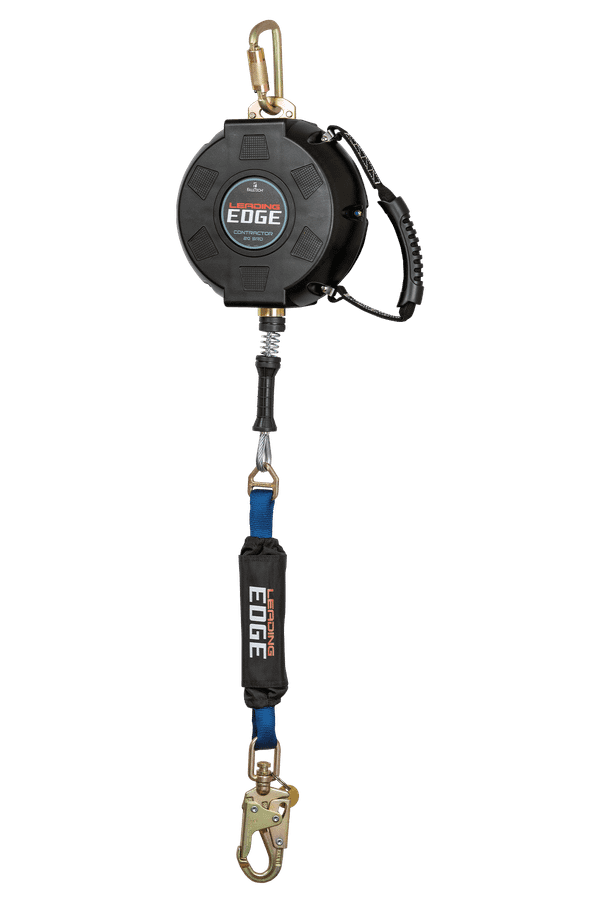

Contractor Leading Edge SRL with 50' Galvanized Steel Cable and Anchorage Carabiner - CSA
Product Specifications
C727650LE
Contact Sales
Contractor Leading Edge SRL with 50' Galvanized Steel Cable and Anchorage Carabiner - CSA
DOWNLOADS
Instruction Manual (ANSI)
Instruction Manual (CSA)
Declaration of Conformity (ANSI)
Declaration of Conformity (CSA)
Spec Sheet
Compliant With:
ANSI
Z359.14-2014
OSHA
1926.502 and 1910.66
CSA
Z259.2.2-2017
Facebook
Email
Print
Twitter
Linkedin
Pinterest
(You save
)
SKU:
C727650LE
UPC:
6th bullet:
Load-indicating snap hook provides visual fall event indication
7th bullet:
Complies with CSA Z259.2.2-17
4th bullet:
Durable glass-filled nylon housing extends service life
5th bullet:
Integrated lifeline hand-grip simplifies dorsal connection and recoil spring helps prevent lifeline lock-up
relevant standards 1:
ANSI Z359.14-2014
performance 6 header:
ANSI User Capacity
performance 5 detail:
42"
size 3:
C727630LE - 30' (CSA Compliant)
category tier 2:
Leading Edge SRLs
performance 5 header:
Max. Arrest Distance
3rd bullet:
Integrated external ViewPack® energy absorber strengthens the braking system and preserves lifeline integrity
parent part number:
727620LE
document name 4:
Declaration of Conformity (CSA)
performance 2 header:
ANSI SRL Class/Type
filter - overhead srl anchorage connector:
Carabiner
relevant standards 2:
OSHA 1926.502 and 1910.66
document name 1:
Instruction Manual (ANSI)
filter - overhead srl lifeline connector material:
Alloy Steel
other items you may need:
7395D, 7493A, 7035B
2nd bullet:
Internal inertial braking system provides positive stopping action and uniform deceleration.
material 2 detail:
Polyester tear-away
performance 3 detail:
900 lb
relevant standards 3:
CSA Z259.2.2-2017
material 3 detail:
Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
material 3 header:
Lifeline Connector
document file 1:
instruction_manuals/MSRD08_Rev_C_EN_SP_061319.pdf
filter - csa:
CSA Compliant
material 2 header:
Energy Absorber
material 1 header:
Cable
performance 4 header:
Max. Arrest Force
descriptor 1:
Includes steel anchorage carabiner
performance 4 detail:
1,800 lb
performance 1 header:
Static Strength
similar solutions:
7226CLE, 727630LE, 727620
performance 2 detail:
Class 1 SRL-P
performance 7 detail:
130 to 310 lb max.
document name 3:
Declaration of Conformity (ANSI)
family group:
Contractor Leading Edge SRL
filter - brand:
Contractor Leading Edge
category tier 3:
Contractor Leading Edge
document name 2:
Instruction Manual (CSA)
performance 6 detail:
130 to 310 lb max.
material 4 detail:
Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
filter - osha:
OSHA Compliant
material 4 header:
Anchorage Connector
size 2:
727630LE - 30' (ANSI Compliant)
filter - lifeline material:
Galvanized Steel Cable
document file 3:
declarations_of_conformity/D0615015_DOC.pdf
product type:
50' Galvanized Steel Cable
filter - ansi:
ANSI Compliant
performance 7 header:
OSHA User Capacity
material 1 detail:
7/32" galvanized steel; 3,400 lb min. static strength
performance 3 header:
Avg. Arrest Force
document file 4:
declarations_of_conformity/DC022009_DOC.pdf
size 1:
727620LE - 20' (ANSI Compliant)
performance 1 detail:
3,600 lb min.
size 5:
C727650LE - 50' (CSA Compliant)
1st bullet:
7/32" galvanized steel cable lifeline with load-indicating swivel snap hook
size 4:
727650LE - 50' (ANSI Compliant)
document file 2:
instruction_manuals/CMSRD08_Rev_A_030420_EN_FR.pdf
filter - overhead srl anchorage connector material:
Alloy Steel
filter - overhead srl lifeline connector:
Swivel Snap Hook
filter - length:
50'
