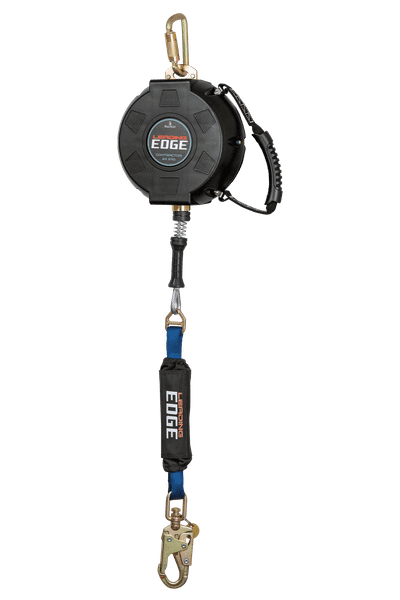

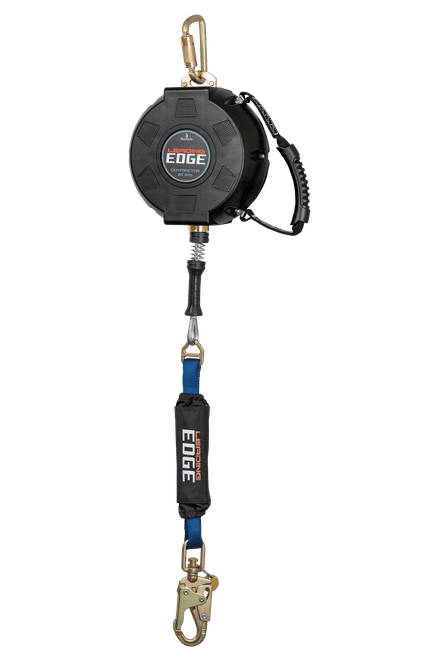

Contractor Leading Edge SRL with 30' Galvanized Steel Cable and Anchorage Carabiner - CSA
Product Specifications
C727630LE
Contact Sales
Contractor Leading Edge SRL with 30' Galvanized Steel Cable and Anchorage Carabiner - CSA
DOWNLOADS
Instruction Manual (ANSI)
Instruction Manual (CSA)
Declaration of Conformity (ANSI)
Declaration of Conformity (CSA)
Spec Sheet
Compliant With:
OSHA
1926.502 and 1910.66
ANSI
Z359.14-2014
CSA
Z259.2.2-2017
Facebook
Email
Print
Twitter
Linkedin
Pinterest
(You save
)
SKU:
C727630LE
UPC:
descriptor 2:
Galvanized Steel Wire Rope Lifeline
category tier 2:
Leading Edge SRLs
7th bullet:
Complies with CSA Z259.2.2-17
performance 7 header:
OSHA User Capacity
performance 5 detail:
42"
filter - csa:
CSA Compliant
filter - overhead srl lifeline connector material:
Alloy Steel
relevant standards 2:
OSHA 1926.502 and 1910.66
material 3 detail:
Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
performance 6 header:
ANSI User Capacity
filter - overhead srl anchorage connector material:
Alloy Steel
material 4 detail:
Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
descriptor 1:
Steel Swivel Snap Hook
filter - overhead srl anchorage connector:
Carabiner
similar solutions:
7226CLE, 727630LE, 727620
category tier 3:
Contractor Leading Edge
document name 1:
Instruction Manual (ANSI)
size 2:
727630LE - 30' (ANSI Compliant)
6th bullet:
Load-indicating snap hook provides visual fall event indication
5th bullet:
Integrated lifeline hand-grip simplifies dorsal connection and recoil spring helps prevent lifeline lock-up
4th bullet:
Durable glass-filled nylon housing extends service life
3rd bullet:
Integrated external ViewPack® energy absorber strengthens the braking system and preserves lifeline integrity
plp icon - srl - length:
30'
other items you may need:
7395D, 7493A, 7035B
2nd bullet:
Internal inertial braking system provides positive stopping action and uniform deceleration.
size 1:
727620LE - 20' (ANSI Compliant)
document name 4:
Declaration of Conformity (CSA)
document file 3:
declarations_of_conformity/D0415016a_DOC.pdf
performance 1 header:
Static Strength
performance 1 detail:
3,600 lb min.
filter - brand:
Contractor Leading Edge
performance 3 detail:
900 lb
filter - length:
30'
document file 2:
instruction_manuals/CMSRD08_Rev_A_030420_EN_FR.pdf
document file 1:
instruction_manuals/MSRD08_Rev_C_EN_SP_061319.pdf
filter - overhead srl lifeline connector:
Swivel Snap Hook
parent part number:
727620LE
relevant standards 1:
ANSI Z359.14-2014
size 5:
C727650LE - 50' (CSA Compliant)
1st bullet:
7/32" galvanized steel cable lifeline with load-indicating swivel snap hook
relevant standards 3:
CSA Z259.2.2-2017
performance 4 detail:
1,800 lb
size 4:
727650LE - 50' (ANSI Compliant)
material 2 header:
Energy Absorber
material 3 header:
Lifeline Connector
document name 2:
Instruction Manual (CSA)
product type:
CSA SRL-LE
filter - ansi:
ANSI Compliant
performance 2 header:
ANSI SRL Class/Type
performance 5 header:
Max. Arrest Distance
material 4 header:
Anchorage Connector
filter - lifeline material:
Galvanized Steel Cable
document file 4:
declarations_of_conformity/DC022008_DOC.pdf
material 2 detail:
Polyester tear-away
performance 2 detail:
Class 1 SRL-P
material 1 header:
Cable
performance 4 header:
Max. Arrest Force
size 3:
C727630LE - 30' (CSA Compliant)
filter - osha:
OSHA Compliant
material 1 detail:
7/32" galvanized steel; 3,400 lb min. static strength
performance 7 detail:
130 to 310 lb max.
family group:
Contractor Leading Edge SRL
performance 6 detail:
130 to 310 lb max.
document name 3:
Declaration of Conformity (ANSI)
performance 3 header:
Avg. Arrest Force
Current Stock:
×
×
