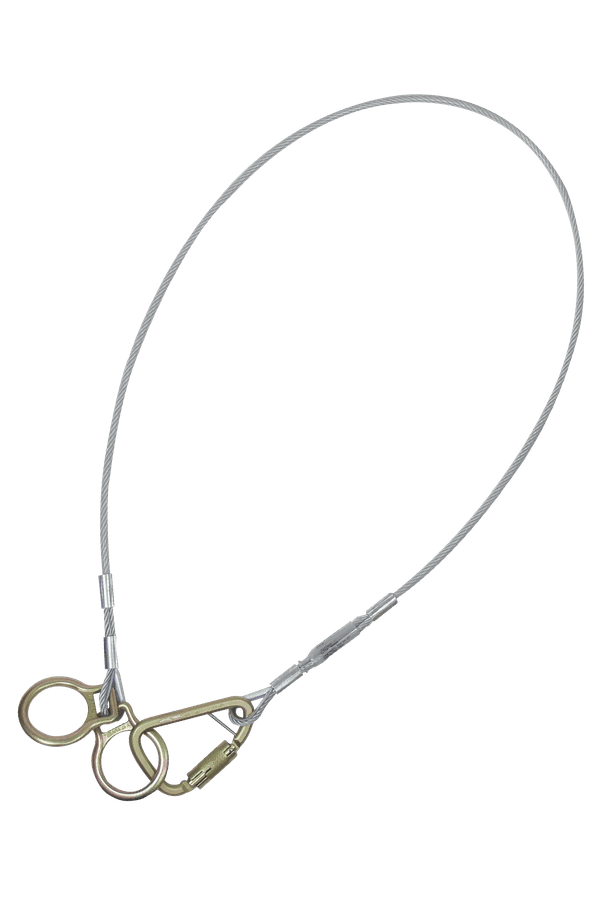

Cable Carabiner Sling Anchor with Vinyl Coated Galvanized Steel Cable

Name: Fall Tech
Address: 1306 S. Alameda St., Compton, CA 90221, Compton, CA, 90221, US
Telephone: (800) 719-4619

Contact Sales

This vinyl-coated cable sling anchor delivers durable wrap-around anchorage with improved surface protection and dependable connection performance in harsh work environments.

Product Overview

Downloads

Instruction Manual

Declaration of Conformity (ANSI)

Spec Sheet

Compliant With

ANSI Z359.18-2017

OSHA 1926.205 and 1910.66

SKU:: 84202DC
UPC:: 848013057143
Filter - Application:: Reusable
Material 2 Detail:: Plated alloy steel; 5,000 lb min. static strength
Performance 2 Header:: ANSI User Capacity
Similar Solutions:: 84202D, 7428, 7372, 7272
Material 2 Header:: D-rings
Performance 3 Header:: OSHA User Capacity
2nd Bullet:: Non-choking, trouble-free wrap-around and connect installation.
Family Group:: Multi-Application Anchorage
Performance 1 Header:: Static Strength
3rd Bullet:: Captivated carabiner and one connecting ring secure anchor to overhead structures
1st Bullet:: Hard-wearing 1/4" vinyl coated galvanized steel cable tolerates demanding work environments
Product Type:: Wrap-around Carabiner Cable Sling
8th Bullet:: Complies with ANSI Z359.18-2017
Performance 2 Detail:: 130 to 310 lb max.
Filter - Primary Material:: Coated/Uncoated Cable
Sizes Available:: 4 sizes available
Filter - ANSI:: ANSI Compliant
Filter - OSHA:: OSHA Compliant
Performance 3 Detail:: 130 to 425 lb max.
Filter - Anchor Type:: Sling/Wrap-around
Relevant Standards 1:: ANSI Z359.18-2017
parent part number:: 84202DC
Descriptor 1:: Vinyl Coated Galvanized Cable
Material 3 Detail:: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
Relevant Standards 2:: OSHA 1926.205 and 1910.66
Other Items You May Need:: 72706SB1, 82710SC1, 8240, 7008B
Material 1 Detail:: 1/4" vinyl coated galvanized steel; 5,000 lb min. static strength
Material 1 Header:: Cable
Descriptor 2:: Temporary and reusable
Material 3 Header:: Carabiner
7th Bullet:: Vinyl coating adds a layer of protection and provides easier clean-up
Performance 1 Detail:: 5,000 lb min.
4th Bullet:: Secondary connecting ring facilitates connection of SRL or lanyard
category tier 2:: Multi-Application
6th Bullet:: Assembled with steel thimbles and swaged aluminum ferrules
5th Bullet:: Features plated alloy steel connecting rings and carabiner
Instruction Manual:: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/instruction_manuals/MANC03_Rev_D_072022.pdf
Declaration of Conformity (ANSI):: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/declarations_of_conformity/A0118026a_DOC.pdf
Size 1:: 84202DC3 - 3'
Size 2:: 84202DC4 - 4'
Size 3:: 84202DC - 6'
Size 4:: 84202DC8 - 8'
BC Status:: Yes
Related Products:: 84202D,7428,7372,72706SB1,82710SC1,8240,7008B
BC Category:: 328
