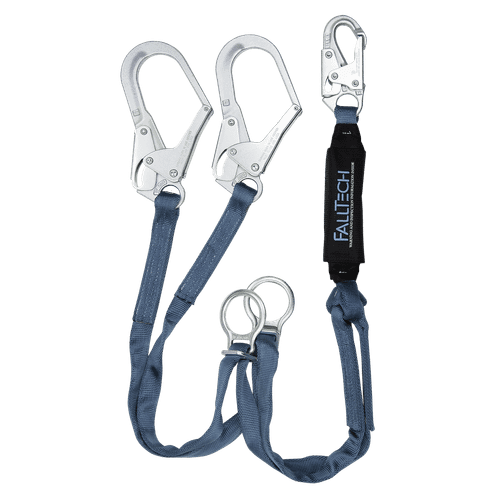

6' ViewPack® Tie-back Energy Absorbing Lanyard, Double-leg with Steel Snap Hooks

Name: Fall Tech
Address: 1306 S. Alameda St., Compton, CA 90221, Compton, CA, 90221, US
Telephone: (800) 719-4619

Contact Sales

Designed for wrap-around anchoring applications, this tie-back lanyard eliminates the need for separate anchorage connectors while supporting continuous tie-off and simplified inspection through the integrated ViewPack window.

Downloads

Instruction Manual

Declaration of Conformity (ANSI)

Spec Sheet

Compliant With:

ANSI Z359.13-2013

OSHA 1926.502 and 1910.66

SKU:: 826082D
UPC:: 848013088550
Performance 7 Header:: OSHA User Capacity
Performance 5 Header:: Max. Arrest Force
Material 2 Detail:: Polyester tear-away
Filter - Lanyard Material:: Jacketed Polyester Webbing
PLP Icon - EAL - Length:: 6'
PLP Icon - EAL - EA type:: External
Performance 2 Header:: ANSI Lanyard Class
4th Bullet:: ViewPack® cover also features WrapPack label protection
Similar Solutions:: 8241Y, 82608, 8260732D
Material 2 Header:: Energy Absorber
Performance 3 Header:: Max. Arrest Distance
Filter - Brand:: ViewPack®
Performance 7 Detail:: 130 to 310 lb max.
2nd Bullet:: Features Tie-back D-rings for wrap-around anchoring and eliminates the need for a separate tie-off anchor point.
Performance 4 Detail:: 900 lb
Family Group:: ViewPack® Lanyard
Performance 1 Header:: Static Strength
3rd Bullet:: Energy absorber features patented ViewPack® cover with inspection window
Performance 5 Detail:: 1,800 lb
1st Bullet:: Constructed with jacketed double-layer polyester webbing for added strength and abrasion resistance
Other Items You May Need:: 7078B, 72706TB1, 7530
Filter - Harness Attachment:: Snap Hook
Material 4 Header:: D-rings
Filter - OSHA:: OSHA Compliant
category tier 3:: ViewPack®
Material 3 Detail:: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
Filter - Connector Material:: Plated Alloy Steel
Performance 4 Header:: Avg. Arrest Force
Filter - ANSI:: ANSI Compliant
Filter - Anchorage Connector:: Snap Hook
Performance 3 Detail:: 48"
Material 3 Header:: Connectors
Relevant Standards 1:: ANSI Z359.13-2013
Filter - Configuration:: Double-leg
Descriptor 1:: Steel Snap Hooks
Material 1 Header:: Webbing
Performance 1 Detail:: 5,000 lb min.
Relevant Standards 2:: OSHA 1926.502 and 1910.66
Performance 2 Detail:: 6' free fall
Material 1 Detail:: Polyester; 5,000 lb min. static strength
Material 4 Detail:: Plated alloy steel; 5,000 lb min. static strength
Descriptor 2:: Double-leg
Product Type:: External Energy Absorbing Lanyard
7th Bullet:: Complies with ANSI Z359.13-2013
Filter - Leg Type:: Fixed Length
Performance 6 Header:: ANSI User Capacity
Performance 6 Detail:: 130 to 310 lb max.
category tier 2:: Energy Absorbing Lanyards
6th Bullet:: Double-leg design facilitates 100% tie-off
5th Bullet:: Includes alloy steel snap hooks for harness attachment and D-ring anchorage connections
Instruction Manual:: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/instruction_manuals/MSAL01ALX_Rev_A.pdf
Declaration of Conformity (ANSI):: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/declarations_of_conformity/C0116024_DOC.pdf
BC Status:: Yes
Related Products:: 8241Y,82608,8260732D,7078B,72706TB1,7530
BC Category:: 126
