14" Trailing Beam Anchor with Dual-clamp Adjustment

Name: Fall Tech
Address: 1306 S. Alameda St., Compton, CA 90221, Compton, CA, 90221, US
Telephone: (800) 719-4619

Contact Sales

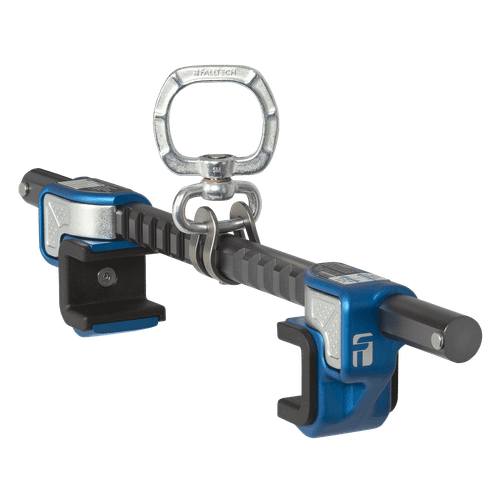

Designed for temporary beam anchorage applications, this trailing beam anchor glides smoothly along structural steel to maintain continuous protection during movement. Dual-adjusting clamps provide a secure fit across a wide range of beam sizes.

Downloads

Instruction Manual

Declaration of Conformity (ANSI)

Spec Sheet

Compliant With:

ANSI Z359.18-2017

OSHA 1926.502 and 1910.140

SKU:: 7530B
UPC:: 848013045041
Performance 2 Detail:: 130 to 310 lb max.
Filter - Anchor Type:: I-Beam/Clamping
Performance 3 Detail:: 130 to 425 lb max.
Performance 1 Header:: Static Strength
Filter - Application:: Mobile/Trailing
Material 3 Header:: Clamp Jaws
Material 2 Detail:: Aluminum alloy
Performance 1 Detail:: 5,000 lb min.
Filter - OSHA:: OSHA Compliant
Material 1 Header:: D-ring
Descriptor 1:: User-trailing mobility
Filter - ANSI:: ANSI Compliant
Material 3 Detail:: Plated alloy steel
Similar Solutions:: 7540A14, 7531
2nd Bullet:: Fits beam flanges from 3" to 14" wide and up to 1-1/4" thick.
category tier 2:: Steel
6th Bullet:: Complies with ANSI Z359.18-2017
5th Bullet:: For temporary mobile use on horizontal I-beams
Product Type:: I-beam Clamping
Family Group:: Steel Anchorage
Descriptor 2:: Dual-jaw adjustment
Filter - Primary Material:: Aluminum Alloy
Performance 2 Header:: ANSI User Capacity
1st Bullet:: Features aluminum crossbar and steel clamping jaws with nylon slider pads
Other Items You May Need:: 8127B, 8144B, 84108TP1, 82808TP1
Performance 3 Header:: OSHA User Capacity
3rd Bullet:: Dual adjusting jaws include concealed locking latches
4th Bullet:: Alloy steel D-ring remains centered on crossbar
Material 2 Header:: Crossbar
Material 1 Detail:: Plated alloy steel; 5,000 lb min. static strength
Instruction Manual:: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/instruction_manuals/MANC38_Rev_A_080124_EN_ES_BOOKLET.pdf
Declaration of Conformity (ANSI):: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/declarations_of_conformity/A0723071_DOC.pdf
BC Status:: Yes
Related Products:: 7540A14, 7531,7533,8144B,8247BA,82808TP1
Relevant Standards 1:: ANSI Z359.18-2017
Relevant Standards 2:: OSHA 1926.502 and 1910.140
BC Category:: 328
