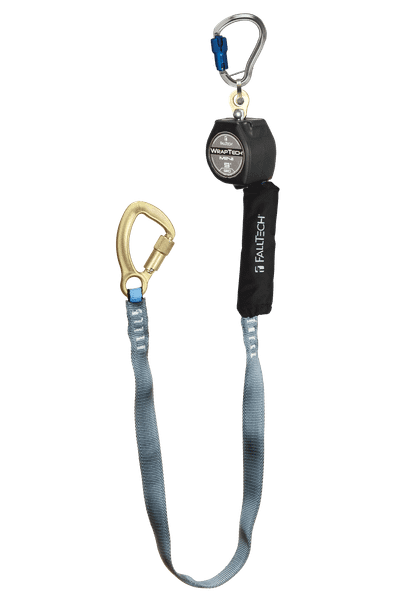

Designed for wrap-around anchorage applications, this compact mini SRL combines a durable Dyneema web lifeline with integrated energy absorption for dependable overhead fall protection. Its lightweight housing and wrap-tech capability help improve mobility and simplify tie-back connections on the jobsite.
Wrap-around anchorage connection eliminates the need for a separate tie-off anchor point
PLP Icon - SRL - Length:
9'
Filter - Length:
9'
Filter - Application:
Tie-Back
Material 1 Header:
Webbing
Filter - Personal SRL Anchorage Connector:
5k WrapTech® Carabiner
2nd Bullet:
Dyneema® web lifeline jacketed with polyester web for tie-back abrasion resistance.
Filter - Brand:
DuraTech® Mini
Material 3 Detail:
Plated alloy steel; 5,000 lb min. static strength with 5,000 lb gate strength
Performance 2 Header:
Max. Arrest Force
Material 4 Header:
Dorsal Connector
Performance 1 Detail:
3,000 lb min.
Filter - Personal SRL Dorsal Connector:
Carabiner
Family Group:
WrapTech® Mini Personal SRL
Material 3 Header:
Anchorage Connector
Filter - SRL Type:
9' WrapTech® Mini
category tier 2:
Personal SRLs
Filter - Lifeline Material:
Dyneema® Web
Filter - OSHA:
OSHA Compliant
Similar Solutions:
74709SA8, 74709SB8, 74709TB8
4th Bullet:
Nylon housing provides impact resistance in most worksite conditions
Performance 3 Header:
OSHA User Capacity
brand image:
5th Bullet:
Plated steel swivel-eye helps to prevent lifeline twisting and provide smooth operation
Other Items You May Need:
8450, 7078B
Material 2 Header:
Energy Absorber
6th Bullet:
Features 5k alloy steel WrapTech® Tie-back anchorage connector
Filter - Personal SRL Anchorage Connector Material:
Plated Alloy Steel
Filter - Personal SRL Dorsal Connector Material:
Aluminum Alloy
Material 2 Detail:
Polyester tear-away
Performance 2 Detail:
1,800 lb
3rd Bullet:
Features internal locking pawls and external ViewPack® energy absorber for even deceleration
8th Bullet:
May be anchored for 2' to 5' below the dorsal D-ring depending on the anchorage diameter for users weighing up to 310 lb max. where no edge exposures are present
9th Bullet:
Meets OSHA 1926.502 regulations
7th Bullet:
Includes aluminum alloy dorsal connecting carabiner
category tier 3:
DuraTech® Mini
Performance 1 Header:
Static Strength
Performance 3 Detail:
130 to 310 lb max.
Material 4 Detail:
Aluminum alloy; 5,000 lb min. static strength with 3,600 lb gate strength
