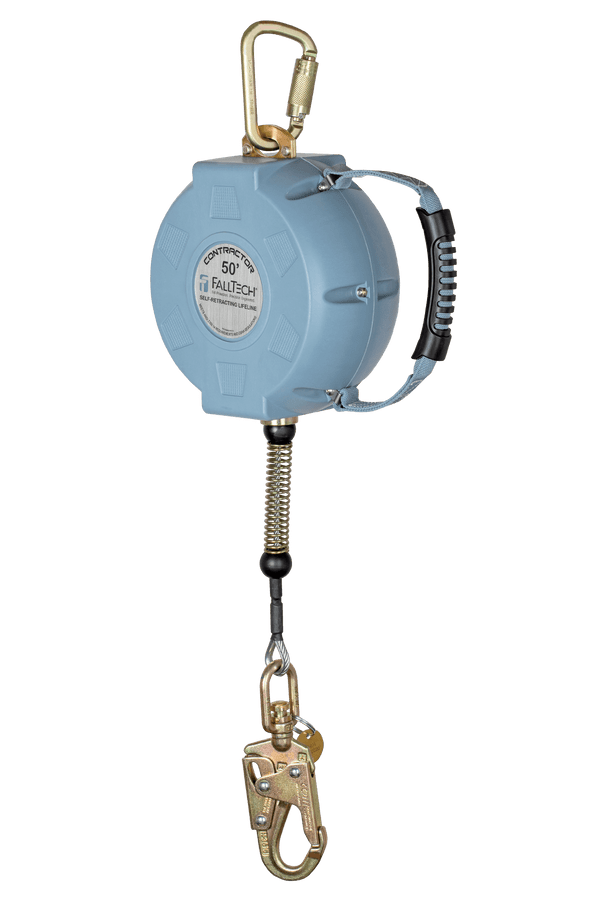

Contractor C Class 1 SRL with 50' Galvanized Cable and Anchorage Carabiner

SKU:

727650C

UPC:

document file 4:

declarations_of_conformity/DC022006_DOC.pdf

performance 5 header:

Max. Arrest Distance

material 2 detail:

Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength

performance 2 header:

ANSI SRL Class/Type

similar solutions:

727620, 727630C, 7276100, 7265C

family group:

Contractor Overhead Class 1 SRL

performance 6 header:

ANSI User Capacity

performance 5 detail:

42"

other items you may need:

7372, 7428

performance 2 detail:

Class 1 SRL

category tier 3:

Contractor SRLs

filter - lifeline material:

Galvanized Steel Cable

plp icon - srl - length:

50'

performance 3 detail:

900 lb

filter - overhead srl anchorage connector material:

Alloy Steel

material 1 header:

Cable

relevant standards 2:

OSHA 1926.502 and 1910.66

filter - srl type:

SRL

document name 4:

Declaration of Conformity (CSA)

performance 7 header:

OSHA User Capacity

document name 2:

Instruction Manual (CSA)

filter - length:

50'

document name 3:

Declaration of Conformity (ANSI)

document name 1:

Instruction Manual (ANSI)

filter - overhead srl lifeline connector material:

Alloy Steel

material 2 header:

Lifeline Connector

performance 3 header:

Avg. Arrest Force

size 6:

7276100 - 100' (OSHA Compliant)

2nd bullet:

Features glass-filled nylon housing for durable impact resistance.

performance 4 detail:

1,800 lb

performance 1 detail:

3,600 lb min.

document file 2:

instruction_manuals/CMSRL01_Rev_A_022120_EN_FR.pdf

1st bullet:

3/16" galvanized steel cable lifeline with load-indicating swivel snap hook

performance 6 detail:

130 to 310 lb max.

plp icon - srl - ansi class:

1

ansi z359.14-2021 srl class 1 or 2:

Class 1

size 5:

C727650 - 50' (CSA Compliant)

filter - brand:

Contractor

size 4:

727650C - 50' (ANSI Compliant)

size 1:

727620 -20' (ANSI Compliant)

performance 4 header:

Max. Arrest Force

filter - ansi:

ANSI Class 1 SRL Compliant

performance 1 header:

Static Strength

filter - overhead srl lifeline connector:

Swivel Snap Hook

3rd bullet:

Lifeline includes recoil spring bumper to reduce retraction lock-up

relevant standards 1:

ANSI Z359.14-2021

parent part number:

727620

descriptor 1:

Steel Swivel Snap Hook

document file 3:

declarations_of_conformity/D0304048_DOC.pdf

category tier 2:

Overhead SRLs

size 2:

727630C - 30' (ANSI Compliant)

4th bullet:

Rugged internal steel drum and inertial braking system deliver reliable performance

material 3 header:

Anchorage Connector

size 3:

C727630 - 30' (CSA Compliant)

material 1 detail:

3/16" galvanized steel; 3,600 lb min. static strength

material 3 detail:

Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength

descriptor 2:

Galvanized Steel Wire Rope Lifeline

product type:

Class 1 SRL

performance 7 detail:

130 to 310 lb max.

filter - overhead srl anchorage connector:

Carabiner

filter - osha:

OSHA Compliant

document file 1:

instruction_manuals/MSRL01_Rev_F_102022_EN.pdf

6th bullet:

Complies with ANSI Z359.14-2021 Class 1 SRL. Learn more and download White Paper

5th bullet:

SRL includes double-locking twist-lock anchorage carabiner
