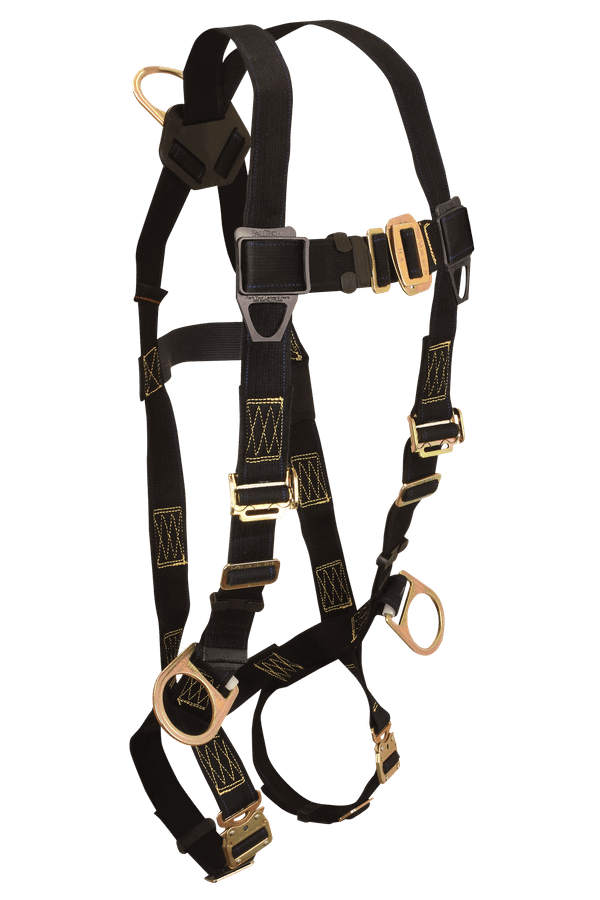

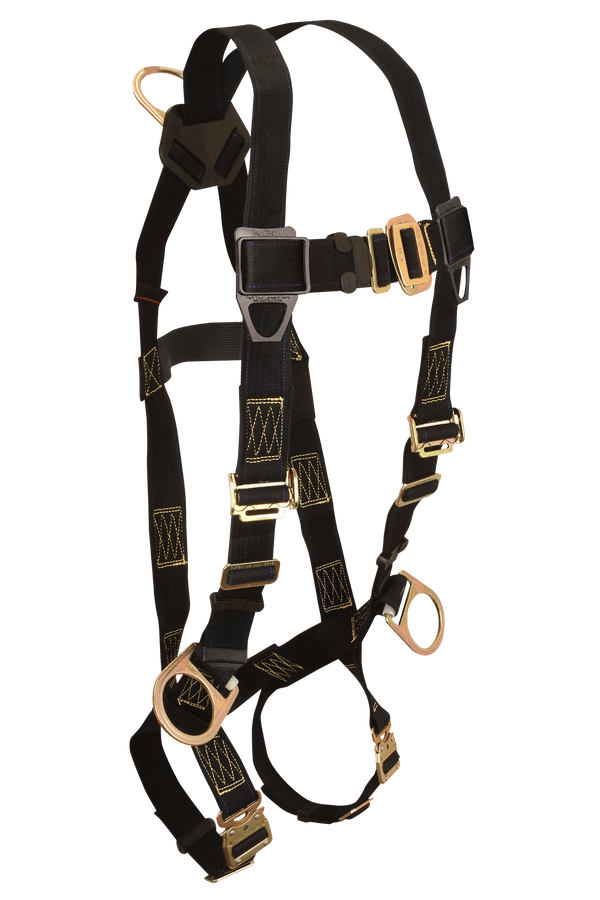

WeldTech® 3D Standard Non-belted Full Body Harness

SKU:

7039

UPC:

filter - buckles and adjusters:

Quick-connect Legs and Mating Buckle Chest

2nd bullet:

Nomex®/Kevlar® blend webbing delivers excellent burn and spatter resistance common in hot-work welding applications.

3rd bullet:

Friction roller torso adjusters provide simple upper-body adjustment

material 1 detail:

Nomex®/Kevlar®; 5,000 lb min. static strength

plp icon - fbh - d-rings:

3

document name 1:

Instruction Manual

filter - osha:

OSHA Compliant

family group:

WeldTech®

product type:

Non-Belted Full Body Harness

performance 2 header:

ANSI User Capacity

similar solutions:

7037, 7036A, 7038QC

performance 2 detail:

130 to 310 lb max.

4th bullet:

D-rings, mating buckle chest, and quick-connect leg closures are all durably finished with plated alloy steel construction

5th bullet:

Quick-connect buckles feature visual indicators showing positive connection

document file 1:

instruction_manuals/MFBH04_Rev_E_050525_EN_ES_FR.pdf

material 2 header:

D-rings

6th bullet:

Complies with ANSI Z359.11-2014

category tier 2:

Full Body Harnesses

filter - hardware material:

Plated Alloy Steel

size 1:

7039 - UniFit (S, M, L)

filter - webbing material:

Nomex®/Kevlar®

performance 3 header:

OSHA User Capacity

category tier 3:

WeldTech®

relevant standards 1:

ANSI Z359.11-2014

material 3 detail:

Plated alloy steel; 3,372 lb min. static strength

filter - ansi:

ANSI Compliant

document file 4:

sizing_charts/FallTech_Harness_Sizing_Chart_Men_2025.pdf

performance 1 detail:

3,600 lb min.

other items you may need:

8242, 8243, 7245, 8250LTWTA

filter - csa:

CSA Compliant

plp icon - fbh - leg connection:

QC

performance 1 header:

Static Strength

performance 3 detail:

130 to 425 lb max.

document name 2:

Declaration of Conformity

filter - d-ring connecting elements:

Dorsal and Hip

document name 3:

Declaration of Conformity (CSA)

descriptor 1:

3 D-Rings: Dorsal, Hip

filter - application:

Fall Arrest and Work Positioning, 3D

material 1 header:

Webbing

material 3 header:

Buckles and Adjusters

filter - configuration:

Non-Belted

filter - brand:

WeldTech®

document file 2:

declarations_of_conformity/B0917003b_DOC.pdf

document name 4:

Harness Sizing Chart

parent part number:

7039

size 2:

7039XL - XL

1st bullet:

Features Nomex® webbing with Kevlar® fiber core throughout shoulders, torso and legs for pliable user-comfort

relevant standards 2:

OSHA 1926.502 and 1910.140

document file 3:

declarations_of_conformity/BC1019028_DOC.pdf

descriptor 2:

Quick-Connect Leg Adjustment

material 2 detail:

Plated alloy steel; 5,000 lb min. static strength

relevant standards 3:

CSA Z259.10-2018

sizes available:

1 size available
