SteelGrip® Temporary Cable HLL System and Stanchions with 18" beam clamps

Name: Fall Tech
Address: 1306 S. Alameda St., Compton, CA 90221, Compton, CA, 90221, US
Telephone: (800) 719-4619

Contact Sales

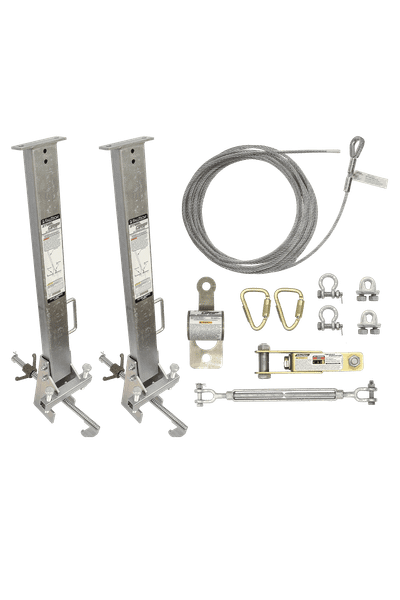

This complete temporary cable HLL system combines adjustable I-beam stanchions, galvanized cable, and integrated energy absorption to deliver fast, secure horizontal lifeline setup across structural steel applications.

Product Overview

Downloads

Instruction Manual

Declaration of Conformity (OSHA)

Brochure

Spec Sheet

Compliant With

Cable HLL System meets OSHA 1926.502 and 1910.140 regulations

SKU:: 6036018
UPC:: 848013090577
parent part number:: 6036018
Performance 1 Detail:: 5,000 lb min.
Size 1:: 6033018 - 30'
Material 3 Header:: Carabiners
Relevant Standards 1:: Cable HLL System meets OSHA 1926.502 and 1910.140 regulations
Sizes Available:: 4 sizes available
Material 1 Header:: Cable
Other Items You May Need:: 7372, 82706SB1
1st Bullet:: Complete 60' Single-span Temporary Cable HLL System
Performance 2 Header:: OSHA User Capacity
Similar Solutions:: 60260A, 620060
Performance 2 Detail:: 310 lb max. per user; 2 users max. per single span
Material 1 Detail:: 3/8" galvanized steel; 5,000 lb min. static strength
Size 2:: 6036018 - 60'
Family Group:: SteelGrip® Cable HLL
5th Bullet:: In-line tension indicator included with 2 galvanized steel shackles
2nd Bullet:: Includes two I-beam stanchions with 4" to 18" clamping range.
Filter - Lifeline Material:: Steel Cable
Material 2 Header:: Stanchions
Product Type:: With stanchions
3rd Bullet:: 3/8" galvanized steel cable with one-end terminated and thimbled
7th Bullet:: Cable HLL System meets OSHA 1926.502 and 1910.140 regulations
6th Bullet:: System also includes wire rope clips and tensioning turnbuckle
category tier 2:: Horizontal Lifelines
4th Bullet:: Features 1 stainless steel coil energy absorber and 2 connecting carabiners
Size 4:: 60310018 - 100' (includes 3 stanchions)
Filter - Cable HLL Assemblies:: Cable System Kits
Material 2 Detail:: Plated carbon steel post, base and clamp; 8,000 lb min. static strength
Performance 1 Header:: Static Strength
Material 3 Detail:: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
Filter - OSHA:: OSHA Compliant
Instruction Manual:: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/instruction_manuals/MHLL12_REV_F_021623.pdf
Declaration of Conformity (OSHA):: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/declarations_of_conformity/3ecf11990f8fd79f13a42b91cce7f9ba887f4e2f.pdf
Brochure:: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/sell_sheets/Steel_Grip_Brochure_2017.pdf
BC Status:: Yes
Descriptor 1:: 18" clamp range
Descriptor 2:: 3/8" galvanized steel cable
Related Products:: 60260A,620060,7372,82706SB1
BC Category:: 126

1306 S. Alameda St., Compton, CA 90221 | (800) 719-4619 | www.falltech.com 11/01/2026

SteelGrip® Temporary Cable HLL System and Stanchions with 18" beam clamps

Product Overview

Downloads

Compliant With

Keep Exploring

SteelGrip® Temporary Cable HLL System with Web Pass-through Anchors

SteelGrip® Single-span Temporary Cable HLL Assembly without Anchors

Pass-through Choker Anchor with Heavy-duty Wear Pad

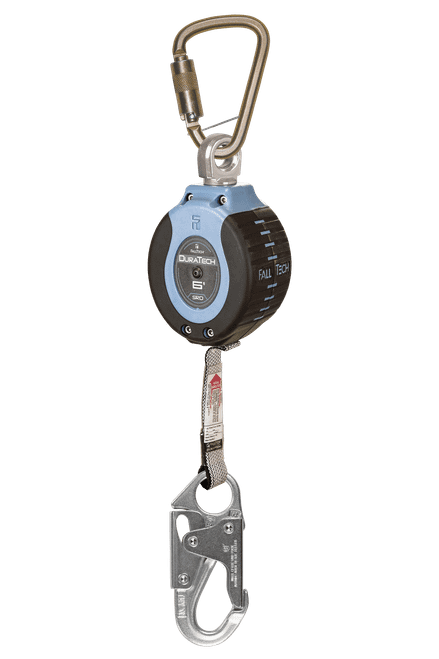

6' DuraTech® Personal SRL with Steel Snap Hook, Includes Steel Dorsal Connecting Carabiner
