SteelGrip® Temporary Cable HLL System and Stanchions with 12" beam clamps

Name: Fall Tech
Address: 1306 S. Alameda St., Compton, CA 90221, Compton, CA, 90221, US
Telephone: (800) 719-4619

Contact Sales

This complete temporary cable HLL system combines adjustable I-beam stanchions, galvanized cable, and integrated energy absorption to deliver fast, secure horizontal lifeline setup across structural steel applications.

Product Overview

Downloads

Instruction Manual

Declaration of Conformity (OSHA)

Brochure

Spec Sheet

Compliant With

Cable HLL System meets OSHA 1926.502 and 1910.140 regulations

SKU:: 6036012
UPC:: 848013076779
Material 2 Header:: Stanchions

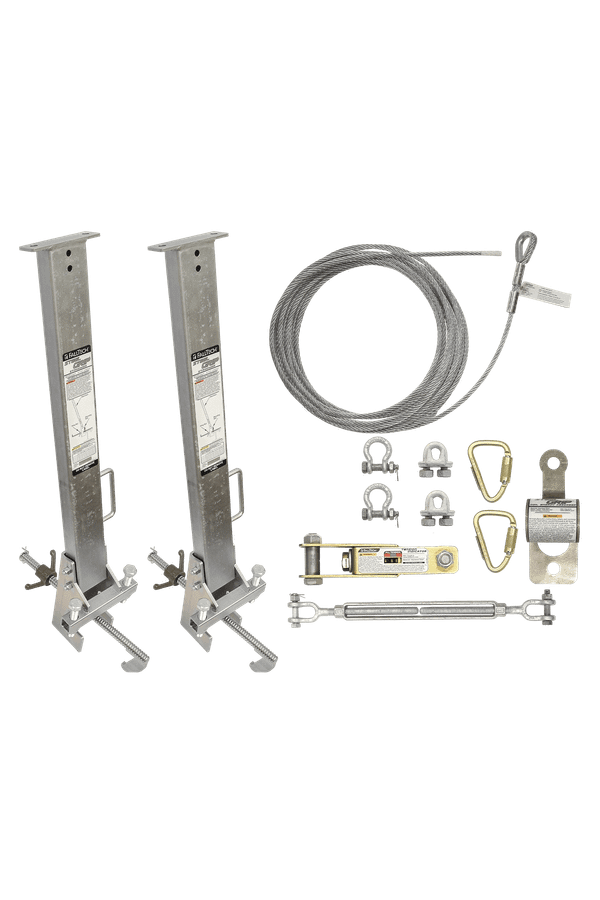

1st Bullet:: Complete 60' Single-span Temporary Cable HLL System
Similar Solutions:: 60260A, 620060
Size 2:: 6036012 - 60'
Material 1 Detail:: 3/8" galvanized steel; 5,000 lb min. static strength
Performance 1 Header:: Static Strength
Material 1 Header:: Cable
Filter - Lifeline Material:: Steel Cable
Size 4:: 60310012 - 100' (includes 3 stanchions)
Performance 2 Header:: OSHA User Capacity
3rd Bullet:: 3/8" galvanized steel cable with one-end terminated and thimbled
Material 2 Detail:: Plated carbon steel post, base and clamp; 8,000 lb min. static strength
Product Type:: With stanchions
Performance 1 Detail:: 5,000 lb min.
5th Bullet:: In-line tension indicator included with 2 galvanized steel shackles
6th Bullet:: System also includes wire rope clips and tensioning turnbuckle
7th Bullet:: Cable HLL System meets OSHA 1926.502 and 1910.140 regulations
Filter - Cable HLL Assemblies:: Cable System Kits
Material 3 Detail:: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
category tier 2:: Horizontal Lifelines
Sizes Available:: 4 sizes available
Other Items You May Need:: 7372, 82706SB1
Material 3 Header:: Carabiners
Filter - OSHA:: OSHA Compliant
parent part number:: 6036012
Family Group:: SteelGrip® Cable HLL
2nd Bullet:: Includes two I-beam stanchions with 4" to 12" clamping range.
4th Bullet:: Features 1 stainless steel coil energy absorber and 2 connecting carabiners
Relevant Standards 1:: Cable HLL System meets OSHA 1926.502 and 1910.140 regulations
Performance 2 Detail:: 310 lb max. per user; 2 users max. per single span
Instruction Manual:: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/instruction_manuals/MHLL12_REV_F_021623.pdf
Declaration of Conformity (OSHA):: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/declarations_of_conformity/3ecf11990f8fd79f13a42b91cce7f9ba887f4e2f.pdf
Brochure:: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/sell_sheets/Steel_Grip_Brochure_2017.pdf
BC Status:: Yes
Descriptor 1:: 12" clamp range
Descriptor 2:: 3/8" galvanized steel cable
Related Products:: 60260A,620060,7372,82706SB1
BC Category:: 126

1306 S. Alameda St., Compton, CA 90221 | (800) 719-4619 | www.falltech.com 11/01/2026

SteelGrip® Temporary Cable HLL System and Stanchions with 12" beam clamps

Product Overview

Downloads

Compliant With

Keep Exploring

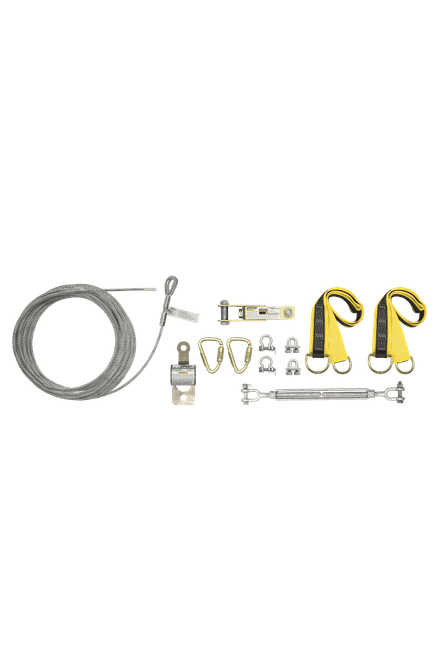

SteelGrip® Temporary Cable HLL System with Web Pass-through Anchors
