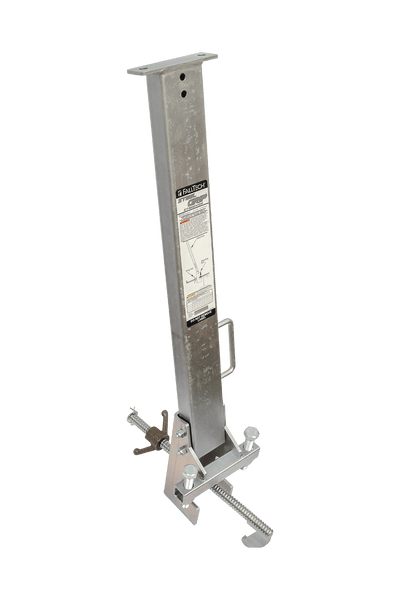

SteelGrip I-Beam Stanchion for HLLs

SKU:

603012K

UPC:

material 2 header:

Fasteners

1st bullet:

SteelGrip® I-Beam Stanchion with 12" clamp for Temporary Cable HLLs

document name 3:

Sell Sheet/Brochure

size 1:

603012K - 4"-12" Flange Beam Clamp

similar solutions:

603018K, 603024K

material 1 detail:

Plated carbon steel post, base and clamp; 8,000 lb min. static strength

size 3:

603024K - 4"-24" Flange Beam Clamp

performance 1 header:

Static Strength

material 1 header:

Stanchion

document file 3:

sell_sheets/Steel_Grip_Brochure_2017.pdf

performance 2 header:

OSHA User Capacity

3rd bullet:

Clamping rod and wing nut adjust to fit flanges from 4" up to 12" wide

material 2 detail:

7/8" and 1/2" grade 5 carbon steel

document name 2:

Declaration of Conformity

product type:

SteelGrip® HLL Stanchion

document file 2:

declarations_of_conformity/S0617003_DOC.pdf

5th bullet:

Stanchion base includes 7/8" Grade 5 securing bolts

2nd bullet:

42" plated steel I-beam stanchion with adjustable clamping rod

7th bullet:

Meets OSHA 1926.502 and 1910.66 regulations

document file 1:

instruction_manuals/MHLL11_Rev_A_080317.pdf

category tier 2:

Horizontal Lifelines

document name 1:

Instruction Manual

4th bullet:

Stanchion base fits I-beam flanges up to 2-1/4" thick

sizes available:

3 sizes available

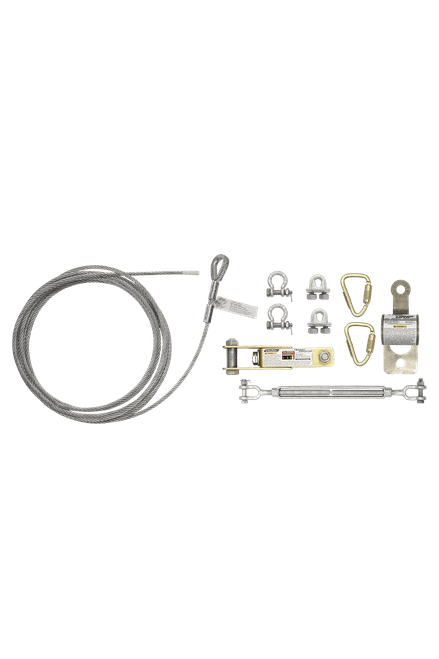

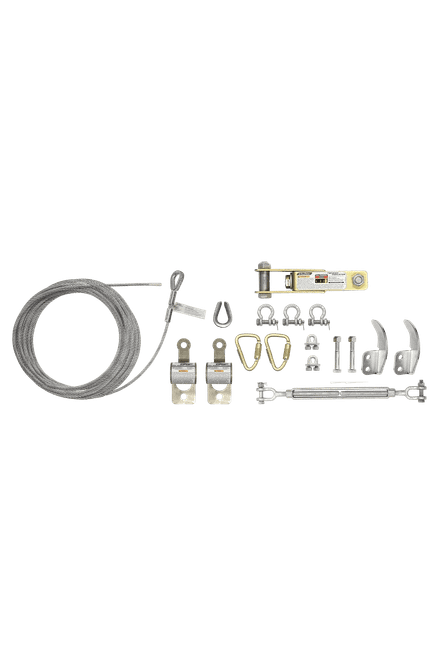

other items you may need:

630001T, 630018C, 630024C, 620060, 620100

performance 1 detail:

8,000 lb Min

filter - osha:

OSHA Compliant

6th bullet:

Features integrated carrying handle

family group:

I-Beam Stanchion

descriptor 1:

12" clamp range

parent part number:

603012K

filter - hll stanchions:

Steel I-beam Stanchions

relevant standards 1:

OSHA 1926.502 and 1910.66

performance 2 detail:

310 lb max. per user; 2 users max. per single span
