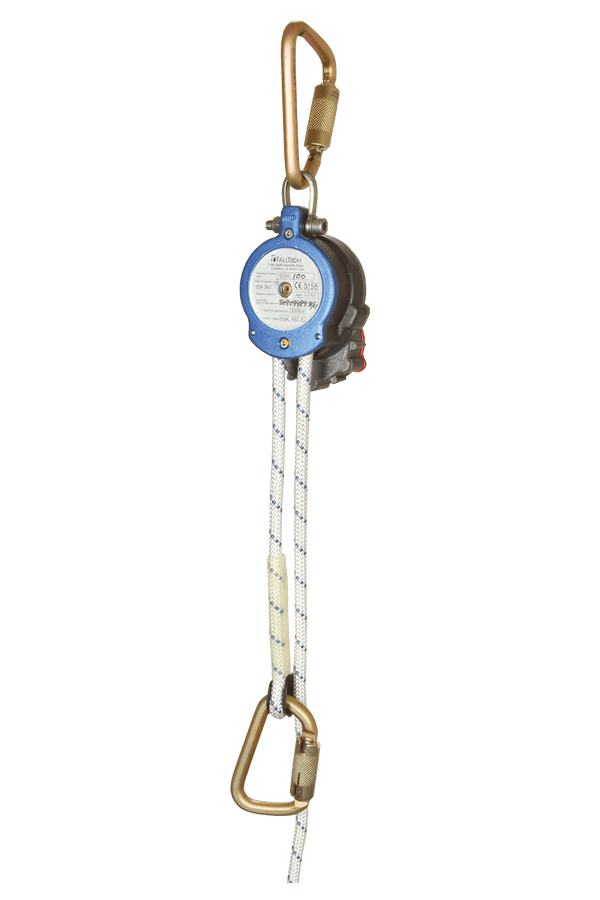

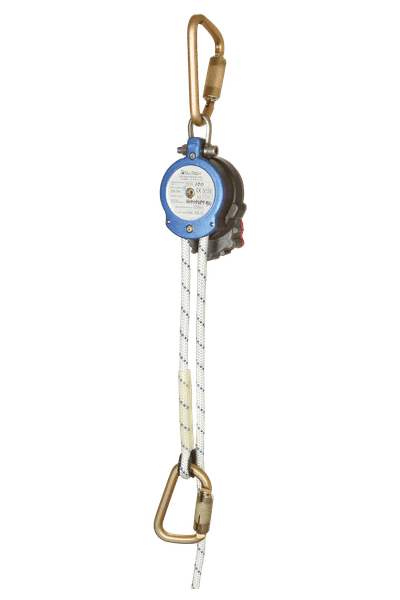

Controlled Descent Kit

Name: Fall Tech
Address: 1306 S. Alameda St., Compton, CA 90221, Compton, CA, 90221, US
Telephone: (800) 719-4619

Contact Sales

This compact controlled descent kit provides a reliable emergency escape and rescue solution for elevated work areas. Its constant descent-rate system helps support smooth, controlled lowering during critical rescue situations.

Downloads

Declaration of Conformity (ANSI)

FallTech for Utilities Brochure

Spec Sheet

Compliant With:

ANSI Z359.4-2013

SKU:: 5030
UPC:: 848013024107
category tier 2:: Rescue and Descent Kits
parent part number:: 5030
Material 3 Header:: Housing
Performance 5 Header:: Cumulative Descent Distance
Relevant Standards 1:: ANSI Z359.4-2013
Sizes Available:: 3 sizes available
Performance 5 Detail:: 2,620' with 440 lb
Performance 2 Detail:: 440 lb Single User
Performance 3 Detail:: 2.6' per second Single User
Performance 2 Header:: Max Descent Load
1st Bullet:: 11/32" sheathed-core kernmantle rope lifeline resists moisture and abrasion for longer life
Performance 4 Header:: Cumulative Descent Distance
Performance 1 Header:: Max Descent Height
Performance 3 Header:: Descent Speed
Material 2 Detail:: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
Descriptor 1:: Includes storage bag
Similar Solutions:: 5030100, 5031, 5030250
Product Type:: Descent System
Material 2 Header:: Connectors
2nd Bullet:: Lifeline assembly includes two sewn-end terminations with alloy steel carabiners for user connection.
Performance 4 Detail:: 25,152' with 220 lb
3rd Bullet:: Constant 2.6' per second single-user descent speed
6th Bullet:: Complies with ANSI Z359.4-2013
Performance 1 Detail:: 525' Single User
Material 3 Detail:: Powder coated aluminum
4th Bullet:: Features lightweight aluminum housing and pivoting alloy steel anchorage eye
5th Bullet:: Descent kit also includes alloy steel anchorage carabiner and storage bag
Material 1 Header:: Rope
Filter - ANSI:: ANSI Compliant
Other Items You May Need:: 68035EP, 7372
Material 1 Detail:: 11/32" kernmantle polyamide blend
Family Group:: Controlled Descent
Declaration of Conformity (ANSI):: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/declarations_of_conformity/D0215035_DOC.pdf
FallTech for Utilities Brochure:: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/sell_sheets/f35c8e70a2d3d92d856931852afd7352b7b696a7.pdf
Size 1:: 5030 - 60'
Size 2:: 5030100 - 100'
Size 4:: 5030250 - 250'
BC Status:: Yes
Related Products:: 68035EP,7372
BC Category:: 126
