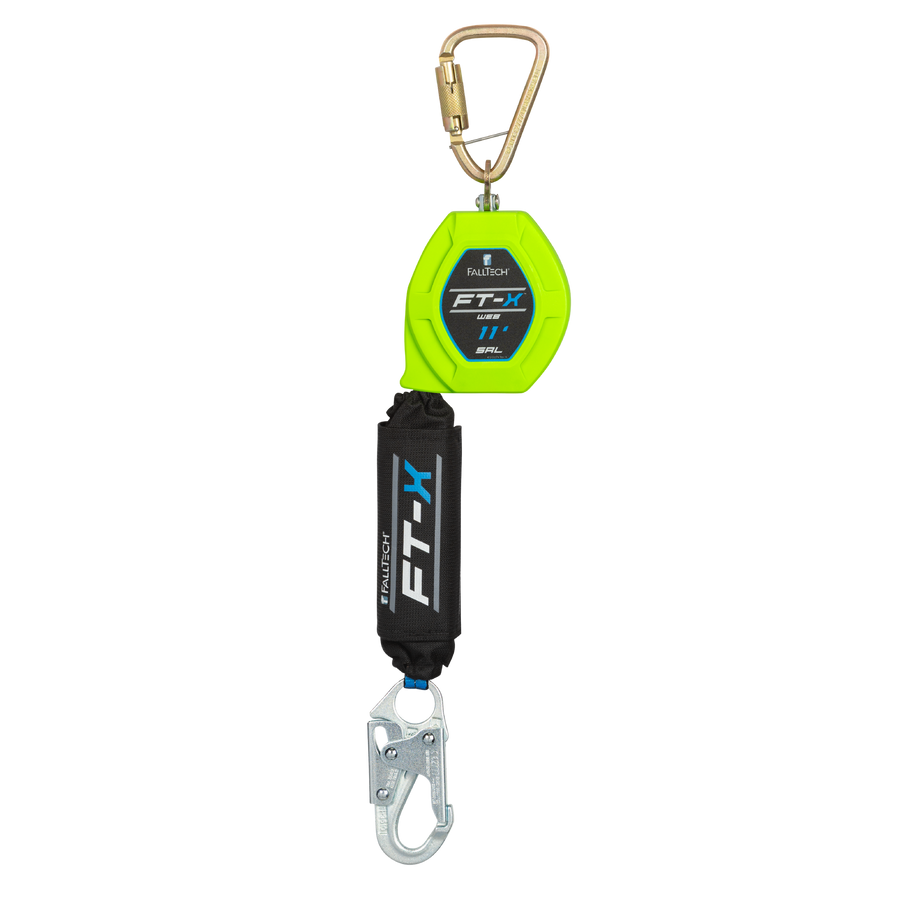

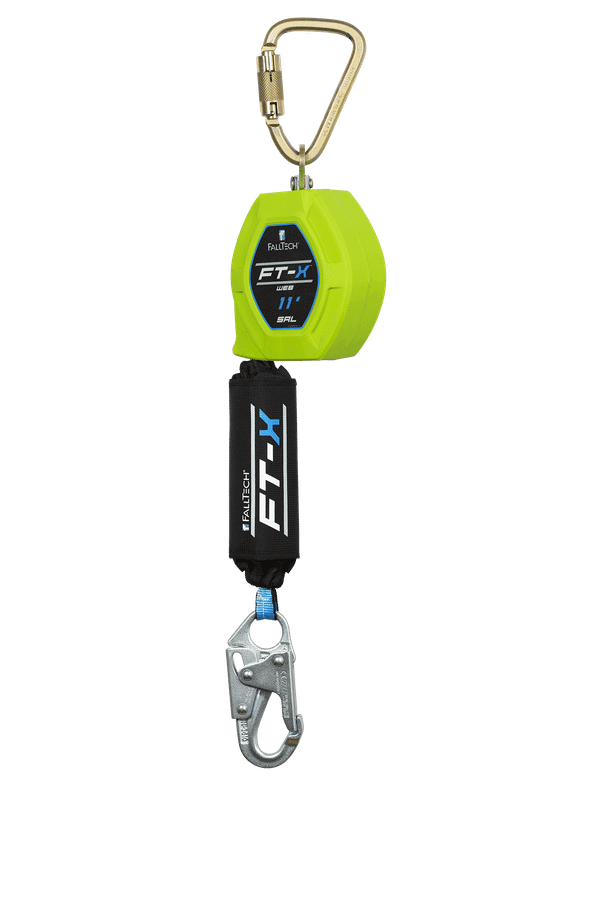

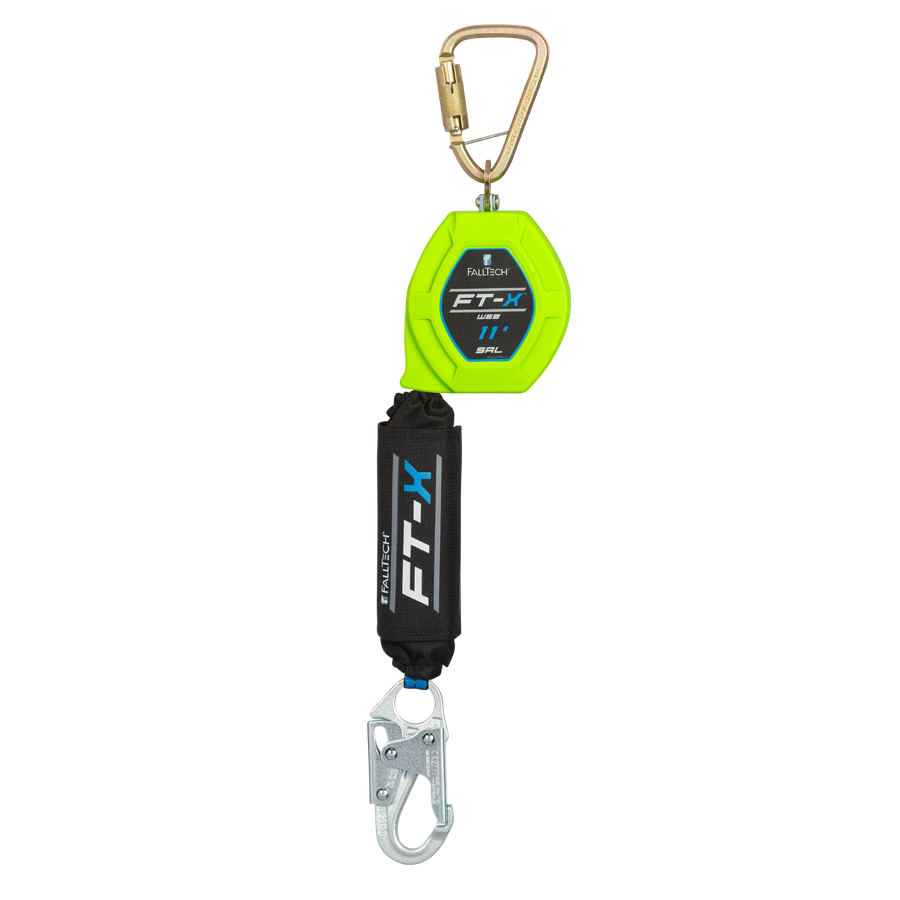

11' FT-X^® Web Class 1 SRL-P with Steel Snap Hook, Includes Steel Dorsal Connecting Carabiner

Product Specifications

84711SC1

11' FT-X® Web Class 1 SRL-P with Steel Snap Hook, Includes Steel Dorsal Connecting Carabiner

Name: Fall Tech
Address: 1306 S. Alameda St., Compton, CA 90221, Compton, CA, 90221, US
Telephone: (800) 719-4619

Contact Sales

Take on the job with confidence using the FT-X Web, the personal SRL that delivers rugged protection without the bulk. Its ultra-strong Dyneema® lifeline and heavy-duty ViewPack™ energy absorber are built to perform. Engineered for smooth, uninterrupted movement, the FT-X Web keeps you secure—without slowing you down.

Downloads

Instruction Manual

Declaration of Conformity (ANSI)

Declaration of Conformity (CSA)

Brochure

Sell Sheet

FT-X® Web 11' Flyer

Spec Sheet

Compliant With:

ANSI Z359.14-2021

OSHA 1926.502 and 1910.66

CSA Z259.2.2-2017

SKU:: 84711SC1
UPC:: 848013025067
Performance 7 Header:: OSHA User Capacity
Performance 6 Header:: ANSI User Capacity
document name 1:: Instruction Manual
Filter - SRL Type:: SRL-P
document file 2:: declarations_of_conformity/D1108062a_DOC.pdf
document file 3:: declarations_of_conformity/DC0824012_DOC.pdf
Performance 5 Header:: Max. Arrest Distance
2nd Bullet:: ViewPack® external energy absorber includes comprehensive fall clearance charts inside the cover
Filter - OSHA:: OSHA Compliant
document file 4:: sell_sheets/FT-X_11_Web_Brochure_052023.pdf
5th Bullet:: Features plated alloy steel snap hook leg-end connector
4th Bullet:: Engineering housing material provides durability at low weight. Light green color denotes the non-leading edge capability of Class 1 SRLs
3rd Bullet:: Internal mechanism design minimizes unintentional lockups to keep you moving freely and productively
document name 4:: Sell Sheet/Brochure
category tier 3:: FT-X® Web
category tier 2:: Personal SRLs
Material 4 Detail:: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
Performance 3 Detail:: 1,350 lb max.
Material 1 Header:: Webbing
document file 1:: instruction_manuals/MSRD26_Rev_D_013125_EN_ES_FR_BOOKLET.pdf
Performance 4 Detail:: 1,800 lb
Filter - CSA:: CSA Compliant
Product Type:: Class 1 SRL-P
white cap - package weight:: 14.8
Performance 7 Detail:: 130 to 420 lb max.
white cap - package height uom:: Inches|INH
white cap - package depth uom:: Inches|INH
white cap - package width:: 12
Family Group:: FT-X® Web Class 1 SRL-P
Filter - ANSI:: ANSI Class 1 SRL-P Compliant
Filter - Personal SRL Dorsal Connector:: Carabiner
white cap - gtin:: 00848013025067
Material 3 Detail:: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
ansi z359.14-2021 srl class 1 or 2:: Class 1
white cap - package width uom:: Inches|INH
Other Items You May Need:: 8127B, 8143, 7372, 5040, 7530
Filter - Personal SRL Dorsal Connector Material:: Plated Alloy Steel
white cap - package height:: 6
white cap - package weight uom:: Pound|LBR
brand image:: Logo_FT-X_Web.png
Material 2 Detail:: Polyester tear-away
white cap - total shelf life:: 10000
document name 5:: FT-X® Web 11' Flyer
Material 4 Header:: Swivel Eye Connector
Performance 1 Header:: Static Strength
white cap - country of origin:: 840
Descriptor 1:: Steel Snap Hook
document name 3:: Declaration of Conformity (CSA)
Material 3 Header:: Leg-End Connector
Filter - Brand:: FT-X® Web
PLP Icon - SRL - ANSI Class:: 1
white cap - unspsc code:: 46182305
document file 5:: sell_sheets/FT-X_11ft_Flyer_062023.pdf
Material 2 Header:: Energy Absorber
Material 1 Detail:: Dyneema®; 4,500 lb min.
8th Bullet:: May be anchored up to 5' below the dorsal D-ring with no edge hazards for user's weighing up to 310 lb max.
7th Bullet:: Rated for workers weighing up to 420 pounds, including clothes, tools, gear, etc.
Filter - Length:: 11'
white cap - selling uom:: EA - Each|EA
Filter - Personal SRL Anchorage Connector Material:: Plated Alloy Steel
Filter - Personal SRL Anchorage Connector:: Snap Hook(s)
Filter - Lifeline Material:: Dyneema® Web
document name 2:: Declaration of Conformity (ANSI)
PLP Icon - SRL - Length:: 11'
9th Bullet:: Complies with ANSI Z359.14-2021 Class 1 SRL-P. Learn more and download White Paper
Descriptor 2:: Dyneema® Web Lifeline
Similar Solutions:: 84711SC3, 84711SA1, 84108SP1, 72706SB1
white cap - package depth:: 17
Performance 2 Detail:: Class 1 SRL-P
Performance 2 Header:: ANSI SRL Class/Type
Performance 3 Header:: Avg. Arrest Force
Performance 4 Header:: Max. Arrest Force
Performance 5 Detail:: 42"
Performance 6 Detail:: 130 to 310 lb max.
1st Bullet:: Dyneema® web lifeline provides ultimate durability with industry proven strength
6th Bullet:: Includes plated alloy steel connecting carabiner
Filter - Configuration:: Single-leg
Performance 1 Detail:: 3,600 lb min.
Instruction Manual:: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/instruction_manuals/MSRD26_Rev_D_013125_EN_ES_FR_BOOKLET.pdf
Declaration of Conformity (ANSI):: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/declarations_of_conformity/D1108062a_DOC.pdf
Declaration of Conformity (CSA):: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/declarations_of_conformity/DC0824012_DOC.pdf
Brochure:: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/sell_sheets/FT-X_11_Web_Brochure_052023.pdf
Sell Sheet:: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/sell_sheets/FT-X_11ft_Flyer_062023.pdf
BC Status:: Yes
Related Products:: 84711SC3,84711SA1,84108SP1,72706SB1,8127B,8143,7372,5040,7530
Relevant Standards 1:: ANSI Z359.14-2021
Relevant Standards 2:: OSHA 1926.502 and 1910.66
Relevant Standards 3:: CSA Z259.2.2-2017

1306 S. Alameda St., Compton, CA 90221 | (800) 719-4619 | www.falltech.com 05/15/2026

11' FT-X® Web Class 1 SRL-P with Steel Snap Hook, Includes Steel Dorsal Connecting Carabiner

Downloads

Compliant With:

Similar Products to 84711SC1

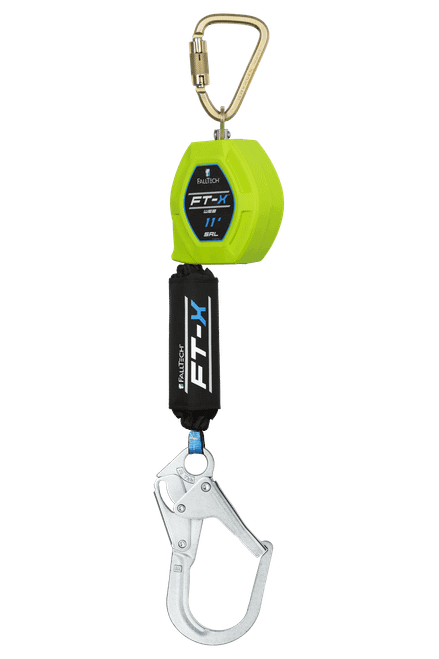

11' FT-X® Web Class 1 SRL-P with Steel Rebar Hook, Includes Steel Dorsal Connecting Carabiner

11' FT-X® Web Class 1 SRL-P with Steel Snap Hook

8' FT-X® EdgeCore™ Class 2 Leading Edge Personal SRL-P, Single-leg with Steel Swivel Snap Hook

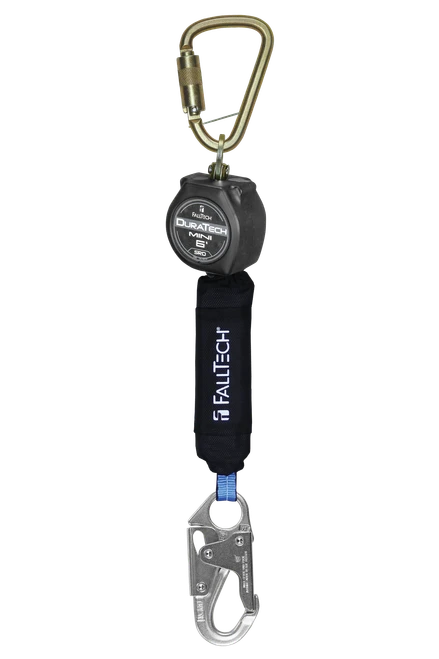

6' DuraTech® Mini Class 1 Personal SRL-P with Steel Snap Hook, Includes Steel Dorsal Connecting Carabiner
