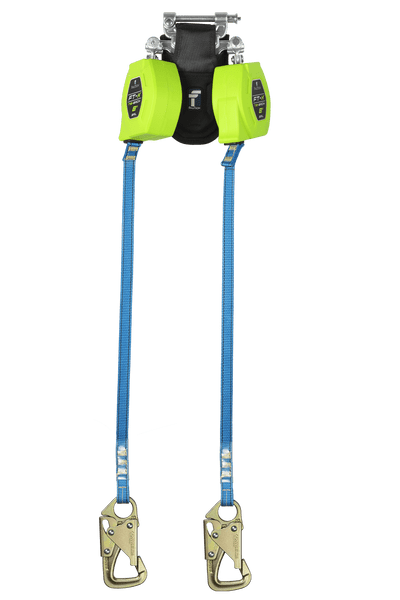

8' FT-X® Web Tie-Back Class 1 Personal SRL-P, Twin-leg with Steel 5k Snap Hook with SpeedLink™

Contact Sales

SKU:

84308TP8S

UPC:

performance 7 header:

OSHA User Capacity

performance 6 header:

ANSI User Capacity

document name 1:

Instruction Manual

filter - srl type:

SRL-P

document file 2:

declarations_of_conformity/D0913052_DOC.pdf

document file 3:

sell_sheets/FT-X_Tie-Back_Class1_Brochure_122022.pdf

performance 5 header:

Max. Arrest Distance

2nd bullet:

Compact design elevates the SRDs to align optimally with worker motion, increasing both comfort and productivity

filter - osha:

OSHA Compliant

filter - configuration:

Twin-leg

relevant standards 1:

ANSI Z359.14-2021

5th bullet:

Suitable for below D-ring tie-off up to five feet without edge exposures and hazards, outside the scope of ANSI Z359

4th bullet:

Internal mechanism design minimizes unintentional lockups to keep you moving freely and productively

3rd bullet:

Features comprehensive fall clearance charts and tables inside the energy absorber cover

filter - application:

Tie-Back

white cap - package weight uom:

Pound|LBR

category tier 3:

FT-X® Web Tie-Back

category tier 2:

Personal SRLs

material 4 detail:

Aluminum alloy; 3,600 lb min.

performance 3 detail:

1,350 lb max.

material 1 header:

Lifeline

document file 1:

instruction_manuals/MSRD25_Rev_C_013125_EN.pdf

performance 4 detail:

1,800 lb

white cap - package width uom:

Inches|INH

product type:

Class 1 Tie-Back SRL-P

performance 7 detail:

130 to 420 lb max.

white cap - package height uom:

Inches|INH

white cap - package depth uom:

Inches|INH

family group:

FT-X® Web Tie-Back Class 1 Personal SRL-P

filter - ansi:

ANSI Class 1 SRL-P Compliant

filter - personal srl dorsal connector:

Dorsal SRL Slide Connector

material 3 detail:

Plated alloy steel; 5,000 lb min. static strength with 5,000 lb gate strength

ansi z359.14-2021 srl class 1 or 2:

Class 1

other items you may need:

8127B, 8128B, 8143B, 8143BFD

filter - personal srl dorsal connector material:

Aluminum Alloy

brand image:


material 2 detail:

Polyester tear-away

white cap - gtin:

00848013097828

material 4 header:

Dorsal Connector

white cap - country of origin:

840

white cap - total shelf life:

10000

document name 3:

Sell Sheet/Brochure

10th bullet:

Complies with ANSI Z359.14-2021 Class 2 SRL-P. Learn more and download White Paper

filter - brand:

FT-X® Web Tie-Back

9th bullet:

Replacement retractable part number is 84308RP8S

white cap - unspsc code:

46182305

relevant standards 2:

OSHA 1926.502 and 1910.66

plp icon - srl - ansi class:

1

material 2 header:

Energy Absorber

material 1 detail:

Dyneema®; 4,500 lb min. static strength

8th bullet:

Features SpeedLink™ field replaceability of damaged retractable units, lowering overall cost of ownership and reducing equipment down time. Request SpeedLink™ Spanner Tool

7th bullet:

Features steel snap hook leg-end connectors with 5,000 lb rated gate for tie-back applications

filter - length:

8'

white cap - selling uom:

EA - Each|EA

filter - personal srl anchorage connector material:

Plated Alloy Steel

filter - personal srl anchorage connector:

Snap Hook(s)

filter - lifeline material:

Dyneema®

document name 2:

Declaration of Conformity

plp icon - srl - length:

8'

material 3 header:

Anchorage Connector

descriptor 2:

Dyneema® Web Lifeline

performance 1 header:

Static Strength

performance 2 detail:

Class 1 SRL-P

performance 2 header:

ANSI SRL Class

performance 3 header:

Avg. Arrest Force

performance 4 header:

Max. Arrest Force

performance 5 detail:

42"

performance 6 detail:

130 to 310 lb max.

descriptor 1:

Steel 5k Tie-Back Snap Hooks

1st bullet:

Specifically designed Dyneema webbing for extended service life and durability when wrapped around anchorages of all materials and shapes

6th bullet:

Rated for workers weighing up to 420 pounds, including clothes, tools, gear, etc.

similar solutions:

84308SP8S, 84308TP8, 84108TP8S, 8241Y

performance 1 detail:

3,600 lb min.
