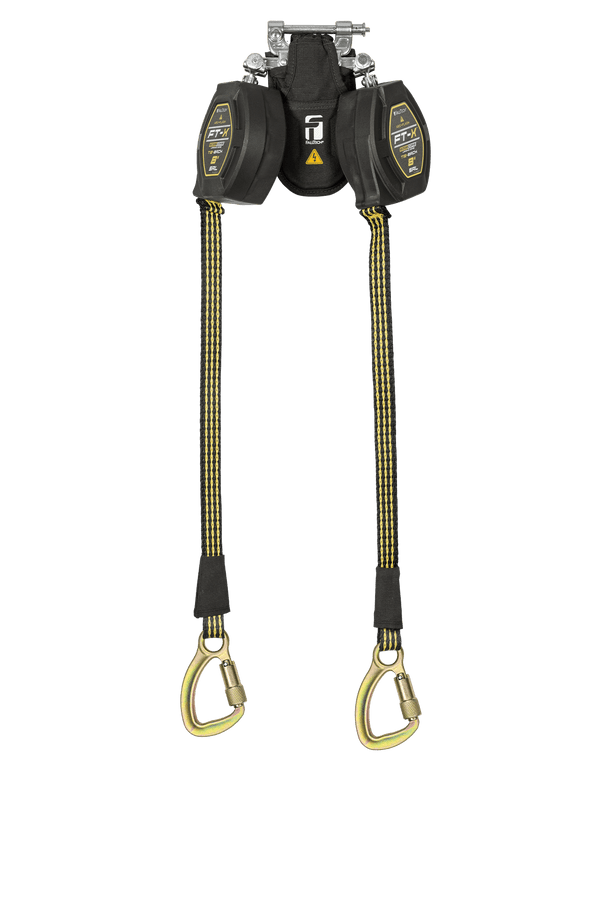

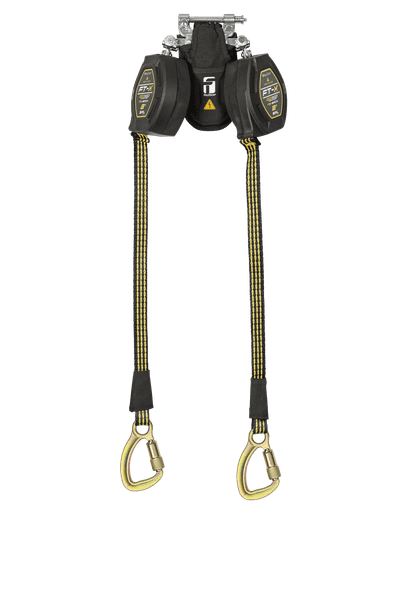

8' FT-X® EdgeCore™ Arc Flash Tie-Back Class 2 Leading Edge Personal SRL-P, Twin-leg with Steel 5k Carabiners with SpeedLink™

Name: Fall Tech
Address: 1306 S. Alameda St., Compton, CA 90221, Compton, CA, 90221, US
Telephone: (800) 719-4619

Contact Sales

Downloads

Instruction Manual

Declaration of Conformity (ANSI)

Declaration of Conformity (CSA)

Sell Sheet/Brochure

FallTech for Utilities Brochure

Spec Sheet

Compliant With:

CSA Z299.2.2-2017

OSHA 1926.502 and 1910.66

ANSI Z359.14-2021

ASTM F887-20

SKU:: 84008TP8
UPC:
performance 7 header:: OSHA User Capacity
performance 6 header:: ANSI User Capacity
document name 1:: Instruction Manual
filter - srl type:: SRL-P
document file 2:: declarations_of_conformity/D1218072a_DOC.pdf
document file 3:: declarations_of_conformity/DC0618021b_DOC.pdf
performance 5 header:: Max. Arrest Distance
12th bullet:: Meets ASTM F887 Standards
2nd bullet:: Features 100% Kevlar® version of FallTech's innovative EdgeCore™ synthetic lifeline
filter - configuration:: Twin-leg
6th bullet:: Suitable for below D-ring tie-off up to five feet and leading edge exposures and hazards, including steel and precast concrete
performance 4 header:: Max. Arrest Force
4th bullet:: Features comprehensive fall clearance charts and tables inside the Kevlar®/Nomex® energy absorber cover
3rd bullet:: Compact design elevates the SRDs to align optimally with worker motion, increasing both comfort and productivity
filter - application:: Tie-Back
white cap - package weight uom:: Pound|LBR
category tier 3:: FT-X® EdgeCore™ Arc Flash
category tier 2:: Personal SRLs
material 4 detail:: Aluminum alloy; 3,600 lb min.
performance 3 detail:: 1,350 lb max.
material 1 header:: Lifeline
document file 1:: instruction_manuals/MSRD35_Rev_D_062325_EN_ES_FR_BOOKLET.pdf
performance 4 detail:: 1,800 lb
white cap - package width uom:: Inches|INH
product type:: Class 2 LE Arc Flash Tie-Back SRL-P
filter - astm:: ASTM Compliant
performance 7 detail:: 130 to 420 lb max.
white cap - package height uom:: Inches|INH
white cap - package depth uom:: Inches|INH
family group:: FT-X® EdgeCore™ Arc Flash Tie-Back
filter - ansi:: ANSI Class 2 SRL-P Compliant
relevant standards 3:: CSA Z299.2.2-2017
material 3 header:: Anchorage Connector
filter - personal srl dorsal connector:: Dorsal SRL Slide Connector
filter - csa:: CSA Compliant
document name 5:: FallTech for Utilities Brochure
material 3 detail:: Plated alloy steel; 5,000 lb min. static strength with 5,000 lb gate strength
document name 4:: Sell Sheet/Brochure
10th bullet:: AXIS™ enabled: Easily and accurately calculate minimum fall clearance with the AXIS safety calculator on your mobile device or computer
document file 5:: sell_sheets/Utilities_Brochure_022026.pdf
other items you may need:: 8079FDQC, 8077FDQC, 8074FDQC, 8078FDQC
performance 6 detail:: 130 to 310 lb max.
document file 4:: sell_sheets/FT-X_EdgeCore_Arc_Flash_TieBack_Brochure_042024.pdf
white cap - gtin:: 00848013039859
brand image:: Logo_FT-X_EdgeCore_Arc_Flash_TieBack.png
white cap - selling uom:: EA - Each|EA
material 2 detail:: Polyester tear-away
filter - axis enabled:: AXIS™ Enabled
white cap - total shelf life:: 10000
material 4 header:: Dorsal Connector
plp icon - srl - ansi class:: 2
white cap - country of origin:: 840
document name 3:: Declaration of Conformity (CSA)
webrotate:: https://s1.pixriot.com/4455317852/PDP Tests/FT-X Arc Flash Tie-Back/84008TP8 EdgeCore_Arc_Flash_Twin_5K_Carabiner 360/84008TP8 EdgeCore_Arc_Flash_Twin_5K_Carabiner 360.xml?t=1721081029
filter - brand:: FT-X® EdgeCore™ Arc Flash Tie-Back Leading Edge
ansi z359.14-2021 srl class 1 or 2:: Class 2
white cap - unspsc code:: 46182305
relevant standards 2:: OSHA 1926.502 and 1910.66
filter - length:: 8'
material 2 header:: Energy Absorber
9th bullet:: Features SpeedLink™ field replaceability of damaged retractable units, lowering overall cost of ownership and reducing equipment down time. Request SpeedLink™ Spanner Tool
8th bullet:: Features steel carabiner leg-end connectors with 5,000 lb rated gate for tie-back applications
7th bullet:: Rated for workers weighing up to 420 pounds, including clothes, tools, gear, etc.
relevant standards 1:: ANSI Z359.14-2021
plp icon - srl - axis:: AXIS
document name 2:: Declaration of Conformity (ANSI)
11th bullet:: Complies with ANSI Z359.14-2021 Class 2 SRL-P. Learn more and download White Paper
5th bullet:: Internal mechanism design minimizes unintentional lockups to keep you moving freely and productively
descriptor 1:: Steel 5k Carabiners
plp icon - srl - length:: 8'
1st bullet:: Arc Flash rating AND Class 2 Leading Edge rating for the first time in an SRL.
descriptor 2:: EdgeCore™ Arc Flash Synthetic Lifeline
filter - osha:: OSHA Compliant
filter - personal srl anchorage connector:: Carabiner(s)
filter - personal srl anchorage connector material:: Plated Alloy Steel
filter - personal srl dorsal connector material:: Aluminum Alloy
material 1 detail:: EdgeCore™; 5,000 lb min. static strength
relevant standards 4:: ASTM F887-20
performance 1 header:: Static Strength
performance 2 detail:: Class 2 SRL-P
performance 2 header:: ANSI SRL Class
filter - lifeline material:: EdgeCore™ Arc Flash
performance 3 header:: Avg. Arrest Force
performance 5 detail:: 42"
performance 1 detail:: 3,600 lb min.
