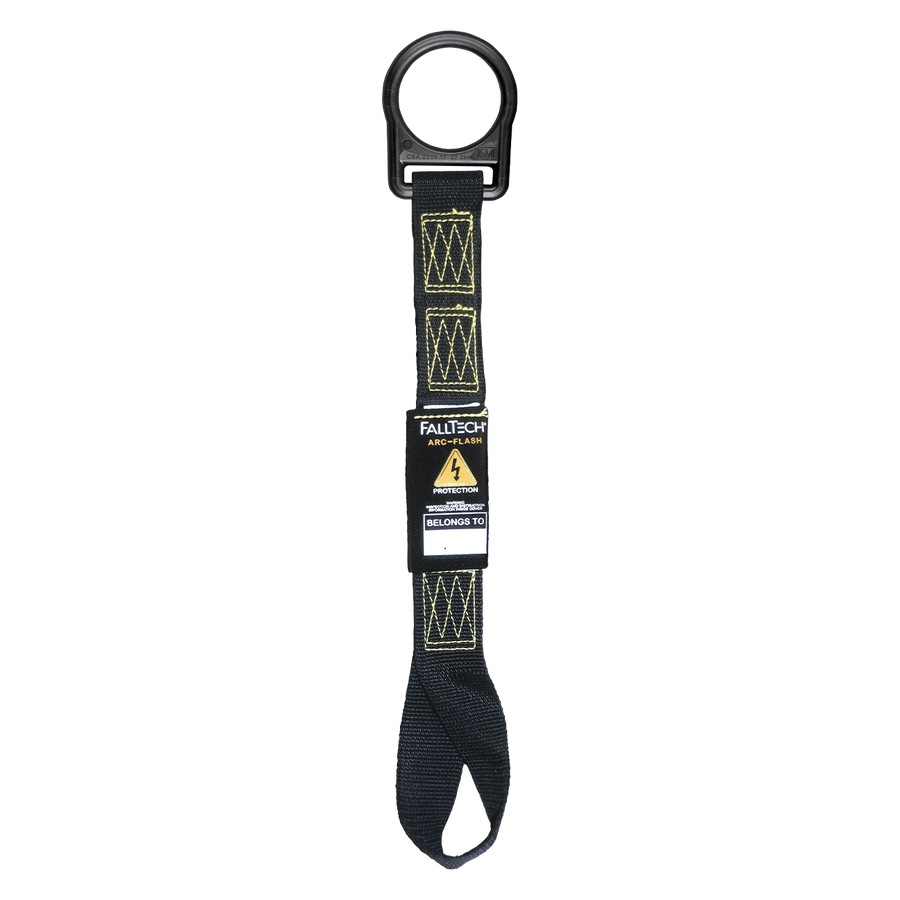

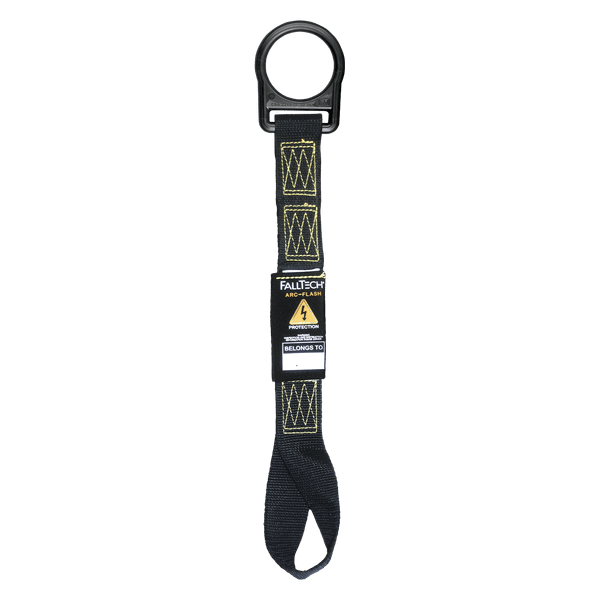

18" Arc Flash Dorsal D-ring Extender with Choke-loop and Overmolded D-ring

Name: Fall Tech
Address: 1306 S. Alameda St., Compton, CA 90221, Compton, CA, 90221, US
Telephone: (800) 719-4619

Contact Sales

Designed for utility and energized work environments, this arc flash-rated dorsal extender improves over-the-shoulder connection reach while helping reduce electrical conductivity during use.

Downloads

Instruction Manual

Declaration of Conformity (ANSI)

Spec Sheet

Compliant With:

ANSI Z359.11-2014

OSHA 1926.502 and 1910.66

ASTM F887-20

SKU:: 8366LAF
UPC:: 848013083968
Material 2 Detail:: Overmolded alloy steel; 5,000 lb min. static strength
Filter - Lanyard Material:: Kevlar® Webbing
Performance 2 Header:: OSHA User Capacity
document name 1:: Instruction Manual
Similar Solutions:: 8366, 8366L
Material 2 Header:: D-ring
2nd Bullet:: Constructed with Kevlar® webbing and overmold insulated D-ring for arc flash hazard protection.
Family Group:: D-ring Extender
Performance 1 Header:: Static Strength
document file 2:: declarations_of_conformity/B1213172_DOC.pdf
1st Bullet:: Provides improved over-the-shoulder reach for ease of connecting lanyards and SRLs
Other Items You May Need:: 7047QC, 8073QC, 72906SC1
Performance 2 Detail:: 130 to 425 lb max.
category tier 3:: Extenders
Material 3 Detail:: Kevlar®; 5,000 lb min. static strength
Relevant Standards 1:: ANSI Z359.11-2014
Descriptor 1:: Choke-loop and overmold steel D-ring
Relevant Standards 2:: OSHA 1926.502 and 1910.66
Relevant Standards 3:: ASTM F887-20
Material 1 Header:: Webbing
document name 2:: Declaration of Conformity
Filter - OSHA:: OSHA Compliant
Material 1 Detail:: Kevlar®; 5,000 lb min. static strength
category tier 2:: Carabiners and Extenders
4th Bullet:: Extender use will increase the user's total fall clearance distance when using an energy absorbing lanyard
Material 3 Header:: Choke-loop
Performance 1 Detail:: 5,000 lb min.
Product Type:: 18" Kevlar® Web
document file 1:: instruction_manuals/MDRE01_Rev_E_061919_EN_ES_FR.pdf
3rd Bullet:: Choke-loop for harness attachment reduces electrical conductivity
5th Bullet:: Complies with ANSI Z359.11-2014
Instruction Manual:: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/instruction_manuals/MDRE01_Rev_E_061919_EN_ES_FR.pdf
Declaration of Conformity (ANSI):: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/declarations_of_conformity/B1213172_DOC.pdf
BC Status:: Yes
Related Products:: 8366,8366L,7047QC,8073QC,72906SC1
BC Category:: 126

1306 S. Alameda St., Compton, CA 90221 | (800) 719-4619 | www.falltech.com 07/14/2026

18" Arc Flash Dorsal D-ring Extender with Choke-loop and Overmolded D-ring

Downloads

Compliant With:

Similar Products to 8366LAF

Dorsal D-ring Extender with Steel Snap Hook

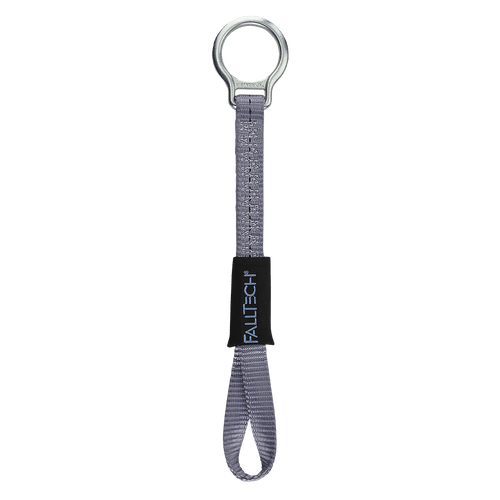

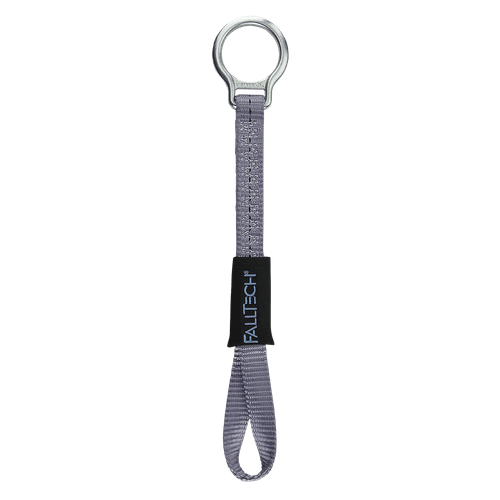

18" Dorsal D-ring Extender with Choke-loop
