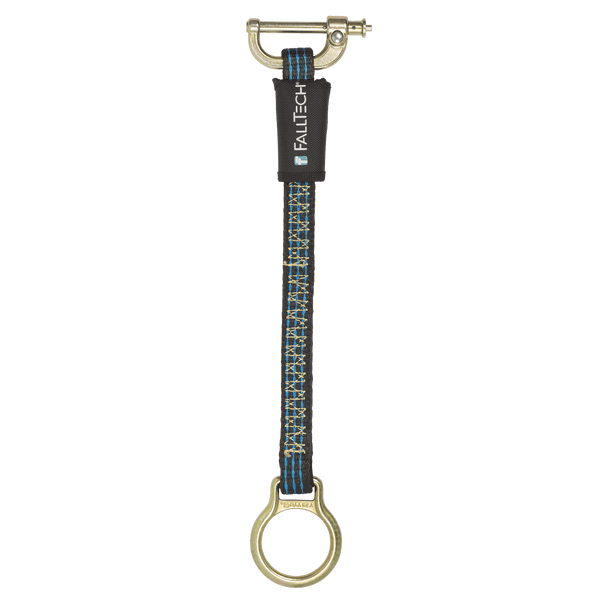

18" EdgeCore™ Dorsal D-Ring Extender with Dorsal Connector

SKU:

8365P

UPC:

document name 2:

Declaration of Conformity

filter - lanyard material:

EdgeCore™

performance 2 header:

ANSI User Capacity

document name 1:

Instruction Manual

similar solutions:

8365L, 8365LD, 8365, 8366C

material 2 header:

D-ring

performance 3 header:

OSHA User Capacity

2nd bullet:

Built with FallTech's exclusive EdgeCore™ synthetic lifeline used for leading edge protection in Class 2 SRL-Ps

performance 1 detail:

5,000 lb min.

performance 1 header:

Static Strength

3rd bullet:

Includes alloy steel dorsal connector for harness attachment, keeping the dorsal D-ring free for other connections

document file 2:

declarations_of_conformity/B0731211_DOC.pdf

1st bullet:

Provides improved over-the-shoulder reach for ease of connecting lanyards and SRLs

other items you may need:

8127B, 721530LE, 72226C, 7276BWR

performance 2 detail:

130 to 310 lb max.

category tier 3:

Extenders

material 3 detail:

Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength

filter - ansi:

ANSI Compliant

performance 3 detail:

130 to 425 lb max.

relevant standards 1:

ANSI Z359.11-2021 and Z359.3-2019

descriptor 1:

Steel dorsal connector and D-ring

document file 3:

sell_sheets/EdgeCore_D-ring_Extender_Flyer_102024.pdf

material 1 header:

Webbing

document name 3:

EdgeCore™ D-ring Extenders Flyer

relevant standards 2:

OSHA 1926.502 and 1910.66

product type:

EdgeCore™ Extender

material 1 detail:

EdgeCore™; 5,000 lb min. static strength

filter - osha:

OSHA Compliant

document file 1:

instruction_manuals/MDRE01_Rev_E_061919_EN_ES_FR.pdf

material 3 header:

Connector

family group:

D-ring Extender

4th bullet:

Extender use will increase the user's total fall clearance distance when using an energy absorbing lanyard

category tier 2:

Carabiners and Extenders

material 2 detail:

Plated alloy steel; 5,000 lb min. static strength

5th bullet:

Complies with ANSI Z359.11-2021 and Z359.3-2019
