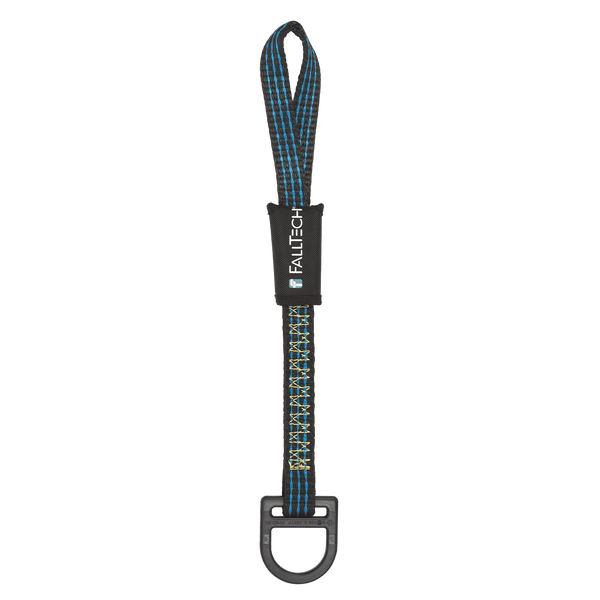

18" EdgeCore™ Dorsal D-Ring Extender with Loop and Dielectric D-ring

Name: Fall Tech
Address: 1306 S. Alameda St., Compton, CA 90221, Compton, CA, 90221, US
Telephone: (800) 719-4619

Contact Sales

This advanced dorsal extender combines improved connection reach with EdgeCore synthetic material technology for enhanced durability and reduced conductivity in demanding work environments.

Downloads

Instruction Manual

Declaration of Conformity (ANSI)

Sell Sheet

Spec Sheet

Compliant With:

ANSI Z359.11-2021 and Z359.3-2019

OSHA 1926.502 and 1910.66

SKU:: 8365LD
UPC:: 848013043405
Filter - Lanyard Material:: EdgeCore™
Performance 2 Header:: ANSI User Capacity
Descriptor 1:: Choke-loop and dielectric D-ring
Performance 2 Detail:: 130 to 310 lb max.
category tier 3:: Extenders
Performance 3 Detail:: 130 to 425 lb max.
1st Bullet:: Provides improved over-the-shoulder reach for ease of connecting lanyards and SRLs
Material 1 Detail:: EdgeCore™; 5,000 lb min. static strength
Material 1 Header:: Webbing
Filter - ANSI:: ANSI Compliant
Other Items You May Need:: 8127B, 721530LE, 72226C, 7276BWR
2nd Bullet:: Built with FallTech's exclusive EdgeCore™ synthetic lifeline used for leading edge protection in Class 2 SRL-Ps
Performance 3 Header:: OSHA User Capacity
Material 2 Header:: D-ring
Performance 1 Detail:: 5,000 lb min.
Product Type:: EdgeCore™ Extender
Performance 1 Header:: Static Strength
Similar Solutions:: 8365L, 8365, 8365P, 8366C
Material 2 Detail:: Overmolded alloy steel; 5,000 lb min. static strength
Material 3 Header:: Choke-loop
4th Bullet:: Extender use will increase the user's total fall clearance distance when using an energy absorbing lanyard
category tier 2:: Carabiners and Extenders
Filter - OSHA:: OSHA Compliant
5th Bullet:: Complies with ANSI Z359.11-2021 and Z359.3-2019
3rd Bullet:: Features choke-loop for harness attachment with reduced weight
Family Group:: D-ring Extender
Material 3 Detail:: EdgeCore™; 5,000 lb min. static strength
Instruction Manual:: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/instruction_manuals/MDRE01_Rev_E_061919_EN_ES_FR.pdf
Declaration of Conformity (ANSI):: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/declarations_of_conformity/B0731211_DOC.pdf
Sell Sheet:: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/sell_sheets/EdgeCore_D-ring_Extender_Flyer_102024.pdf
BC Status:: Yes
Related Products:: 8365L, 8365, 8365P, 8127B, 721530LE
Relevant Standards 1:: ANSI Z359.11-2021 and Z359.3-2019
Relevant Standards 2:: OSHA 1926.502 and 1910.66
BC Category:: 328
