Home
9' Arc Flash DuraTech
®
MAX Personal SRL with Aluminum Rebar Hooks
Product Specifications
82909TB5
Contact Sales

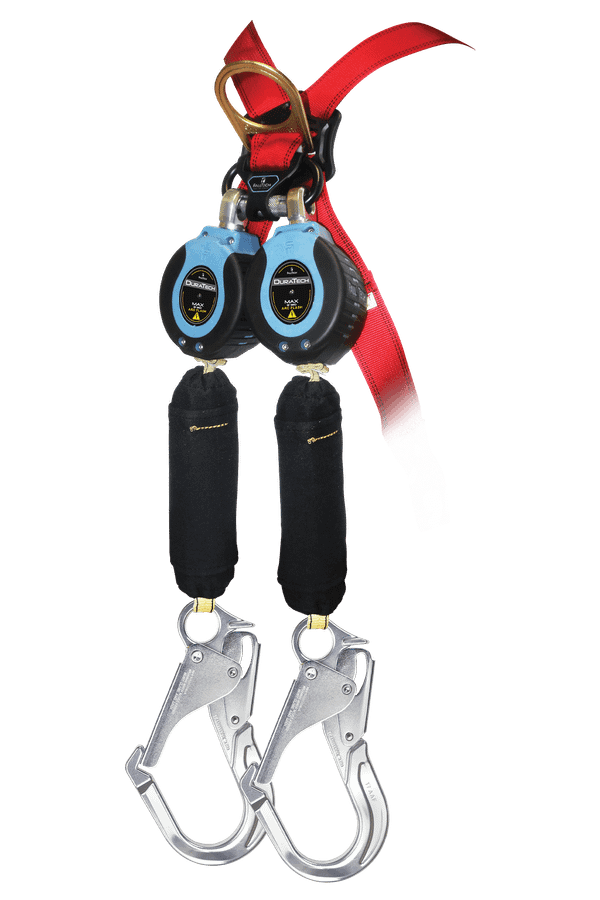

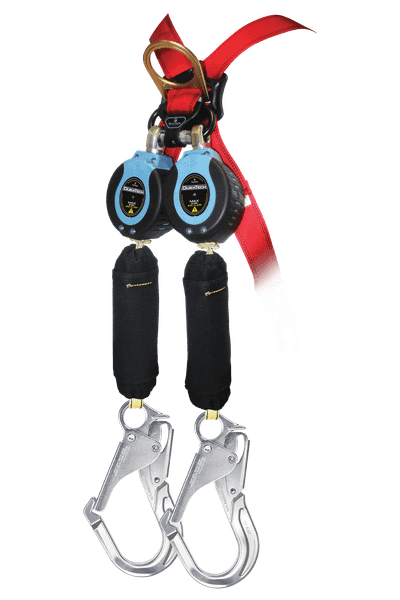

9' Arc Flash DuraTech® MAX Personal SRL with Aluminum Rebar Hooks
Play
×
DOWNLOADS
Instruction Manual
Declaration of Conformity
Spec Sheet
Compliant With:
OSHA
1926.502 and 1910.66
ASTM
F887-13
ANSI
Z359.14-2021
Facebook
Email
Print
Twitter
Linkedin
Pinterest
(You save
)
SKU:
82909TB5
UPC:
descriptor 2:
Kevlar® Web Lifeline
9th bullet:
May be anchored up to 5' below the dorsal D-ring for users weighing up to 425 lb max. with OSHA-only compliance
8th bullet:
Includes alloy steel dorsal connecting carabiner with twin-leg alignment clip
7th bullet:
Rebar hooks feature transverse load rated gates
video-link:
DF-61IteeVE
performance 7 header:
OSHA User Capacity
performance 5 detail:
42"
relevant standards 2:
OSHA 1926.502 and 1910.66
material 3 detail:
Aluminum alloy; 5,000 lb min. static strength with 3,600 lb gate strength
performance 6 header:
ANSI User Capacity
material 4 detail:
Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
descriptor 1:
Aluminum Rebar Hooks
filter - personal srl anchorage connector:
Carabiner(s)
similar solutions:
82909SC5, 82909TB3
category tier 3:
DuraTech® MAX
filter - personal srl anchorage connector material:
Aluminum Alloy
6th bullet:
Features aluminum alloy rebar hook anchorage connectors
5th bullet:
Integrated aluminum alloy swivel-eyes help to prevent lifeline twisting for smooth operation
4th bullet:
Energy absorbers feature Nomex® ViewPack® covers with inspection windows and WrapPack label protection
material 1 header:
Webbing
plp icon - srl - length:
9'
other items you may need:
7047QC, 72496FT, 8209AF
2nd bullet:
Kevlar® web lifeline protects against Arc Flash hazards.
performance 1 header:
Static Strength
performance 1 detail:
3,600 lb min.
filter - brand:
DuraTech® MAX
performance 3 detail:
900 lb
filter - length:
9'
brand image:
document file 2:
declarations_of_conformity/D1121063_DOC.pdf
document file 1:
instruction_manuals/MSRD40_Rev_C_102022_EN_ES.pdf
performance 3 header:
Avg. Arrest Force
filter - astm:
ASTM Compliant
filter - personal srl dorsal connector:
Carabiner with Alignment Clip
relevant standards 3:
ASTM F887-13
performance 4 detail:
1,800 lb
filter - srl type:
SRL-P
filter - lifeline material:
Kevlar® Web
material 3 header:
Anchorage Connector
document name 2:
Declaration of Conformity
product type:
Arc Flash Personal SRL
filter - application:
Arc Flash
category tier 2:
Personal SRLs
relevant standards 1:
ANSI Z359.14-2021
filter - ansi:
ANSI Compliant
3rd bullet:
Overmolded glass-filled nylon housings contribute unmatched impact resistance
10th bullet:
Complies with ANSI Z359.14-2014 and ASTM F887-13
family group:
DuraTech® MAX Arc Flash Personal SRL
performance 5 header:
Max. Arrest Distance
material 4 header:
Dorsal Connector
material 1 detail:
Kevlar®; 4,500 lb min.
filter - osha:
OSHA Compliant
material 2 detail:
Polyester tear-away
performance 2 detail:
Class B
1st bullet:
Internal inertial brakes plus the external energy absorber deliver max weight capacity and max below D-ring anchorage distance
performance 4 header:
Max. Arrest Force
filter - configuration:
Twin-leg
filter - personal srl dorsal connector material:
Plated Alloy Steel
document name 1:
Instruction Manual
material 2 header:
Energy Absorber
performance 2 header:
ANSI SRL Class
performance 6 detail:
130 to 310 lb max.
performance 7 detail:
130 to 425 lb max.
