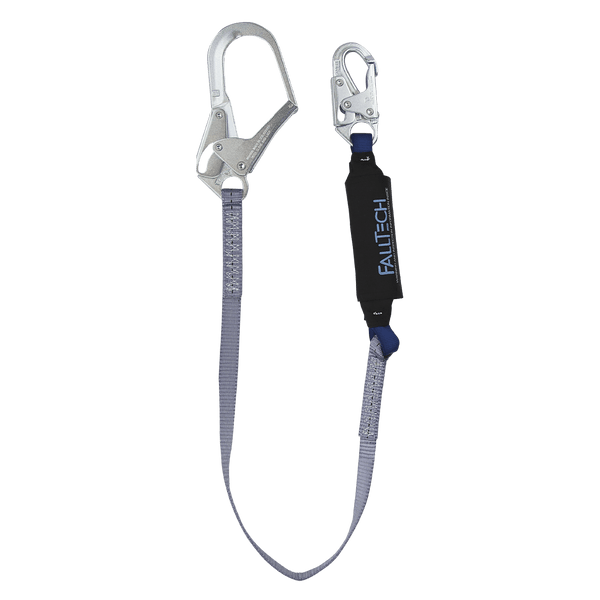

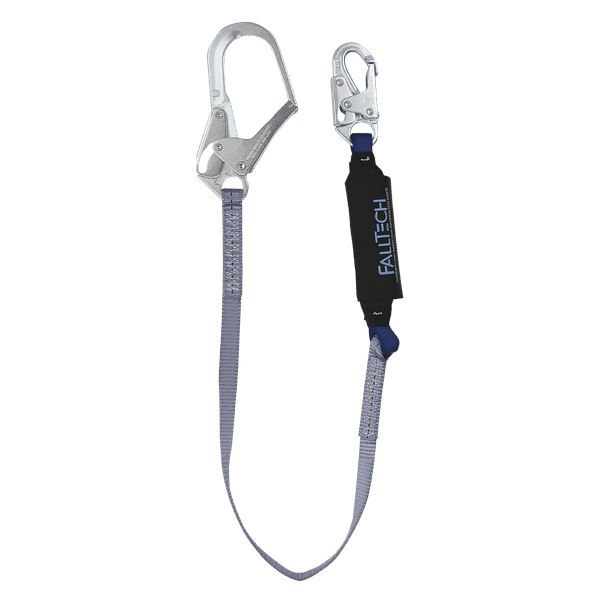

4' ViewPack® Energy Absorbing Lanyard, Single-leg with Steel Connectors

Name: Fall Tech
Address: 1306 S. Alameda St., Compton, CA 90221, Compton, CA, 90221, US
Telephone: (800) 719-4619

Contact Sales

Designed for restricted clearance applications, this single-leg lanyard combines dependable energy absorption with simplified inspection visibility through the integrated ViewPack inspection window.

Downloads

Instruction Manual (ANSI)

Declaration of Conformity (ANSI)

Spec Sheet

Compliant With:

ANSI Z359.13-2013

OSHA 1926.502 and 1910.66

CSA Z259.11-2017

SKU:: 82543
UPC:: 848013043603
Performance 5 Header:: Max. Arrest Force
Material 2 Detail:: Polyester tear-away
Filter - Lanyard Material:: Polyester Webbing
Performance 2 Header:: ANSI Lanyard Class
Similar Solutions:: 82563, 8254
Family Group:: ViewPack® Lanyard
Performance 6 Header:: ANSI User Capacity
Performance 5 Detail:: 1,800 lb
Filter - Harness Attachment:: Snap Hook
Other Items You May Need:: 7078B, 72706SB3, 7530
Performance 2 Detail:: 6' free fall
category tier 3:: ViewPack®
Performance 3 Detail:: 48"
Material 1 Header:: Webbing
Performance 7 Header:: OSHA User Capacity
PLP Icon - EAL - Length:: 4'
Material 2 Header:: Energy Absorber
Performance 3 Header:: Max. Arrest Distance
2nd Bullet:: 4' length is ideally suited for applications where restricted fall clearances are present.
Performance 4 Detail:: 900 lb
Performance 1 Detail:: 5,000 lb min.
Filter - CSA:: CSA Compliant
1st Bullet:: Heavy-duty 1" polyester web construction throughout
PLP Icon - EAL - EA type:: External
Filter - Connector Material:: Plated Alloy Steel
Filter - Anchorage Connector:: Rebar Hook
Filter - Brand:: ViewPack®
Material 3 Detail:: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
Performance 7 Detail:: 130 to 310 lb max.
Size 1:: 82543 (ANSI Compliant)
category tier 2:: Energy Absorbing Lanyards
Performance 4 Header:: Avg. Arrest Force
Filter - ANSI:: ANSI Compliant
Performance 6 Detail:: 130 to 310 lb max.
Product Type:: External Energy Absorbing Lanyard
Performance 1 Header:: Static Strength
Relevant Standards 1:: ANSI Z359.13-2013
Sizes Available:: CSA Part Number Available
Descriptor 1:: Steel Rebar Hok
Filter - OSHA:: OSHA Compliant
Size 2:: C82543 (CSA Compliant)
4th Bullet:: ViewPack® cover also features WrapPack label protection
Relevant Standards 2:: OSHA 1926.502 and 1910.66
3rd Bullet:: Energy absorber features patented ViewPack® cover with inspection window
Material 1 Detail:: Polyester; 5,000 lb min. static strength
Filter - Configuration:: Single-leg
Descriptor 2:: Single-leg
Material 3 Header:: Connectors
7th Bullet:: Complies with ANSI Z359.13-2013
Filter - Leg Type:: Fixed Length
Relevant Standards 3:: CSA Z259.11-2017
6th Bullet:: Rebar hook feature transverse load rated gate
5th Bullet:: Includes alloy steel snap hook for harness attachment and rebar hook for anchorage connection
Instruction Manual (ANSI):: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/instruction_manuals/MSAL01ALX_Rev_A.pdf
Declaration of Conformity (ANSI):: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/declarations_of_conformity/C1215021_DOC.pdf
BC Status:: Yes
Related Products:: 82563,8254,7078B,72706SB3,7530
BC Category:: 126

1306 S. Alameda St., Compton, CA 90221 | (800) 719-4619 | www.falltech.com 07/27/2026
