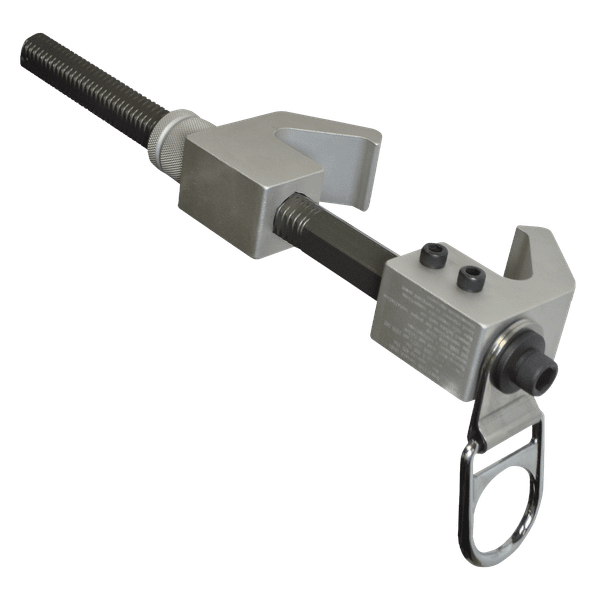

12 ¾" Vertical Beam Anchor for Fixed Locations

Name: Fall Tech
Address: 1306 S. Alameda St., Compton, CA 90221, Compton, CA, 90221, US
Telephone: (800) 719-4619

Contact Sales

This adjustable vertical beam anchor provides a secure permanent anchorage solution for structural steel applications. Its wide flange adjustment range supports fast installation across varying beam sizes on the jobsite.

Downloads

Instruction Manual

Declaration of Conformity (ANSI)

Spec Sheet

Compliant With:

ANSI Z359.18-2017

OSHA 1926.502 and 1910.66

SKU:: 7535
UPC:: 848013098351
Filter - Application:: Fixed Position
Filter - OSHA:: OSHA Compliant
Performance 2 Header:: ANSI User Capacity
Similar Solutions:: 7536
Material 2 Header:: Crossbar
Performance 3 Header:: OSHA User Capacity
2nd Bullet:: Single-jaw adjustment fits flanges from 4-1/2" to 12-3/4" wide and up to 2-1/4" thick
Performance 1 Detail:: 5,000 lb min.
Performance 1 Header:: Static Strength
3rd Bullet:: For permanent installation on vertical and horizontal I-beams
Filter - Primary Material:: Aluminum Alloy
Other Items You May Need:: 82710SC1, 8366, 7081B
Performance 2 Detail:: 130 to 310 lb max.
Material 3 Detail:: Aluminum alloy
Filter - ANSI:: ANSI Compliant
Performance 3 Detail:: 130 to 425 lb max.
Relevant Standards 1:: ANSI Z359.18-2017
Descriptor 1:: Vertical Fixed-position
Product Type:: I-beam Clamping
Material 1 Header:: D-ring
Family Group:: Steel Anchorage
Relevant Standards 2:: OSHA 1926.502 and 1910.66
Material 1 Detail:: Plated alloy steel; 5,000 lb min. static strength
category tier 2:: Steel
Descriptor 2:: Single-jaw adjustment
Filter - Anchor Type:: I-Beam/Clamping
1st Bullet:: Features threaded aluminum crossbar and jaws with knurled rings for fine adjustment
Material 3 Header:: Clamp Jaws
4th Bullet:: Complies with ANSI Z359.18-2017
Material 2 Detail:: Aluminum alloy
Instruction Manual:: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/instruction_manuals/MANC01.1_062316.pdf
Declaration of Conformity (ANSI):: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/declarations_of_conformity/A1214017b_DOC.pdf
BC Status:: Yes
Related Products:: 7536,82710SC1,8366,7081B
BC Category:: 328
