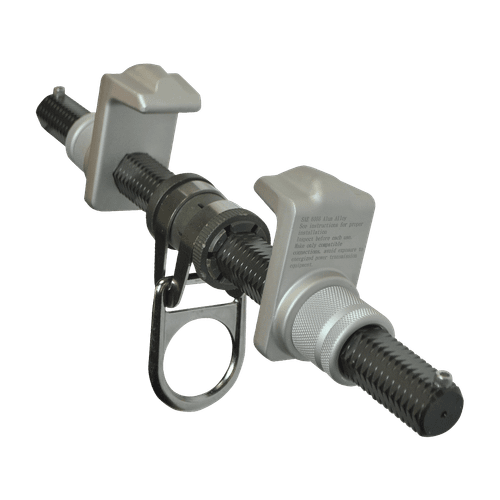

12 ¼" Trailing Beam Anchor with Dual-clamp Adjustment

Name: Fall Tech
Address: 1306 S. Alameda St., Compton, CA 90221, Compton, CA, 90221, US
Telephone: (800) 719-4619

Contact Sales

Designed for temporary beam anchorage applications, this trailing beam anchor moves smoothly with the user while maintaining a secure connection to structural steel during horizontal movement and positioning work.

Downloads

Instruction Manual

Declaration of Conformity (ANSI)

Spec Sheet

Compliant With:

ANSI Z359.18-2017

OSHA 1926.502 and 1910.66

SKU:: 7533
UPC:: 848013055859
Filter - Application:: Mobile/Trailing
Material 2 Detail:: Aluminum alloy
Performance 2 Header:: ANSI User Capacity
Similar Solutions:: 7530, 7538,7534
Material 2 Header:: Crossbar
Performance 3 Header:: OSHA User Capacity
2nd Bullet:: Exclusive recessed under-jaw ball bearings provide improved mobility.
Performance 1 Detail:: 5,000 lb min.
Performance 1 Header:: Static Strength
3rd Bullet:: Fits beam flanges from 3" to 12-1/4" wide and up to 1" thick
Filter - Primary Material:: Aluminum Alloy
Other Items You May Need:: 7080B, 8247BA, 83909TP1
Performance 2 Detail:: 130 to 310 lb max.
Material 3 Detail:: Aluminum alloy
Filter - ANSI:: ANSI Compliant
Performance 3 Detail:: 130 to 425 lb max.
Relevant Standards 1:: ANSI Z359.18-2017
Product Type:: I-beam Clamping
Descriptor 1:: User-trailing mobility
Family Group:: Steel Anchorage
Material 1 Header:: D-ring
Relevant Standards 2:: OSHA 1926.502 and 1910.66
Filter - OSHA:: OSHA Compliant
Material 1 Detail:: Plated alloy steel; 5,000 lb min. static strength
category tier 2:: Steel
Descriptor 2:: Dual-jaw adjustment
Filter - Anchor Type:: I-Beam/Clamping
1st Bullet:: Features threaded aluminum crossbar and jaws with knurled rings for fine adjustment
Material 3 Header:: Clamp Jaws
4th Bullet:: For temporary mobile use on horizontal I-beams
5th Bullet:: Complies with ANSI Z359.18-2017
Instruction Manual:: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/instruction_manuals/MANC01.1_062316.pdf
Declaration of Conformity (ANSI):: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/declarations_of_conformity/A0218016a_DOC.pdf
BC Status:: Yes
Related Products:: 7530,7538,7534,7080B,8247BA,83909TP1
BC Category:: 126
