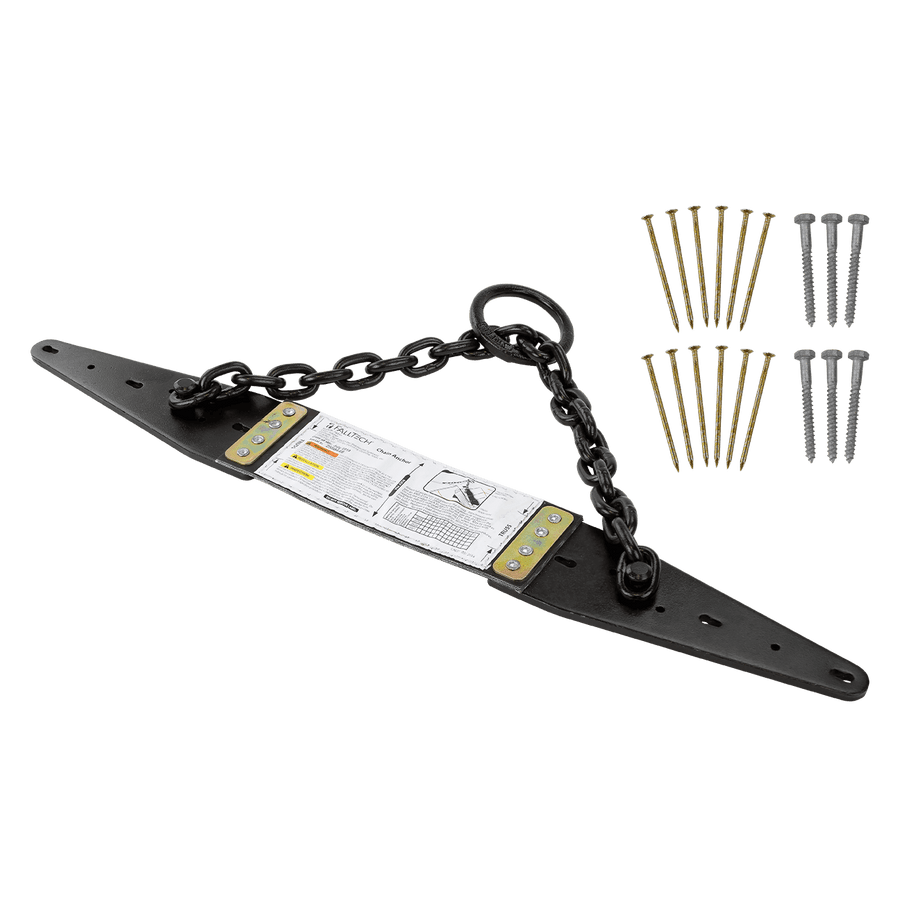

Reusable Heavy Duty Chain Anchor for Wood

Name: Fall Tech
Address: 1306 S. Alameda St., Compton, CA 90221, Compton, CA, 90221, US
Telephone: (800) 719-4619

Contact Sales

Designed for temporary roof anchorage applications, this reusable D-ring chain anchor provides a dependable tie-off point for wood structures and sloped roof work.

Downloads

Instruction Manual

Declaration of Conformity (ANSI)

Spec Sheet

Compliant With:

OSHA 1926.502 and 1910.66

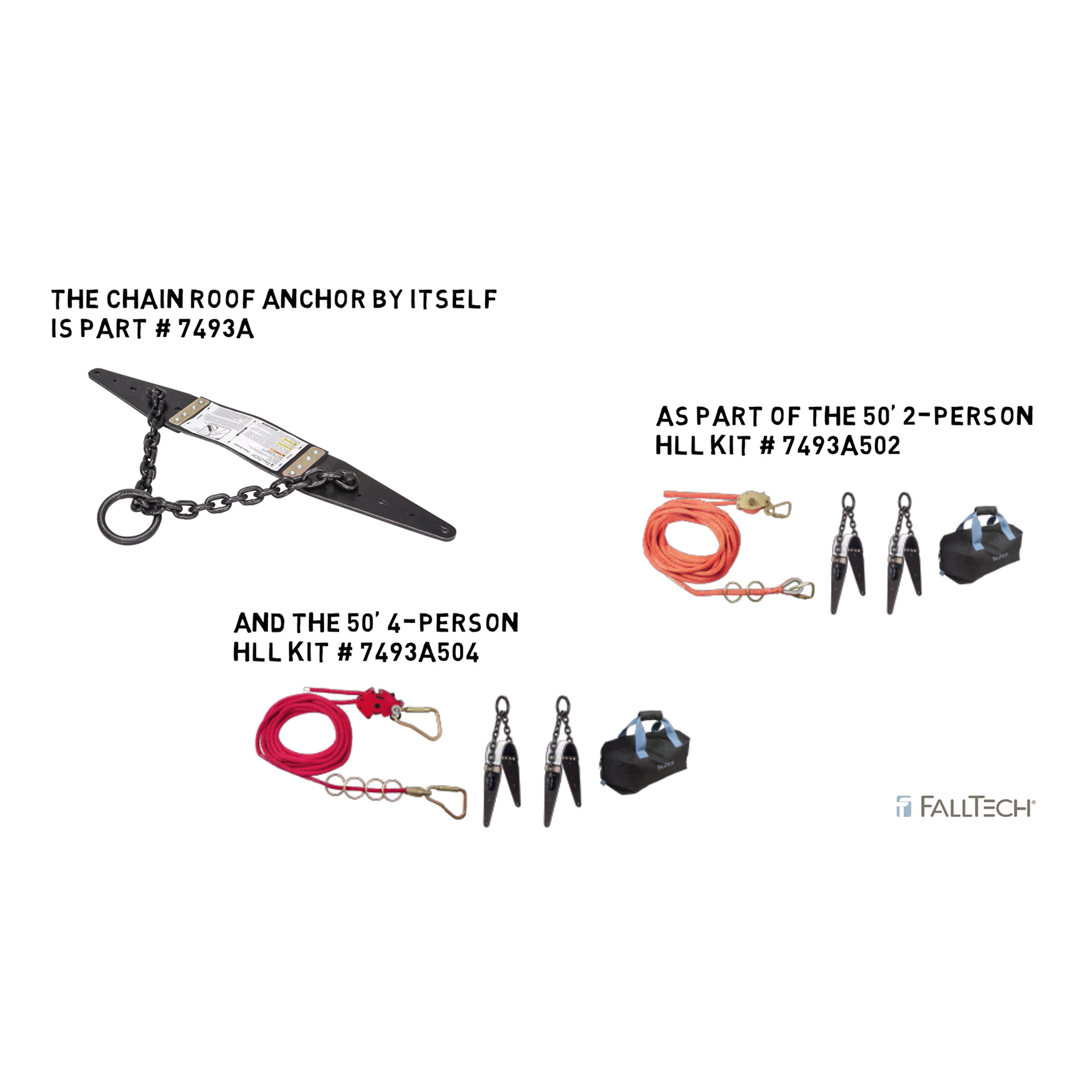

SKU:: 7493A
UPC:: 848013045102
1st Bullet:: Features 9" x 3" anchoring plates, 2-1/4" connecting ring and 5/16" Grade 80 chain
Material 3 Header:: Chain
Performance 1 Header:: Static Strength
Filter - Primary Material:: Plated carbon steel
Family Group:: Roofing Anchorage
Filter - OSHA:: OSHA Compliant
Material 1 Detail:: Powder coated carbon steel
Filter - Application:: Reusable
Filter - Anchor Type:: Screw/Nail-down
Performance 2 Header:: ANSI User Capacity
Material 3 Detail:: 5/16" welded link; 5,000 lb min. static strength
Performance 2 Detail:: 130 to 310 lb max.
document file 1:: instruction_manuals/MANC09.1_062414.pdf
Material 2 Detail:: Coated alloy steel; 5,000 lb min. static strength
Performance 1 Detail:: 5,000 lb min.
category tier 2:: Roofing
Similar Solutions:: 7410, 7493B1
Material 1 Header:: Plates
2nd Bullet:: Bendable plate joiner conforms to flat or sloped surfaces up to 12/12 pitch.
5th Bullet:: For temporary reusable installation on wood structures
4th Bullet:: Also includes 2-1/2" lag screws for use with HLLs
6th Bullet:: Meets OSHA 1926.502 regulations
3rd Bullet:: Includes 16D nails for roof ridge or field installation
document name 1:: Instruction Manual
Descriptor 1:: Field and ridge installation
document file 2:: declarations_of_conformity/A0714006_DOC.pdf
Performance 3 Detail:: 130 to 425 lb max.
Material 2 Header:: D-ring
Product Type:: Reusable Chain
Other Items You May Need:: 7008B, 8150, 8368
Relevant Standards 2:: OSHA 1926.502 and 1910.66
Performance 3 Header:: OSHA User Capacity
document name 2:: Declaration of Conformity
Instruction Manual:: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/instruction_manuals/MANC09.1_062414.pdf
BC Status:: Yes
Related Products:: 7410,7493B1,7008B,8150,8368
Declaration of Conformity (ANSI):: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/declarations_of_conformity/A0714006_DOC.pdf
BC Category:: 126

1306 S. Alameda St., Compton, CA 90221 | (800) 719-4619 | www.falltech.com 07/15/2026

Reusable Heavy Duty Chain Anchor for Wood

Downloads

Compliant With:

Similar Products to 7493A

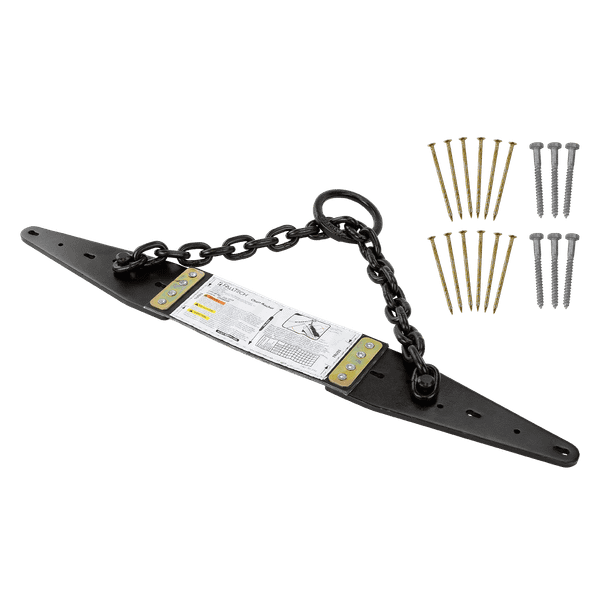

Hinged Reusable Wood Roof Anchor

Reusable D-ring Plate Anchor for Wood

Premium Polyester Blend Vertical Lifeline with Back-spliced End

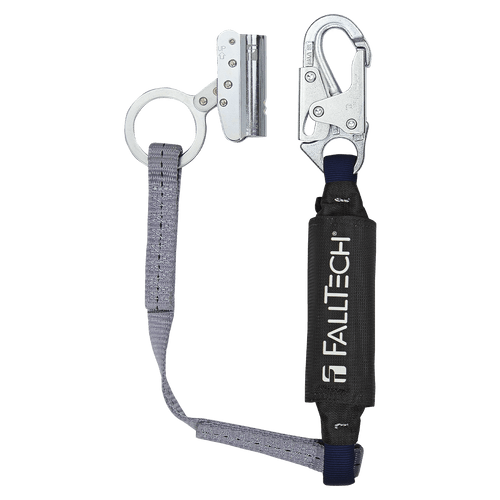

Trailing Rope Adjuster with 3' ViewPack® Energy Absorbing Lanyard
