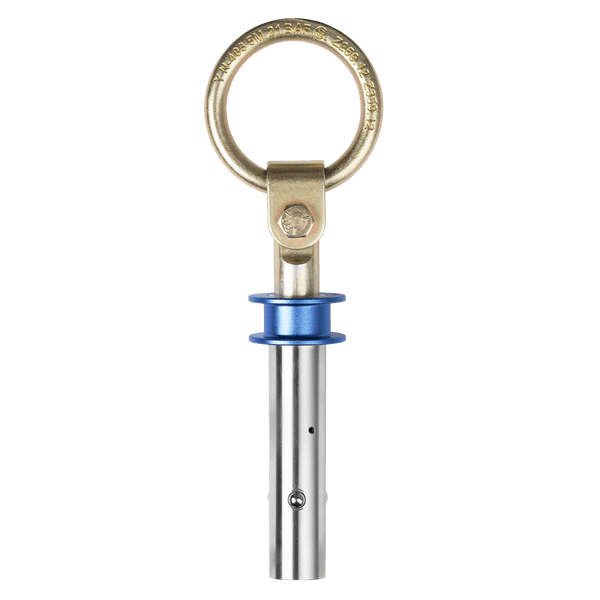

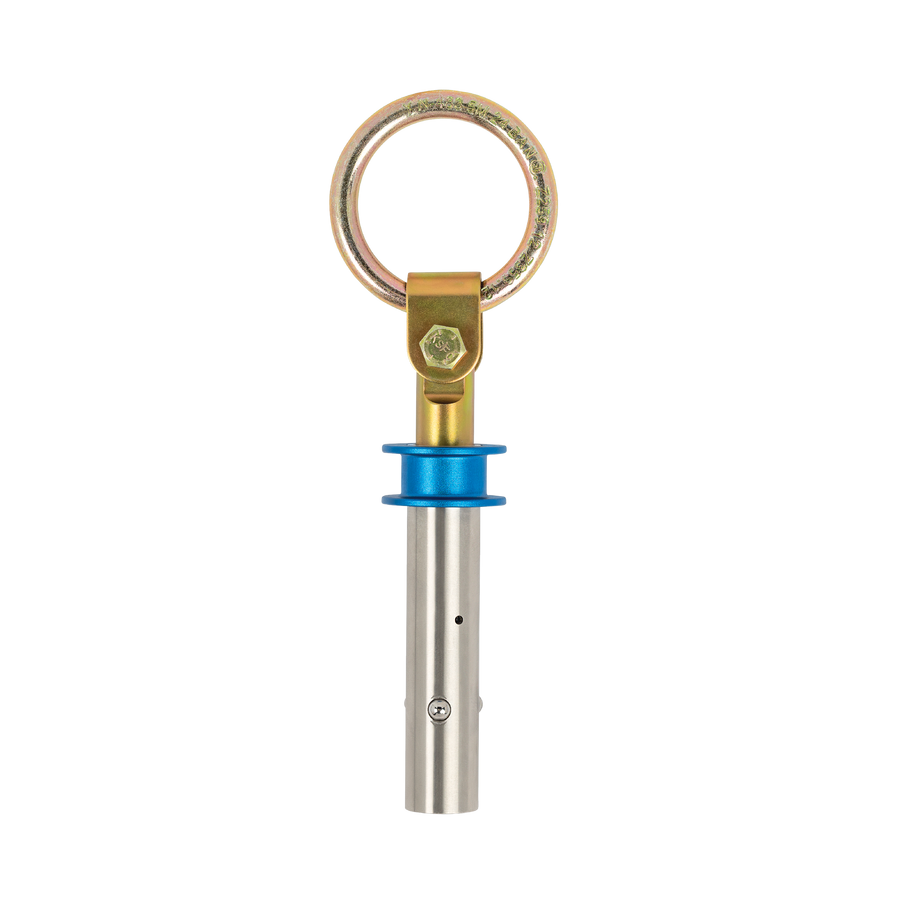

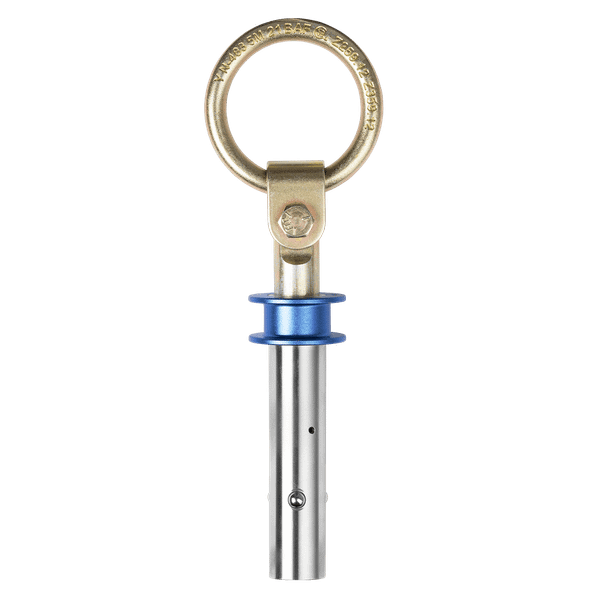

Removable Concrete Anchor, 6,000 lb

Name: Fall Tech
Address: 1306 S. Alameda St., Compton, CA 90221, Compton, CA, 90221, US
Telephone: (800) 719-4619

Contact Sales

This reusable concrete anchor provides a strong temporary tie-off solution for cured concrete walls and ceilings while supporting a wide range of fall protection and HLL applications.

Play

Downloads

Instruction Manual

Declaration of Conformity (ANSI)

Spec Sheet

Compliant With:

ANSI Z359.18-2017

OSHA 1926.502 and 1910.66

SKU:: 7446
UPC:: 848013019462
Relevant Standards 1:: ANSI Z359.18-2017
Filter - OSHA:: OSHA Compliant
Performance 2 Detail:: 130 to 310 lb max.
Descriptor 1:: Suitable for use with all HLLs
document name 2:: Declaration of Conformity
document name 1:: Instruction Manual
document file 2:: declarations_of_conformity/A0617064a_DOC.pdf
Product Type:: Expansion Wedge
Relevant Standards 2:: OSHA 1926.502 and 1910.66
Performance 3 Detail:: 130 to 425 lb max.
Other Items You May Need:: 8240, 7035B, 8209, 72706SB1
Performance 2 Header:: ANSI User Capacity
Performance 1 Header:: Static Strength
Filter - ANSI:: ANSI Compliant
category tier 2:: Concrete
video-link:: anGmjd08Ifg
Performance 3 Header:: OSHA User Capacity
1st Bullet:: Features forged O-ring connection point and 360 degree swiveling orientation
Filter - Anchor Type:: Expansion Wedge, 6,000 lb
Family Group:: Removable Concrete Anchor
5th Bullet:: Suitable for use with horizontal lifeline (HLL) systems, including all FallTech HLLs
Similar Solutions:: 7451A, 7451AC
Descriptor 2:: For cured concrete
document file 1:: instruction_manuals/MANC37_Rev_C_010423_EN_ES_FR.pdf
2nd Bullet:: Requires 4-1/2" min. hole depth and 1" max. hole diameter
4th Bullet:: For temporary use in cured concrete walls and ceilings
6th Bullet:: Complies with ANSI Z359.18-2017
Filter - Application:: Reusable
3rd Bullet:: Assembled with galvanized and stainless steel components
Performance 1 Detail:: 6,000 lb min.
Instruction Manual:: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/instruction_manuals/MANC37_Rev_C_010423_EN_ES_FR.pdf
Declaration of Conformity (ANSI):: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/declarations_of_conformity/A0617064a_DOC.pdf
BC Status:: Yes
Related Products:: 7451AC,7451A,8240,7035B,8209,72706SB1
