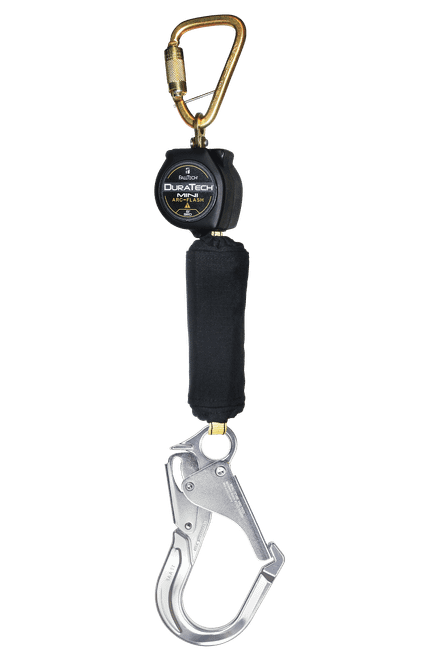

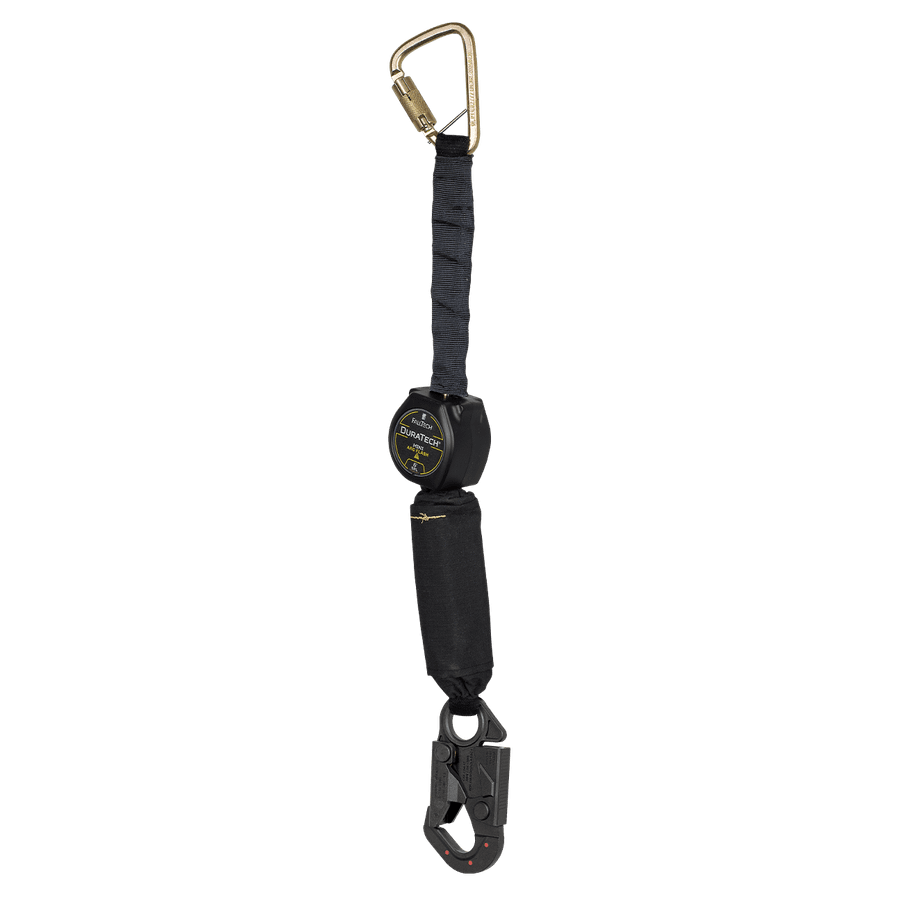

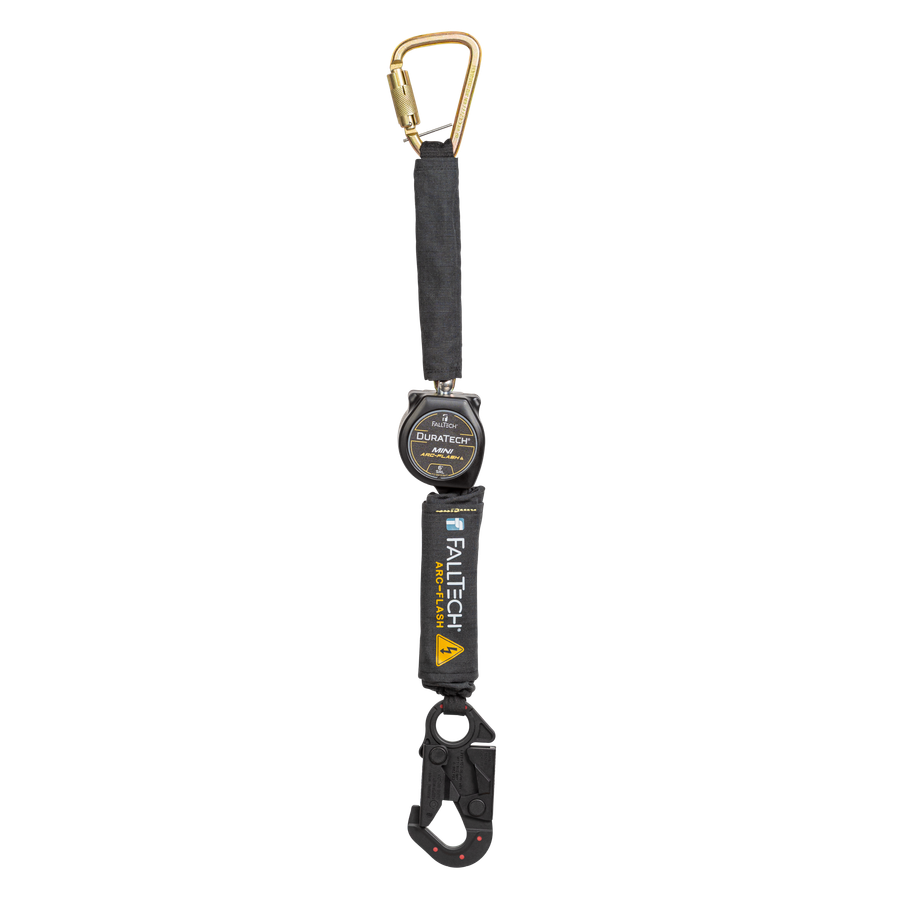

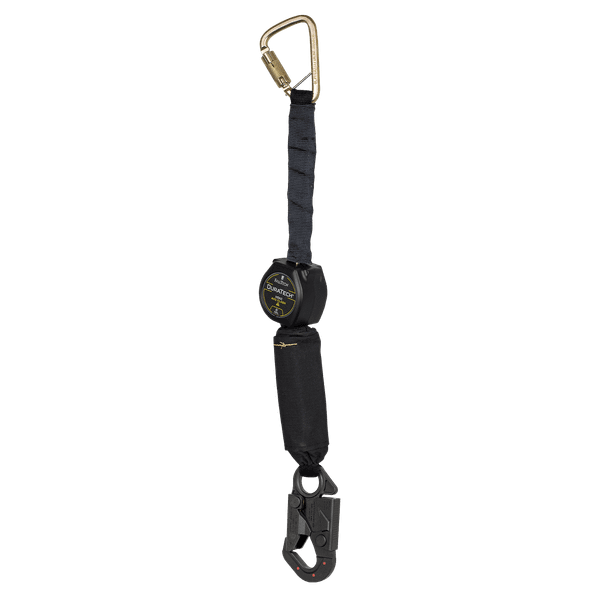

6' Arc Flash DuraTech® Mini Class 1 Personal SRL-P with Dielectric Dorsal Connecting Snap Hook and Steel Anchorage Carabiner

SKU:

72906SCD1L

UPC:

material 4 header:

Dorsal Connector

2nd bullet:

Energy absorber features Nomex® ViewPack® cover with inspection window and WrapPack label protection.

performance 2 detail:

Class 1 SRL-P

product type:

Class 1 Arc Flash SRL-P

filter - brand:

DuraTech® Mini

material 3 header:

Anchorage Connector

performance 3 detail:

900 lb

relevant standards 3:

ASTM F887-20

brand image:


other items you may need:

7047QC, 72496FT, 8209AF

plp icon - srl - length:

6'

filter - astm:

ASTM Compliant

document file 1:

instruction_manuals/MSRD40_Rev_C_102022_EN_ES.pdf

material 1 detail:

Kevlar®; 4,500 lb min.

category tier 2:

Personal SRLs

document name 2:

Declaration of Conformity

descriptor 1:

Steel 5k Carabiner

performance 3 header:

Avg. Arrest Force

performance 4 detail:

1,800 lb

filter - lifeline material:

Kevlar® Web

material 2 header:

Energy Absorber

performance 1 header:

Static Strength

filter - osha:

OSHA Compliant

filter - application:

Arc Flash

filter - personal srl anchorage connector material:

Plated Alloy Steel

7th bullet:

Includes dielectric dorsal connecting snap hook

6th bullet:

Features alloy steel carabiner anchorage connector with Kevlar® extension for lift connections

9th bullet:

Complies with ANSI Z359.14-20121 Class 1 SRL-P and ASTM F887-20. Learn more and download White Paper

8th bullet:

May be anchored up to 3' below the dorsal D-ring for user's weighing up to 310 lb max

descriptor 2:

Kevlar® Web Lifeline

material 3 detail:

Aluminum alloy; 5,000 lb min. static strength with 3,600 lb gate strength

relevant standards 1:

ANSI Z359.14-2021

filter - ansi:

ANSI Class 1 SRL-P Compliant

document file 2:

declarations_of_conformity/D0627050b_DOC.pdf

family group:

DuraTech® Mini Arc Flash Class 1 Personal SRL-P

document name 1:

Instruction Manual

document file 3:

sell_sheets/Utilities_Brochure_072022.pdf

category tier 3:

DuraTech® Mini

filter - configuration:

Single-leg

performance 5 header:

Max. Arrest Distance

filter - personal srl dorsal connector:

Dielectric Snap Hook

plp icon - srl - ansi class:

1

filter - length:

6'

performance 1 detail:

3,600 lb min.

performance 6 header:

ANSI User Capacity

ansi z359.14-2021 srl class 1 or 2:

Class 1

similar solutions:

72906SC6L

1st bullet:

Kevlar® web lifeline protects against Arc Flash hazards

4th bullet:

Nylon housing provides impact resistance in most worksite conditions

3rd bullet:

Features internal locking pawls and external energy absorber for even deceleration

5th bullet:

Plated steel swivel-eye helps to prevent lifeline twisting and provide smooth operation

material 1 header:

Webbing

performance 4 header:

Max. Arrest Force

filter - personal srl dorsal connector material:

Overmolded alloy steel

material 4 detail:

Plated alloy steel; 5,000 lb min. static strength with 5,000 lb gate strength

material 2 detail:

Polyester tear-away

document name 3:

Sell Sheet/Brochure

material 5 detail:

Overmolded alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength

performance 2 header:

ANSI SRL Class/Type

performance 5 detail:

42"

filter - srl type:

SRL-P

performance 7 detail:

130 to 310 lb max.

performance 7 header:

OSHA User Capacity

filter - personal srl anchorage connector:

Carabiner(s)

relevant standards 2:

OSHA 1926.502 and 1910.66

performance 6 detail:

130 to 310 lb max.
