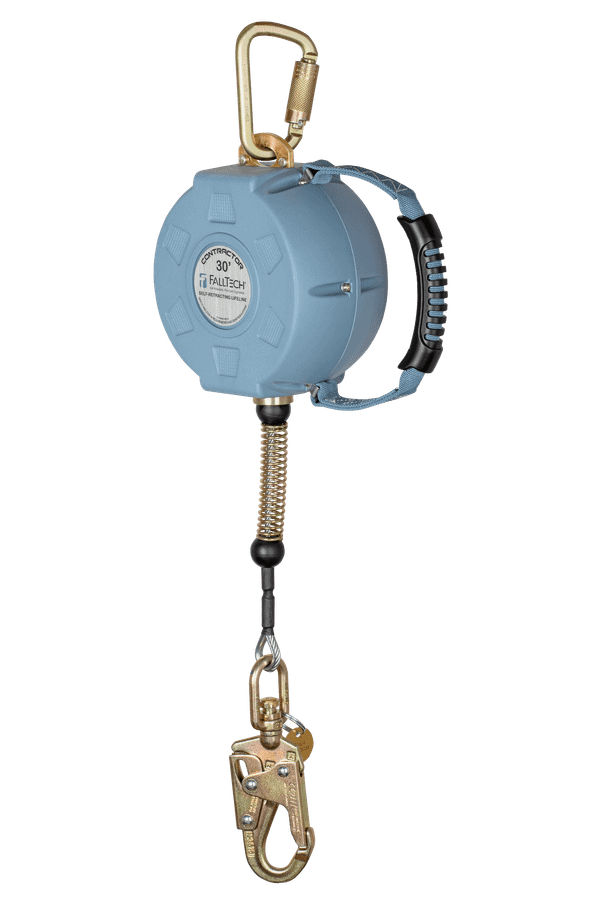

Contractor C Class 1 SRL with 30' Galvanized Cable and Anchorage Carabiner
Product Specifications
727630C
Contact Sales
Contractor C Class 1 SRL with 30' Galvanized Cable and Anchorage Carabiner
DOWNLOADS
Instruction Manual (ANSI)
Instruction Manual (CSA)
Declaration of Conformity (ANSI)
Declaration of Conformity (CSA)
Spec Sheet
Compliant With:
OSHA
1926.502 and 1910.66
ANSI
Z359.14-2021
Facebook
Email
Print
Twitter
Linkedin
Pinterest
(You save
)
SKU:
727630C
UPC:
descriptor 2:
Galvanized Steel Wire Rope Lifeline
category tier 2:
Overhead SRLs
ansi z359.14-2021 srl class 1 or 2:
Class 1
performance 7 header:
OSHA User Capacity
performance 5 detail:
42"
filter - overhead srl lifeline connector material:
Alloy Steel
relevant standards 2:
OSHA 1926.502 and 1910.66
performance 7 detail:
130 to 310 lb max.
performance 6 header:
ANSI User Capacity
filter - overhead srl anchorage connector material:
Alloy Steel
descriptor 1:
Steel Swivel Snap Hook
filter - overhead srl anchorage connector:
Carabiner
similar solutions:
727620, 727650C, 7276100, 7232C
category tier 3:
Contractor SRLs
document name 1:
Instruction Manual (ANSI)
size 2:
727630C - 30' (ANSI Compliant)
6th bullet:
Complies with ANSI Z359.14-2021 Class 1 SRL.
Learn more and download White Paper
5th bullet:
SRL includes double-locking twist-lock anchorage carabiner
4th bullet:
Rugged internal steel drum and inertial braking system deliver reliable performance
3rd bullet:
Lifeline includes recoil spring bumper to reduce retraction lock-up
plp icon - srl - length:
30'
other items you may need:
7372, 7428
2nd bullet:
Features glass-filled nylon housing for durable impact resistance.
size 1:
727620 -20' (ANSI Compliant)
document name 4:
Declaration of Conformity (CSA)
document file 3:
declarations_of_conformity/D0304047a_DOC.pdf
performance 1 header:
Static Strength
performance 1 detail:
3,600 lb min.
filter - brand:
Contractor
performance 3 detail:
900 lb
filter - length:
30'
document file 2:
instruction_manuals/CMSRL01_Rev_A_022120_EN_FR.pdf
document file 1:
instruction_manuals/MSRL01_Rev_F_102022_EN.pdf
filter - overhead srl lifeline connector:
Swivel Snap Hook
performance 3 header:
Avg. Arrest Force
relevant standards 1:
ANSI Z359.14-2021
size 5:
C727650 - 50' (CSA Compliant)
performance 2 header:
ANSI SRL Class/Type
performance 4 detail:
1,800 lb
filter - srl type:
SRL
size 4:
727650C - 50' (ANSI Compliant)
filter - lifeline material:
Galvanized Steel Cable
material 3 header:
Anchorage Connector
document name 2:
Instruction Manual (CSA)
product type:
Class 1 SRL
filter - ansi:
ANSI Class 1 SRL Compliant
plp icon - srl - ansi class:
1
material 2 header:
Lifeline Connector
material 1 header:
Cable
performance 5 header:
Max. Arrest Distance
parent part number:
727620
material 1 detail:
3/16" galvanized steel; 3,600 lb min. static strength
filter - osha:
OSHA Compliant
material 2 detail:
Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
size 6:
7276100 - 100' (ANSI Compliant)
performance 2 detail:
Class 1 SRL
performance 4 header:
Max. Arrest Force
size 3:
C727630 - 30' (CSA Compliant)
document file 4:
declarations_of_conformity/DC022005_DOC.pdf
1st bullet:
3/16" galvanized steel cable lifeline with load-indicating swivel snap hook
material 3 detail:
Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
family group:
Contractor Overhead Class 1 SRL
performance 6 detail:
130 to 310 lb max.
document name 3:
Declaration of Conformity (ANSI)
Current Stock:
×
×
