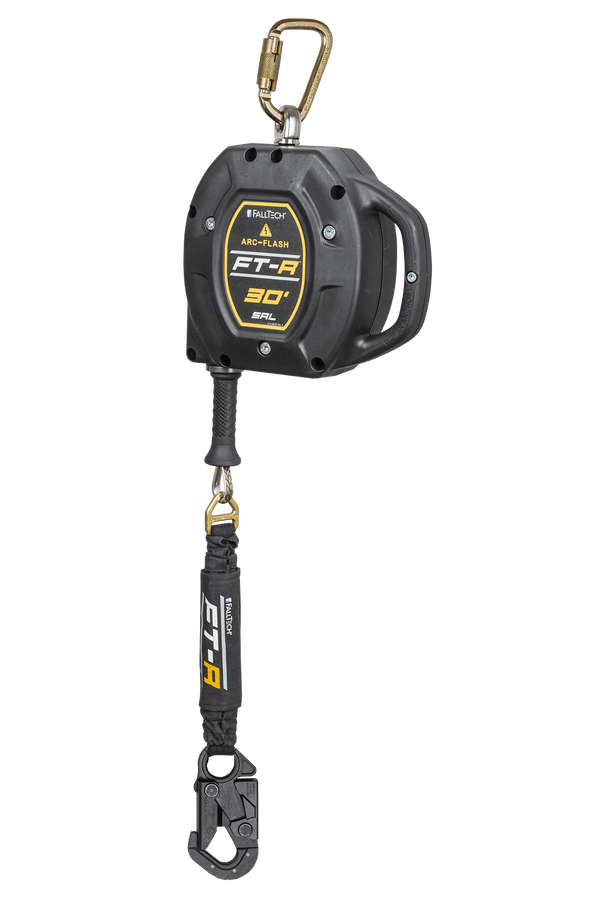

FT-R® Arc-Flash Class 1 SRL with 30' Technora Rope with Dielectric Snap Hook

Contact Sales

SKU:

721530TD1

UPC:

filter - overhead srl lifeline connector:

Dielecric Snap Hook

1st bullet:

1/4" Technora® synthetic rope line constituent includes 9kV dielectric coated steel snap hook

filter - brand:

FT-R® Arc Flash

material 2 detail:

Polyester tear-away

material 3 detail:

Overmolded alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength

filter - application:

Arc Flash

other items you may need:

8077FDQC, 7050FD, 7372, 72494FT

family group:

FT-R® Arc Flash Class 1 SRL

material 1 header:

Lifeline

performance 1 detail:

3,600 lb min.

category tier 2:

Arc Flash SRLs

similar solutions:

721530LE, 72906SCD1L, 72906SC1, 82911SC1

performance 3 detail:

1,350 lb max.

performance 4 detail:

1,800 lb

6th bullet:

Includes steel anchorage carabiner with 3/4" gate opening

7th bullet:

Complies with ANSI Z359.14-2021 Class 1 SRL. Learn more and download White Paper

product type:

Class 1 Arc Flash SRL

material 4 header:

Anchorage Connector

document file 1:

instruction_manuals/MSRD27_Rev_B_013125_EN.pdf

5th bullet:

Industry first UV-resistant and scratch resistant label keep warnings legible and units in service

ansi z359.14-2021 srl class 1 or 2:

Class 1

material 3 header:

Lifeline Connector

material 1 detail:

1/4" Technora® rope; 3,600 min. static strength

filter - overhead srl anchorage connector material:

Alloy Steel

filter - lifeline material:

Technora® Rope

relevant standards 3:

ASTM F887-20

performance 5 header:

Max. Arrest Distance

performance 6 detail:

130 to 310 lb max.

document name 1:

Instruction Manual

performance 7 header:

OSHA User Capacity

filter - ansi:

ANSI Class 1 SRL Compliant

document name 2:

Declaration of Conformity

document file 2:

declarations_of_conformity/D0216067_DOC.pdf

category tier 3:

FT-R®

material 4 detail:

Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength

performance 5 detail:

42"

plp icon - srl - ansi class:

1

performance 7 detail:

130 to 310 lb max.

performance 3 header:

Avg. Arrest Force

filter - astm:

ASTM Compliant

3rd bullet:

Improved internal mechanism design minimizes unintentional lockups to keep workers moving freely and productively

plp icon - srl - length:

30'

filter - overhead srl lifeline connector material:

Overmolded Alloy Steel

document file 3:

sell_sheets/Utilities_Brochure_022026.pdf

filter - osha:

OSHA Compliant

performance 2 header:

ANSI SRL Class/Type

performance 4 header:

Max. Arrest Force

material 2 header:

Energy Absorber

filter - srl type:

SRL

performance 1 header:

Static Strength

performance 2 detail:

Class 1 SRL

4th bullet:

Swiveling anchor plus an integrated carrying handle simplify installation and transportation

2nd bullet:

Innovative energy absorber design provides more consistent performance in all environmental conditions and features Kevlar®/Nomex® cover for arc flash protection

filter - length:

30'

parent part number:

721530T

descriptor 1:

9kV Dielectric Snap Hook

filter - overhead srl anchorage connector:

Carabiner

relevant standards 1:

ANSI Z359.14-2021

descriptor 2:

Technora® Rope Lifeline

relevant standards 2:

OSHA 1926.502 and 1910.66

8th bullet:

Tested to ASTM F887

performance 6 header:

ANSI User Capacity
