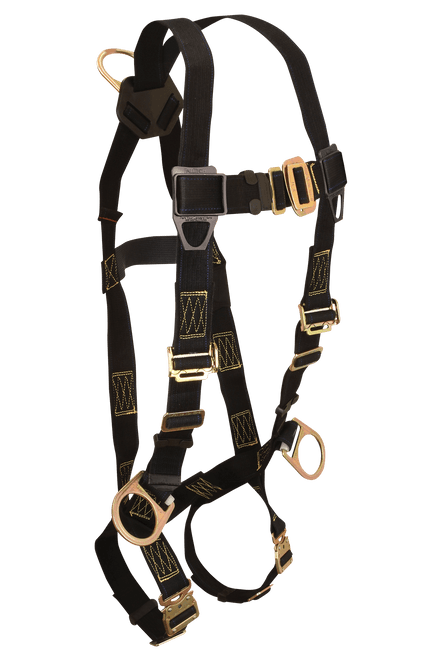

WeldTech® 1D Standard Kevlar® Non-belted Full Body Harness, Tongue Buckle Leg Adjustment

SKU:

7036A

UPC:

filter - buckles and adjusters:

Tongue Buckle Legs and Quick-connect Chest

material 1 header:

Webbing

filter - d-ring connecting elements:

Dorsal

3rd bullet:

Uniquely grommeted Kevlar® leg straps feature 9 adjustment positions for an expanded range of fit

8th bullet:

Complies with ANSI Z359.11-2014

material 1 detail:

Kevlar®; 5,000 lb min. static strength

plp icon - fbh - d-rings:

1

document name 1:

Instruction Manual

family group:

WeldTech®

descriptor 1:

1 D-Ring: Dorsal

performance 2 header:

ANSI User Capacity

other items you may need:

8242, 8243, 7245

similar solutions:

7037, 7039

4th bullet:

Friction roller torso adjusters provide simple upper-body adjustment

size 3:

7036A2X - 2X

6th bullet:

Quick-connect buckle features visual indicators showing positive connection

material 2 header:

D-ring

relevant standards 3:

CSA Z259.10-2018

material 3 header:

Buckles and Adjusters

category tier 2:

Full Body Harnesses

document file 4:

sizing_charts/FallTech_Harness_Sizing_Chart_Men_2025.pdf

7th bullet:

Tongue buckle legs are uniquely equipped with 9 grommeted adjustment positions for a wider range of fit

size 1:

7036A - UniFit (S, M, L)

filter - webbing material:

Kevlar®

performance 3 header:

OSHA User Capacity

category tier 3:

WeldTech®

relevant standards 1:

ANSI Z359.11-2021

performance 2 detail:

130 to 310 lb max.

product type:

Non-Belted Full Body Harness

filter - csa:

CSA Compliant

material 3 detail:

Plated alloy steel; 3,372 lb min. static strength

filter - osha:

OSHA Compliant

filter - ansi:

ANSI Compliant

plp icon - fbh - leg connection:

TB

performance 1 header:

Static Strength

performance 3 detail:

130 to 425 lb max.

document name 2:

Declaration of Conformity

filter - hardware material:

Plated Alloy Steel

document name 3:

Declaration of Conformity (CSA)

filter - application:

Fall Arrest, 1D

performance 1 detail:

3,600 lb min.

document file 2:

declarations_of_conformity/B0318131b_DOC.pdf

document file 1:

instruction_manuals/MFBH04_Rev_E_050525_EN_ES_FR.pdf

filter - configuration:

Non-Belted

filter - brand:

WeldTech®

descriptor 2:

Tongue Buckle Leg Adjustment

document name 4:

Harness Sizing Chart

parent part number:

7036A

size 2:

7036AXL - XL

1st bullet:

Features Kevlar® webbing throughout shoulders, torso, and legs

relevant standards 2:

OSHA 1926.502 and 1910.140

document file 3:

declarations_of_conformity/BC1019027_DOC.pdf

5th bullet:

D-ring, quick connect chest, and tongue buckle leg closures are all durably finished with plated alloy steel construction

material 2 detail:

Plated alloy steel; 5,000 lb min. static strength

2nd bullet:

Kevlar® webbing delivers the highest level of burn and spatter resistance common in hot-work welding applications.

sizes available:

3 sizes available
