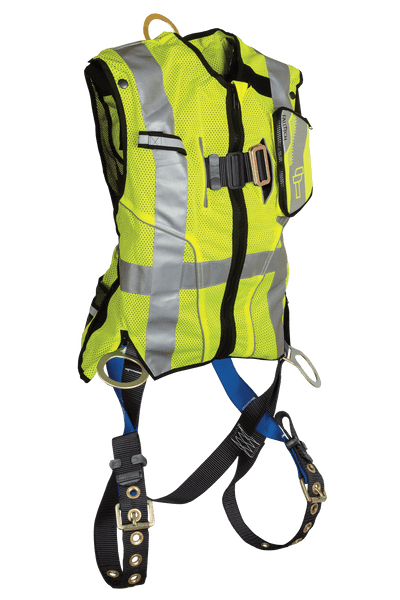

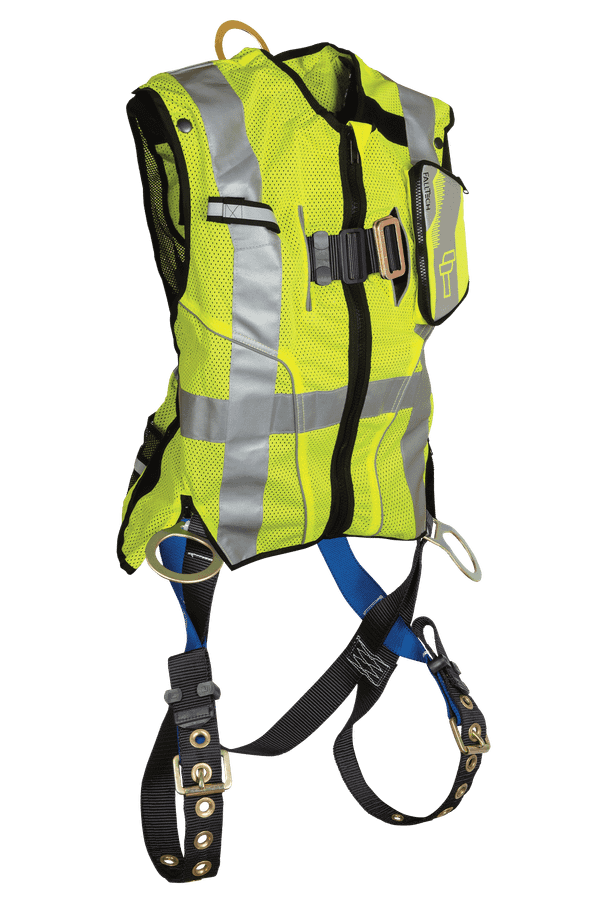

Hi-Vis Lime Class 2 Vest with 3D Standard Non-belted Full Body Harness

Name: Fall Tech
Address: 1306 S. Alameda St., Compton, CA 90221, Compton, CA, 90221, US
Telephone: (800) 719-4619

Contact Sales

Designed for construction applications, this integrated vest and full-body harness combine for enhanced visibility with dependable fall protection in a streamlined, easy-to-wear design.

Downloads

Instruction Manual

Declaration of Conformity (ANSI)

Declaration of Conformity (CSA)

Sizing Chart

Spec Sheet

Compliant With:

ANSI Z359.11-2014

OSHA 1926.502 and 1910.140

CSA Z259.10-2018

SKU:: 7018LXL
UPC:: 848013014405
Filter - Buckles and Adjusters:: Tongue Buckle Legs and Mating Buckle Chest
2nd Bullet:: Harness features dorsal and hip D-rings with tongue buckle leg and mating buckle chest closures.
3rd Bullet:: Durable day-bright mesh and ripstop fabric construction with Class 2 reflectivity plus two rear and one zippered front pocket
Material 1 Detail:: Polyester; 5,000 lb min. static strength
document name 1:: Instruction Manual
Material 3 Header:: Buckles and Adjusters
Similar Solutions:: 7015LXL, 7018LXO
document file 1:: instruction_manuals/MFBH04_Rev_E_050525_EN_ES_FR.pdf
Material 2 Header:: D-rings
Filter - CSA:: CSA Compliant
Filter - Hardware Material:: Plated Alloy Steel
Filter - Webbing Material:: Polyester
Performance 3 Header:: OSHA User Capacity
category tier 3:: High-Vis Vest
Material 3 Detail:: Plated alloy steel; 3,372 lb min. static strength
Performance 1 Header:: Static Strength
document name 2:: Declaration of Conformity
Filter - Configuration:: Non-Belted
document file 2:: declarations_of_conformity/B0804158a_DOC.pdf
document name 4:: Harness Sizing Chart
Filter - Application:: Fall Arrest and Work Positioning, 3D
Material 1 Header:: Webbing
PLP Icon - FBH - D-Rings:: 3
Product Type:: Non-Belted Full Body Harness
Performance 2 Header:: ANSI User Capacity
4th Bullet:: Vest-cut design improves user's access to belt buckle and pants pockets
5th Bullet:: Integrated zippered side vents provide accessibility to hip D-rings
6th Bullet:: Vest features internal donning fasteners and loops for removable integration with harness straps
category tier 2:: Full Body Harnesses
7th Bullet:: Tongue buckle legs are uniquely equipped with 9 grommeted adjustment positions for a wider range of fit
PLP Icon - FBH - Leg Connection:: TB
Performance 3 Detail:: 130 to 425 lb max.
Performance 2 Detail:: 130 to 310 lb max.
Material 2 Detail:: Plated alloy steel; 5,000 lb min. static strength
document name 3:: Declaration of Conformity (CSA)
Descriptor 1:: 3 D-Rings: Dorsal, Hip
Filter - OSHA:: OSHA Compliant
Filter - ANSI:: ANSI Compliant
document file 4:: sizing_charts/FallTech_Harness_Sizing_Chart_Men_2025.pdf
Other Items You May Need:: 8259, 7372, 72706SB1, 8250LT
Descriptor 2:: Tongue Buckle Leg Adjustment
Filter - D-Ring Connecting Elements:: Dorsal and Hip
parent part number:: 7018LXL
Family Group:: Hi-Vis Vest Harness
1st Bullet:: Includes ANSI Class 2 high-visibility safety vest with integrated Contractor #7018-series harness
Performance 1 Detail:: 3,600 lb min.
document file 3:: declarations_of_conformity/BC1019001b_DOC.pdf
8th Bullet:: Complies with ANSI Z359.11-2014
Sizes Available:: 3 sizes available
Instruction Manual:: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/instruction_manuals/MFBH04_Rev_E_050525_EN_ES_FR.pdf
Declaration of Conformity (ANSI):: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/declarations_of_conformity/B0804158a_DOC.pdf
Declaration of Conformity (CSA):: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/declarations_of_conformity/BC1019001b_DOC.pdf
Sizing Chart:: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/sizing_charts/FallTech_Harness_Sizing_Chart_Men_2026.pdf
BC Status:: Yes
Related Products:: 7015LXL,7018LXO,8259,7372,72706SB1,8250LT
Sizing Chart Image:: https://images.salsify.com/image/upload/s--9lA_GNgw--/xmkebx4xbkyvk1aqaia3.jpg
Size 1:: 7018SML - Small/Med Vest with UniFit Harness
Size 2:: 7018LXL - Large/XL Vest with UniFit Harness
Size 3:: 70182X3XL - 2X/2X Vest with 2X/3X Harness
Size 4:: 70182X3XL - 2X/2X Vest with 2X/3X Harness
Relevant Standards 1:: ANSI Z359.11-2014
Relevant Standards 2:: OSHA 1926.502 and 1910.140
Relevant Standards 3:: CSA Z259.10-2018
BC Category:: 126
