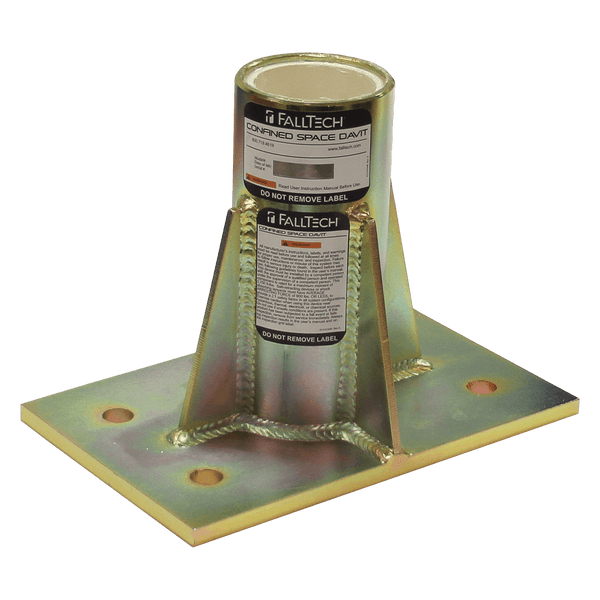

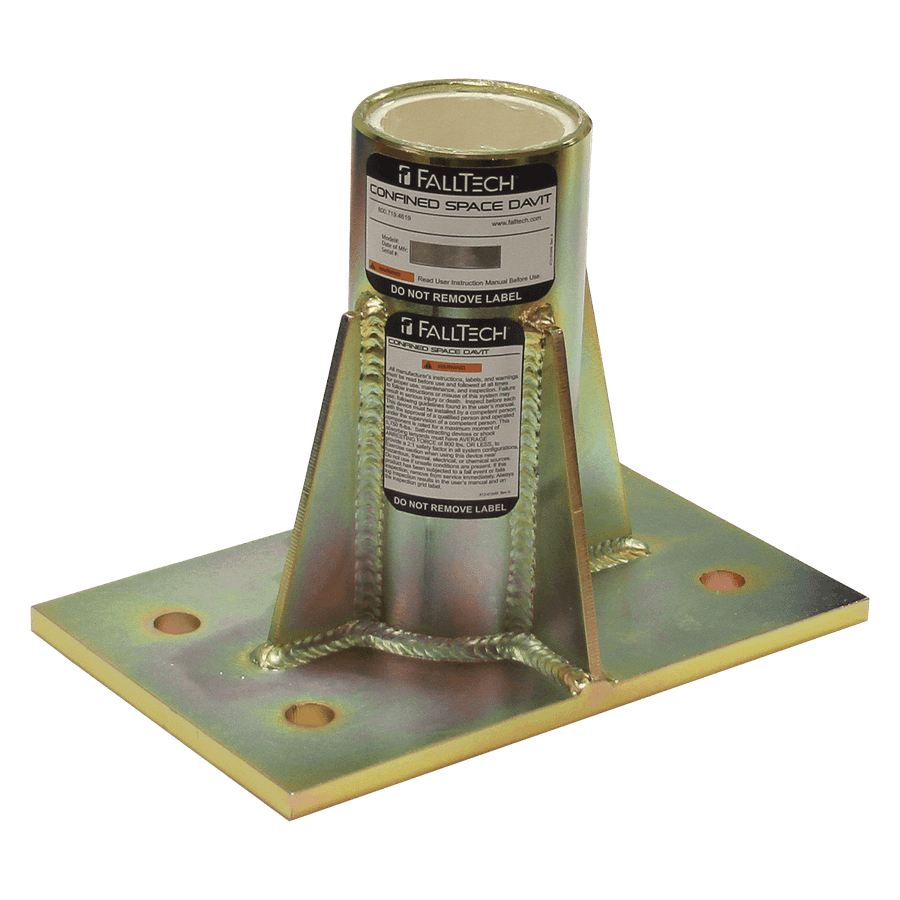

Center-mount Plated Steel Bolt-on Fixed Davit Base

Name: Fall Tech
Address: 1306 S. Alameda St., Compton, CA 90221, Compton, CA, 90221, US
Telephone: (800) 719-4619

Contact Sales

Designed for permanent confined space access locations, this plated steel davit base creates a durable anchorage point for repeated entry and retrieval operations.

Downloads

Instruction Manual

Declaration of Conformity (OSHA)

Brochure

Sell Sheet/Brochure

Spec Sheet

Compliant With:

OSHA 1926.502 and 1910.66 when used in a complete system

SKU:: 65040CMZ
UPC:: 848013032059
document name 2:: Declaration of Conformity
document name 3:: Sell Sheet/Brochure
document name 1:: Instruction Manual
Similar Solutions:: 65040CMS, 65060FMZ
Material 2 Header:: Sleeve Insert
Performance 3 Header:: Mast Rotation
2nd Bullet:: Bolt-on design for existing steel and concrete installation.
Family Group:: Fixed Davit Base
Performance 1 Header:: Rated Capacity
3rd Bullet:: Rugged 8" x 12" plate provides long lasting fixed base solution
document file 2:: declarations_of_conformity/S0917014_DOC.pdf
1st Bullet:: Permanently installed davit base solution for is ideally suited for recurrent access locations
Other Items You May Need:: 6500128, 6500244, 6500657, 6500433
Performance 2 Detail:: 6,167 ft. lb
Performance 3 Detail:: 360°
Relevant Standards 1:: OSHA 1926.502 and 1910.66 when used in a complete system
Filter - OSHA:: OSHA Compliant
Descriptor 1:: Plated steel construction
document file 3:: sell_sheets/Confined_Space_Brochure_09112020.pdf
Filter - Davit Systems and Base:: Fixed and Portable Davit Bases
Performance 1 Detail:: 620 lb at minimum 4:1 design factor
Material 2 Detail:: PVC pipe
Material 1 Detail:: Plated carbon steel
category tier 2:: Davit Systems and Bases
Performance 2 Header:: Mast Moment Proof Load
Product Type:: Center-mount Bolt-on
7th Bullet:: Meets OSHA 1926.502 regulations only when used with offset davit arms and mast extensions
Material 1 Header:: Davit Base
4th Bullet:: 9" deep sleeve with PVC insert deliver secure anchoring point for davit arm and mast attachment
document file 1:: instruction_manuals/MCS34_Rev_A.pdf
6th Bullet:: User-supplied fasteners required for installation
5th Bullet:: Plated steel construction throughout; also available in stainless steel
Instruction Manual:: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/instruction_manuals/MCS34_Rev_A.pdf
Declaration of Conformity (OSHA):: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/declarations_of_conformity/a516ad54991945fd4bdf763cd28cf152e414fb50.pdf
Brochure:: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/sell_sheets/Confined_Space_Brochure_09112020.pdf
BC Status:: Yes
Related Products:: 65040CMS,65060FMZ
BC Category:: 126

1306 S. Alameda St., Compton, CA 90221 | (800) 719-4619 | www.falltech.com 07/15/2026

Center-mount Plated Steel Bolt-on Fixed Davit Base

Downloads

Compliant With:

Similar Products to 65040CMZ

Center-mount Stainless Steel Bolt-on Fixed Davit Base

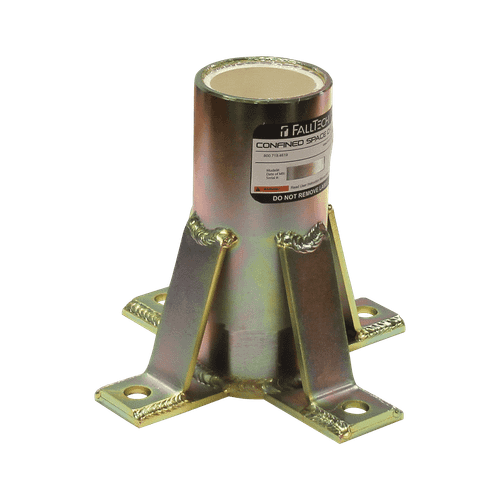

Floor-mount Plated Steel Bolt-on Fixed Davit Base
