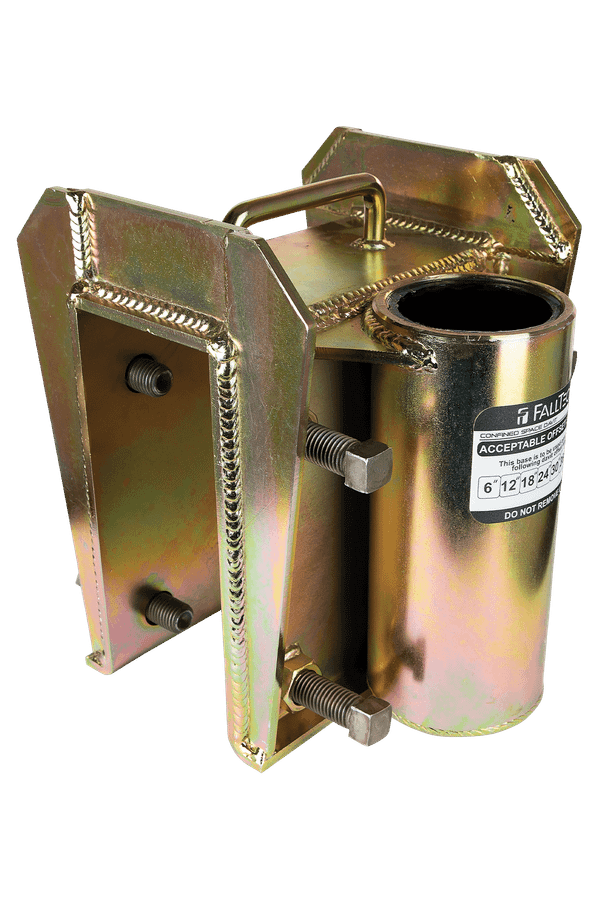

Barrel Mount Davit Base

Name: Fall Tech
Address: 1306 S. Alameda St., Compton, CA 90221, Compton, CA, 90221, US
Telephone: (800) 719-4619

Contact Sales

This bolt-on davit base provides a durable, portable mounting solution for confined space davit systems on walls, edges, and other properly rated structures.

Downloads

Instruction Manual

Declaration of Conformity (OSHA)

Brochure

Spec Sheet

Compliant With:

OSHA 1926.502 and 1910.66 when used in a complete system

SKU:: 65012F
UPC:: 848013075314
Filter - OSHA:: OSHA Compliant
Similar Solutions:: 65040CMS, 6501528, 65060FMS
Material 2 Header:: Sleeve Insert
Performance 3 Header:: Rescue User Capacity
2nd Bullet:: Designed for use with FallTech® 29" and 44" Offset Davit Arms and one of four lower mast extensions.
Performance 4 Detail:: 1 user, 310 lb max.
Family Group:: Barrel Mount Davit Base
Performance 1 Header:: Rescue Static Strength
3rd Bullet:: Plated steel construction with PVC sleeve insert and integral carry handle for portability
1st Bullet:: Features bolt-on installation to existing edges, walls and other properly rated structures up to 3-1/2"" thick
Other Items You May Need:: 650124MH, 6500128, 6500244, 6500657, 6500433
Performance 2 Detail:: 1,800 lb min.
Performance 4 Header:: Entry/Egress Capacity
Performance 3 Detail:: 2 users, 310 lb max. for each person
Relevant Standards 1:: OSHA 1926.502 and 1910.66 when used in a complete system
Descriptor 1:: Bolt-on installation
Filter - Davit Systems and Base:: Fixed and Portable Davit Bases
Material 1 Detail:: Plated carbon steel
Material 2 Detail:: PVC pipe
category tier 2:: Davit Systems and Bases
Product Type:: Plated Steel construction
Performance 2 Header:: Entry/Egress Static Strength
Performance 1 Detail:: 6,750 lb min.
Material 1 Header:: Davit Base
4th Bullet:: Includes 8 pcs 3/4" x 3" square head set screws for securing to structure
5th Bullet:: Meets OSHA 1926.502 regulations only when used with offset davit arms and mast extensions
Instruction Manual:: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/instruction_manuals/MCS40_Rev_B_022019.pdf
Declaration of Conformity (OSHA):: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/declarations_of_conformity/815899cdc2a8e949ac857add0f46286093a80060.pdf
Brochure:: https://cdn11.bigcommerce.com/s-1wxw1202sk/content/product_documents/sell_sheets/Confined_Space_Davit_Solutions_Brochure_062019.pdf
BC Status:: Yes
Related Products:: 650124MH
BC Category:: 126

1306 S. Alameda St., Compton, CA 90221 | (800) 719-4619 | www.falltech.com 07/28/2026

Barrel Mount Davit Base

Downloads

Compliant With:

Similar Products to 65012F

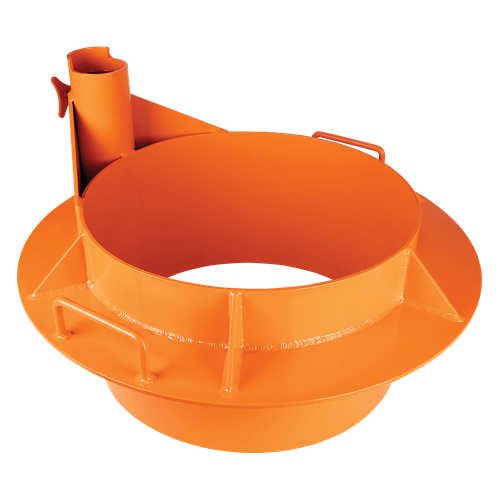

Manhole Collar Davit Base for 22" to 24" Openings
